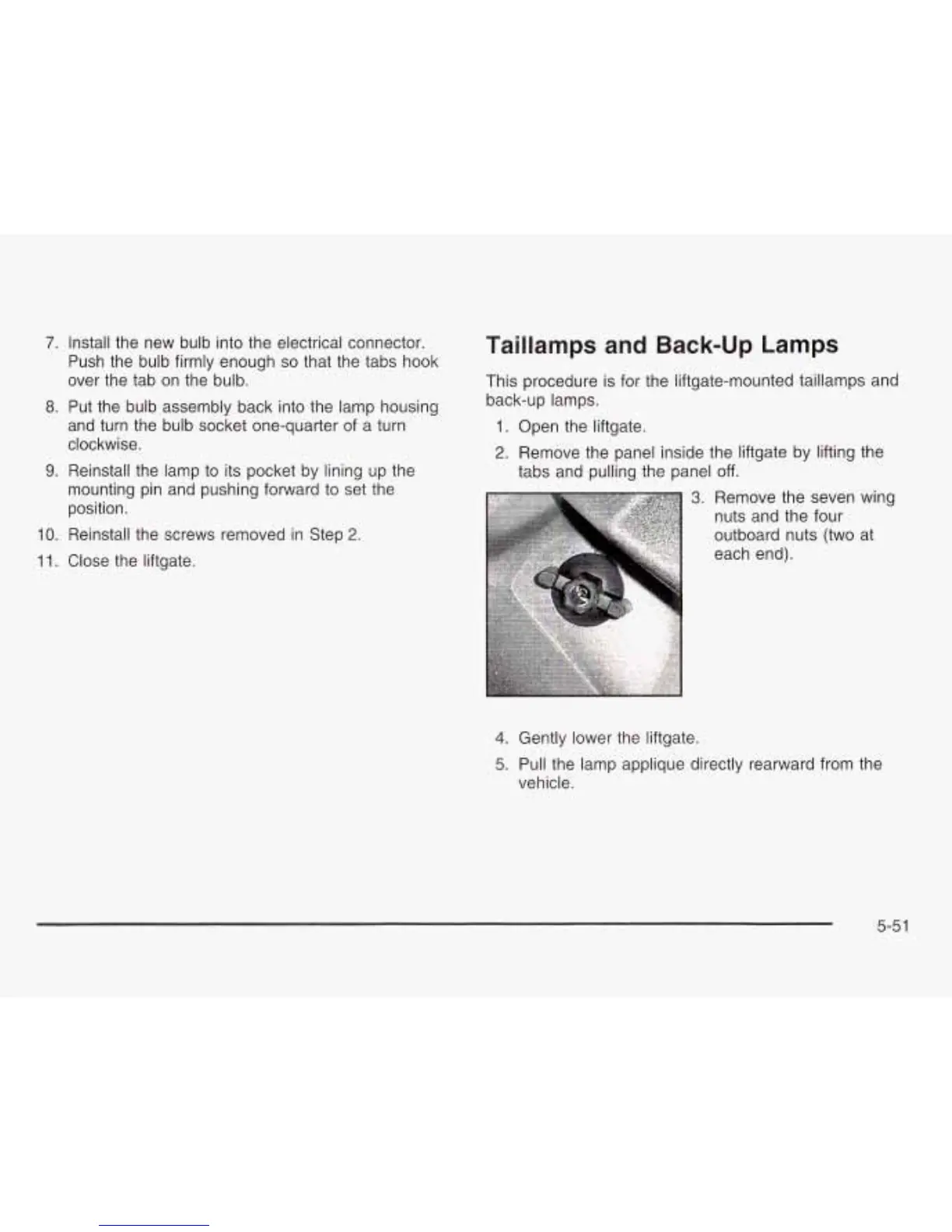

7.
Install the new bulb into the electrical connector.
Push the bulb firmly enough
so
that the tabs hook
over the tab on the bulb.
8.
Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
clockwise.
9. Reinstall the lamp to its pocket by lining up the
mounting pin and pushing forward to set the
position.
10.
Reinstall the screws removed in Step
2.
11.
Close the liftgate.
Taillamps and Back-up Lamps
This procedure is for the liftgate-mounted taillamps and
back-up lamps.
1.
Open the liftgate.
2.
Remove the panel inside the liftgate by lifting the
tabs and pulling the panel
off.
3.
Remove the seven
nuts and the four
outboard nuts (two
each end).
wing
at
4.
Gently lower the liftgate.
5.
Pull the lamp applique directly rearward from the
vehicle.
5-51
