SITE REQUIREMENTS
EXAMPLE
• 208VAC circuit (voltage range +5/-10%)
• Dedicated 30-amp circuit: cord cap, receptacle, and breaker
• Machine is supplied with a power cord (PN 46908.0002) AWG 10/3 30A/250V
with Plug L1, L2, G.
NOTE: (N) no neutral wire/conductor used.
• Receptacle within 4.5 feet (1.4 meters) of the machine. (Note: the length of the power cord is
regulated by the machine’s UL certification; the length and type of cord cannot be substituted.)
• Machine total amp draw 24.0 amps at 208VAC
• Determine the available on-site electrical service.

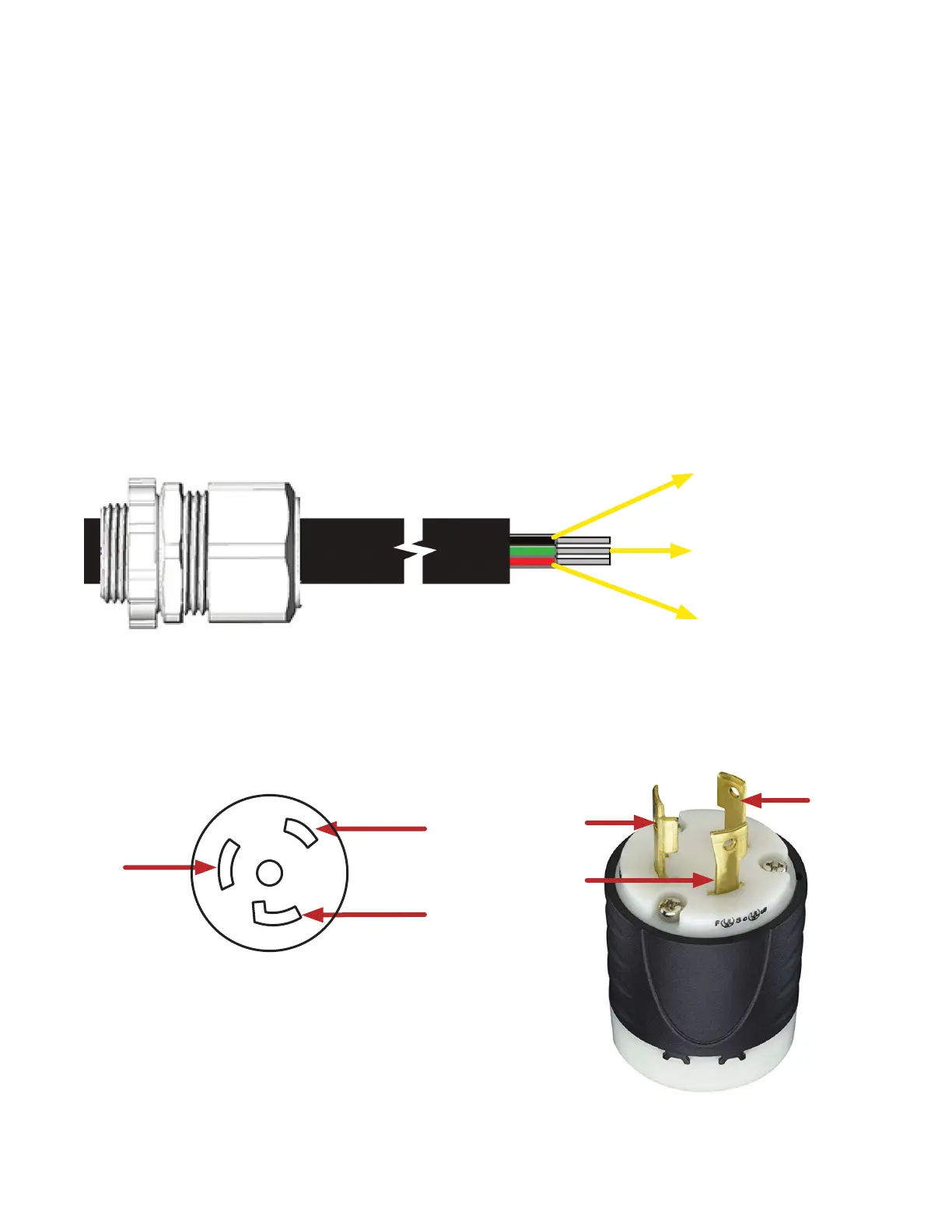

BLACK (L1)
GREEN (Ground)
RED or WHITE (L2)
Receptacle
Panel Strain Relief
L2
L1
G
Voltmeter
L1 - L2 208VAC
L1 - G 120VAC
L2 - G 120VAC
Power Cord, 10/3 30A/250V
NEMA L6-30P
NEMA L6-30R
Plug
BLACK
RED
or
WHITE
GREEN
Electrical Configuration
