SmartWAVE
®
Training Manual
20

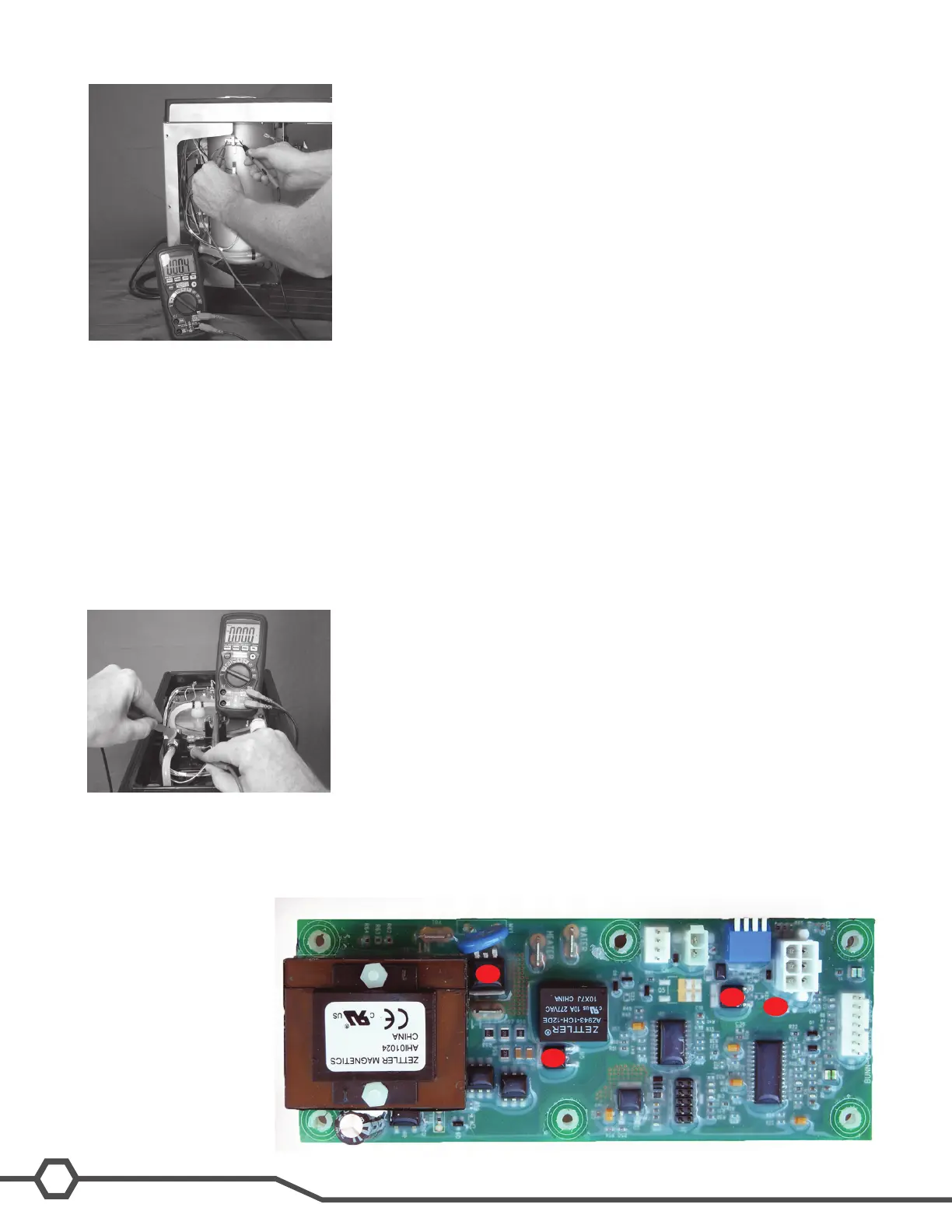

Check for continuity through the high-limit thermostat.
Check the resistance of the heating element. It should read approximately 10-11 ohms.
Dispensing System
Not Brewing
During the brew process, the inlet solenoid valve receives approximately 120VAC from the control board, check
voltage at the valve. Remove the wires from the valve and measure the resistance of the valve coil, it should read ap-
proximately 1400ohms.
No Wave
Check the vent valve and air pump both components receive 12VDC from the control board.
Brew Basket Overowing
Check the sprayhead tube and sprayhead for scale build-up.
Switching Component Map
1. TH1 = Heater
2. Q2 = Air Pump
3. Q4 = Vent Valve
4. Q8 = Inlet Valve
