Burkert 2300 - Page 19

19
Technical data
Flow values for DN40 - Actuator size ø 90
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.47 60 21.5
10 0.62 70 25.3
20 1.1 80 28.8
30 2.6 90 31.6
40 10.0 100 34.0
50 17.0

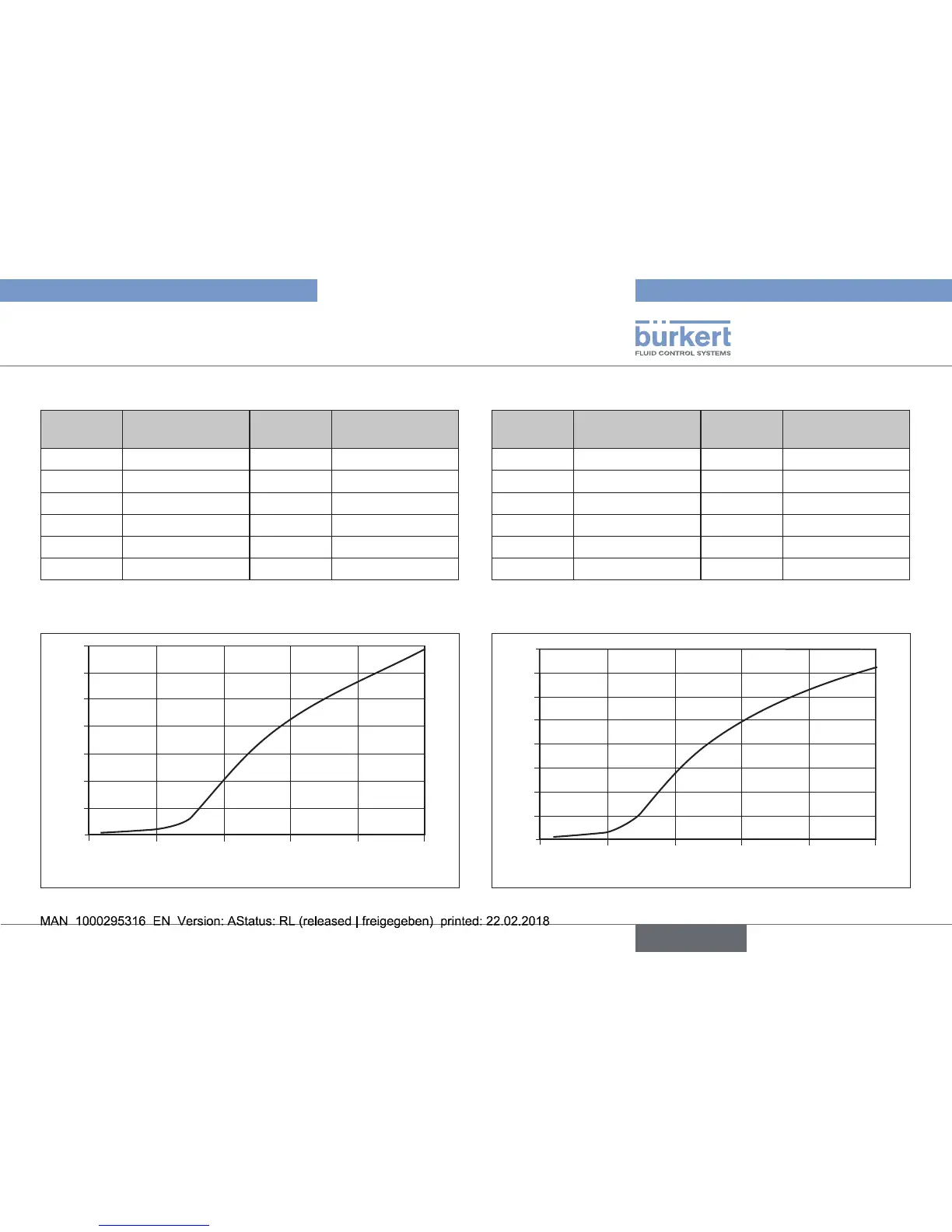

Tab. 11: Flow values for DN40 - Actuator size ø 90
Flow characteristics for DN40 - Actuator size ø 90
Stroke [%]
Kv [m
3
/h]
0
35
30
25
20
15
10
5
0
20
40 60 80
100
Fig. 11: Flow characteristics for DN40 - Actuator size ø 90
Flow values for DN40 - Actuator size ø 130
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.48 60 24.3
10 0.66 70 28.3
20 1.4 80 31.7
30 5.1 90 34.5
40 14.0 100 36.0
50 20.0
Tab. 12: Flow values for DN40 - Actuator size ø 130
Flow characteristics for DN40 - Actuator size ø 130
Stroke [%]
Kv [m
3
/h]
0
35
30
25
20
15
10
5
0
20
40 60 80
100
40
Fig. 12: Flow characteristics for DN40 - Actuator size ø 130
english
Type 2300
