Technical data
Flow values for DN50 - Actuator size ø 90
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.85 60 28.6
10 1.1 70 35.6
20 1.6 80 40.6
30 2.7 90 45.0
40 10.2 100 49.0
50 20.0
Tab. 13: Flow values for DN50 - Actuator size ø 90

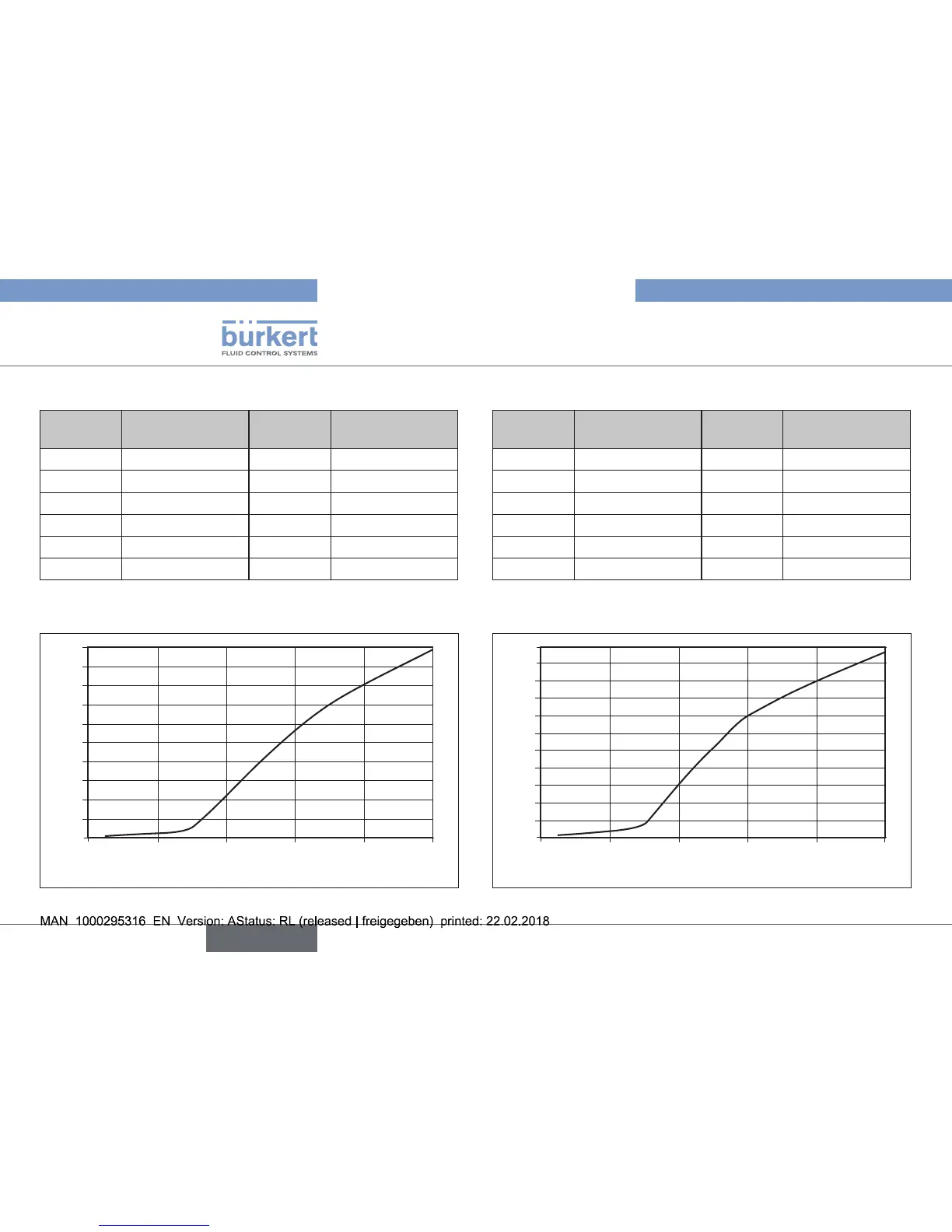

Flow characteristics for DN50 - Actuator size ø 90
Stroke [%]
Kv [m
3
/h]
0
50
45
40
35
30
25
20
15
10
5
0
20
40 60 80
100
Fig. 13: Flow characteristics for DN50 - Actuator size ø 90
Flow values for DN50 - Actuator size ø 130
Stroke
[%]
Kv value [m
3
/h]
Stroke
[%]
Kv value [m
3
/h]
5 0.87 60 35.0
10 1.2 70 40.3
20 1.8 80 45.0
30 4.0 90 48.0
40 15.2 100 53.0
50 26.0
Tab. 14: Flow values for DN50 - Actuator size ø 130
Flow characteristics for DN50 - Actuator size ø 130
Stroke [%]
Kv [m
3
/h]
0
0
20
40 60 80
100
20
5
10
15
25
30
35
40
45
50
55
Fig. 14: Flow characteristics for DN50 - Actuator size ø 130
