Installation
7.6. Manual actuation of the actuator
via pilot valve
Theactuatorcanbemovedwithoutapowersupplyfromtherest
positiontoitsendpositionandbackagain,whenthecontrolairis
connected.
Todothis,thepilotvalvemustbeactuatedwithascrewdriver.
NOTE!
The hand lever may be damaged if it is simultaneously
pressed and turned.
▶ Donotpressthehandleverwhenturningit.
Pilot valve non
activated
(normal position)
Handlever
Handlever
totheleft
Pilot valve
activated
Handlever
to the right

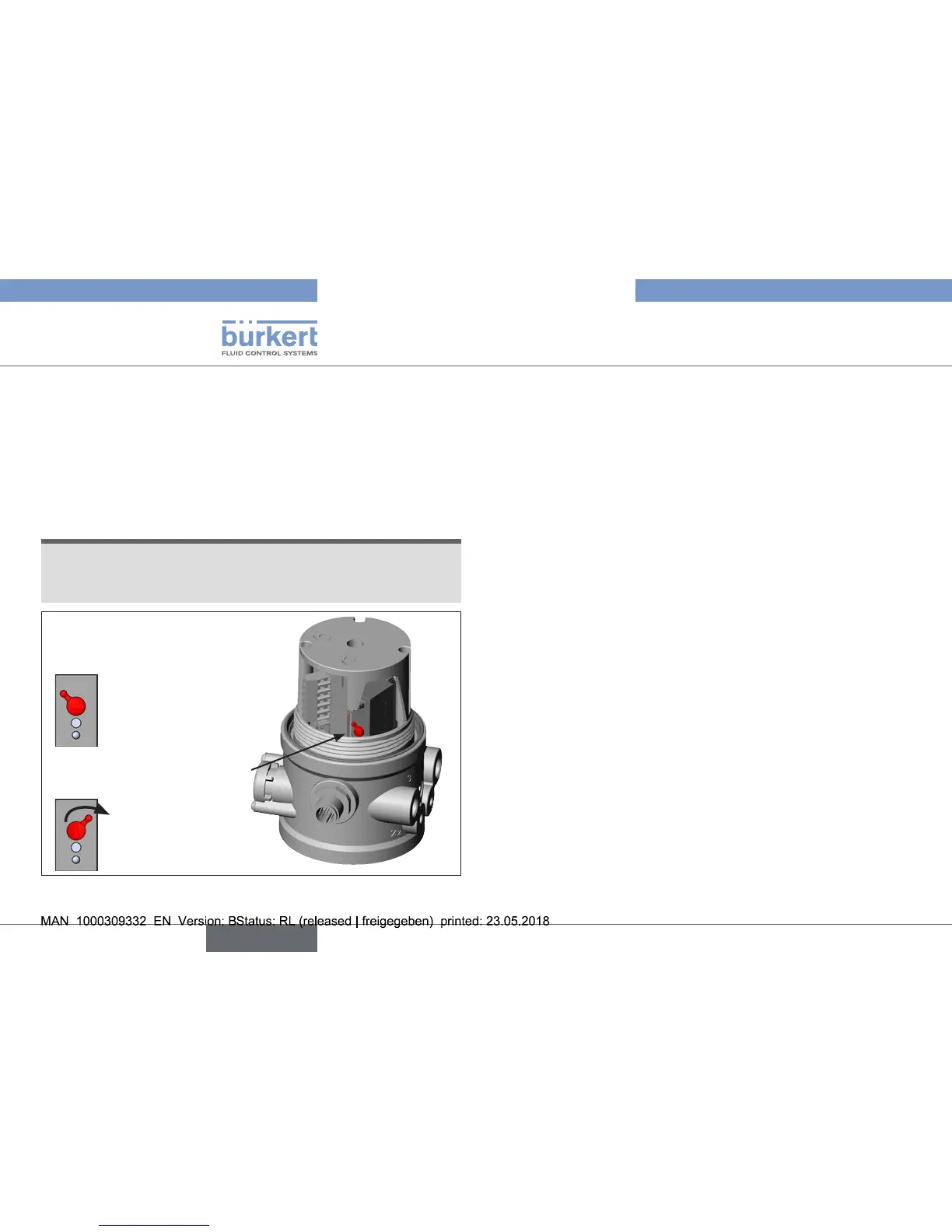

Fig. 17: Pilot valve for aerate and deaerate the actuator
Move actuator to end position
→ Turnthehandlevertotherightusingascrewdriver.
Note: Donotpressthehandleverwhenturningit
Move actuator back to the rest position
→ Turnthehandlevertotheleftusingascrewdriver.
Note: Donotpressthehandleverwhenturningit
