26.2.7. X.TIME – Limiting the control speed
Use this auxiliary function to specify the opening and closing times for the entire stroke and limit the control speeds.
When the X.TUNE function is running, the minimum opening and closing time for the entire stroke is auto-
matically entered for Open and Close. Therefore, movement can be at maximum speed.
Factory setting: values determined at the factory by the X.TUNE
If the control speed is limited, values can be input for Open and Close which are between the minimum values
determined by the X.TUNE and 60 s.
EXIT
*
OK
Enter
value
Enter
value
X.TIME
Open 1
Close 1
Opening time for entire stroke
(in seconds)
Adjustment range: 1 – 60 seconds
Closing time for entire stroke
(in seconds)
Adjustment range: 1 – 60 seconds
ENTER
INPUT
INPUT
* If the submenu is left by pressing the
ESC
key, the value remains unchanged.

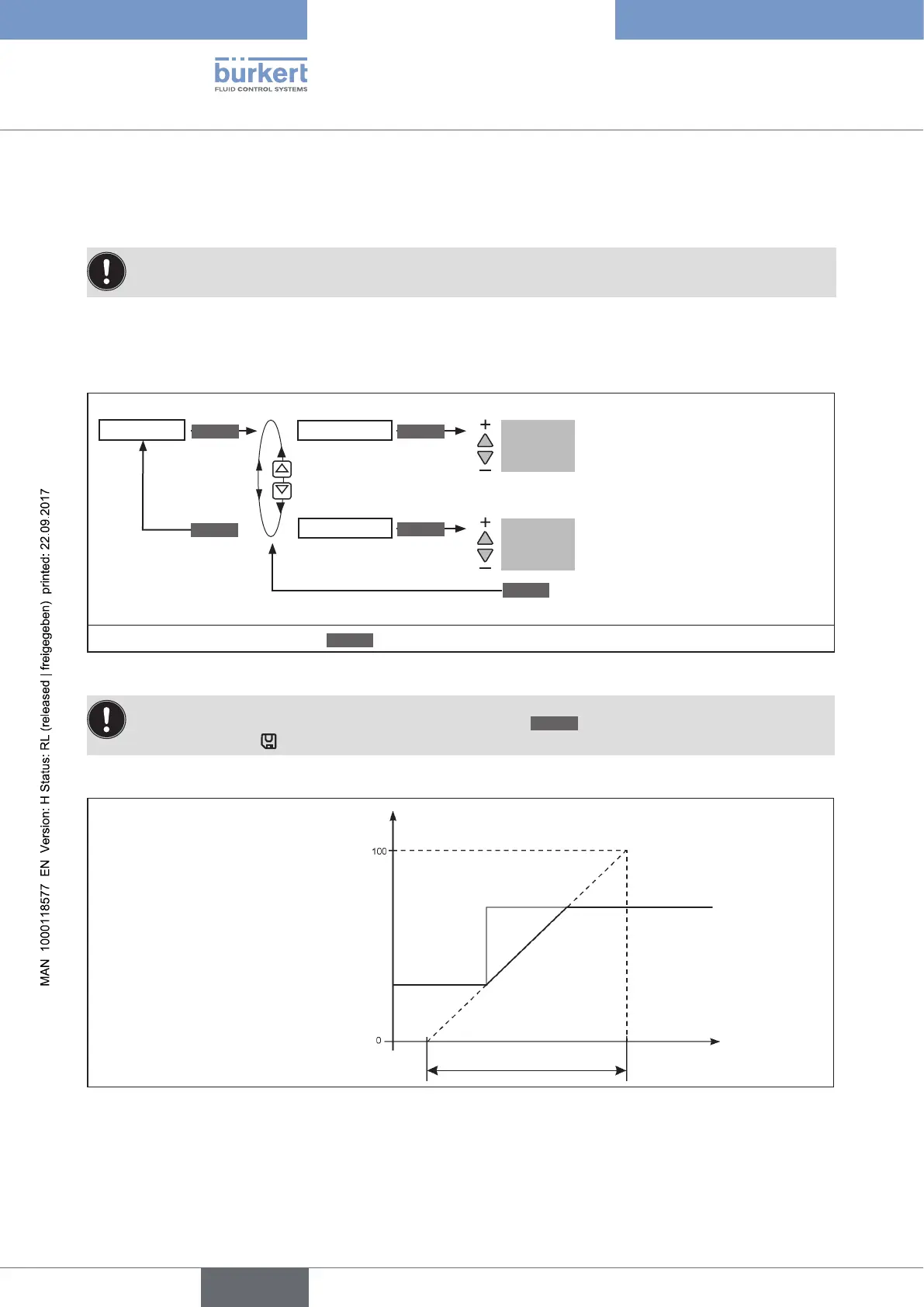

Figure 65: Operating structure X.TIME
The changed data is saved in the memory (EEPROM) only when there is a switch to the process level,
by leaving the main menu (MAIN) using the left selection key
EXIT
. During the save process, the save
symbol is indicated
on the display.
Effect of limiting the opening speed when there is a jump in the set-point value
Set-point
value
Actual value
Open
t
Valve stroke [%]
(POS, CMD)
Figure 66: Graph - X.TIME
