92
Start-Up
25.3.7. FILTER – Filtering of the process actual value input
The filter is valid for all process actual value types and has a low pass behavior (PT1).
Factory setting: 0
Operating structure:
Adjustment range: 0 ... 9
EXIT
Input value
ENTER
INPUT
OK
ESC
PID.PARAMETER
DBND 1.0 %
FILTER 0

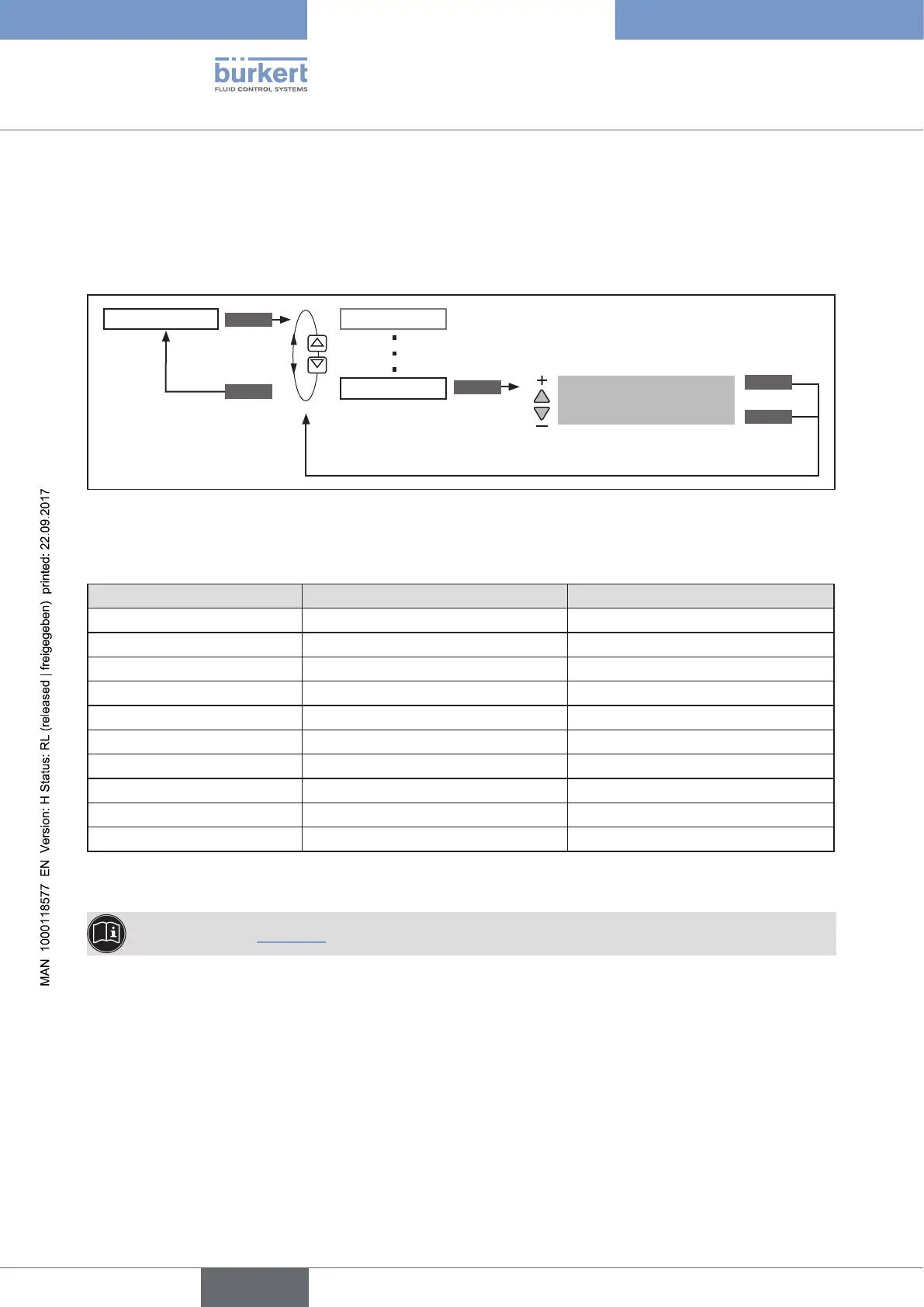

Figure 48: Operating structure FILTER; filtering of the process actual value input
Setting the filter effect in 10 stages
Setting Corresponds to cut-off frequency (Hz) Effect
0 10 Lowest filter effect
1 5
2 2
3 1
4 0.5
5 0.2
6 0.1
7 0.07
8 0.05
9 0.03 Largest filter effect
Table 46: Setting the filter effect
On page 244 you will find a table for entering your set parameters.
