Operating structure / Factory settings
SECURITY PV-SCALE
P.CONTROL
1)
X.LIMIT
X.TIME
X.CONTROL
PID.PARAMETER
SETUP
Min 0 %
T . open 1.0 sec
DBND 1.0 %
DBND 1.0 %
PV-INPUT 4- 20 mA
Max 100 %
T . close 1.0 sec
KXopn 1
KXcls 1
KDopn 0
KDcls 0
YBfric 0
YEfric 0
KP 1.00
Frequenz
PT 100
TN 999.9
TV 0.0
X0 0 %
FILTER 0
Activatable auxiliary functions
0 %
100 %
1.0 sec
1.0 sec
1.0 %
1
1
0
0
0
0
1.0 %
1.00
999.9 sec
0.0 sec
0 %
0

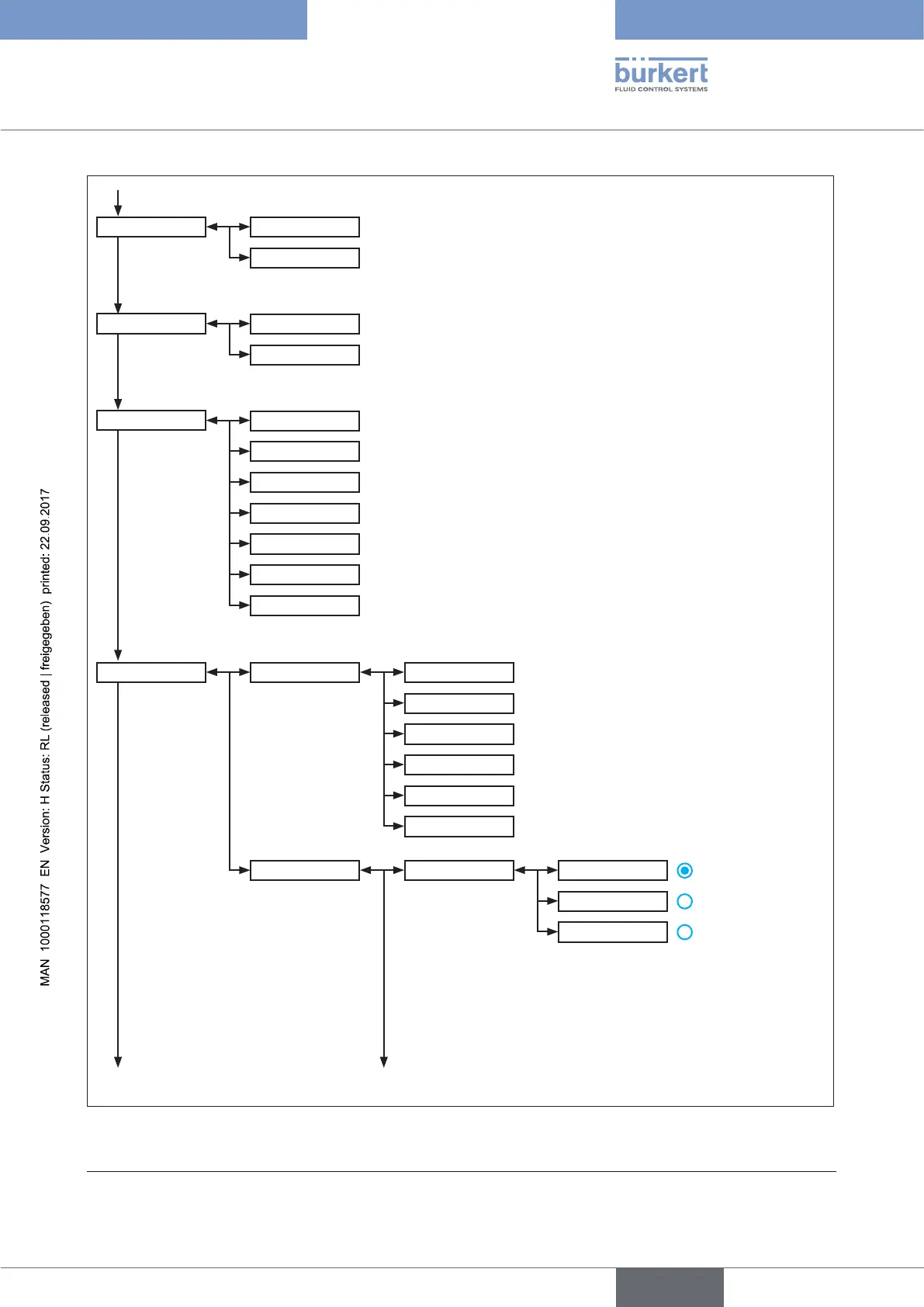

Figure 104: Operating structure - 5
1) only process controller Type 8793
