Operation

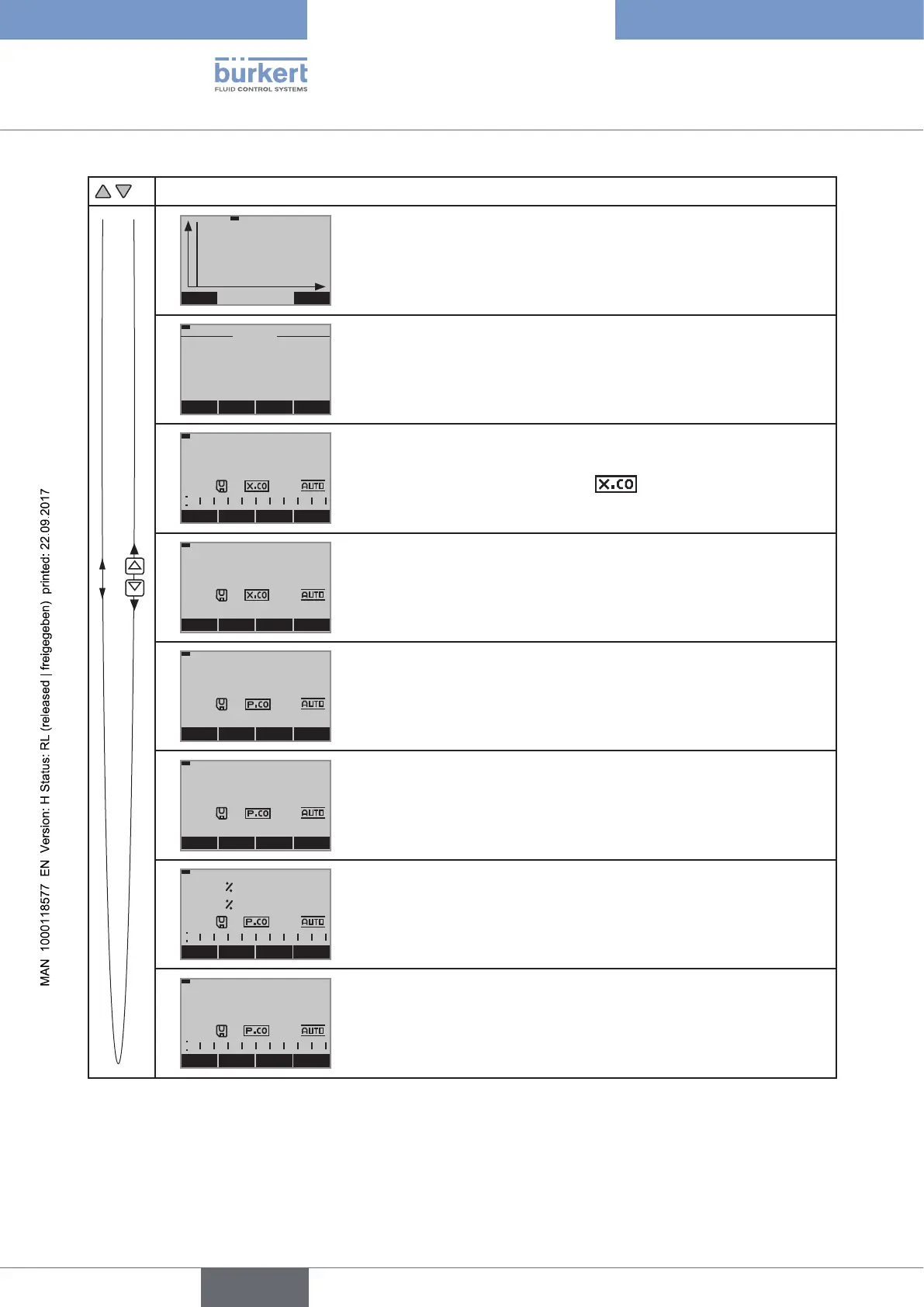

Possible displays in AUTOMATIC operating state
MENU HOLD
CMD / POS (t)
Graphical display of POS and CMD with time axis
MENU
INPUT X.TUNE
INPUT
12:00
00
Thu. 01 . 09 . 11
CLOCK
Time, weekday and date
MENU
CMD/POS
CLOCK
INPUT
4.0
mA
Input signal for set-point position
(0 ... 5/10 V or 0/4 ... 20 mA)
Only for operation as positioner
MENU
CLOCK
CMD/POS
RUN
X.TUNE
Automatic adjustment of the positioner
MENU
X.TUNE
P.LIN RUN
P.TUNE
Automatic optimization of the process controller parameters
Only for type 8793
MENU
P.TUNE
CMD/POS
RUN
P.LIN
Automatic linearization of the process characteristics
Only for type 8793
MENU P.LIN SP/PV MANU
0.0
CMD
POS
0.0
Simultaneous display of the set-point position and the actual position
of the valve actuator
(0 ... 100 %)
MENU
CMD/POS
POS MANU
0.0
SP
PV
0.0
m3/min
m3/min
Simultaneous display of the set-point position and the actual position
of the valve actuator
(0 ... 100 %)
Only for type 8793
