burroughs smartsource series - Remove Inner and Outer Covers; Remove Front Image Camera Removable Wall

Cleaning the Unit
4326 9562-007 3-5

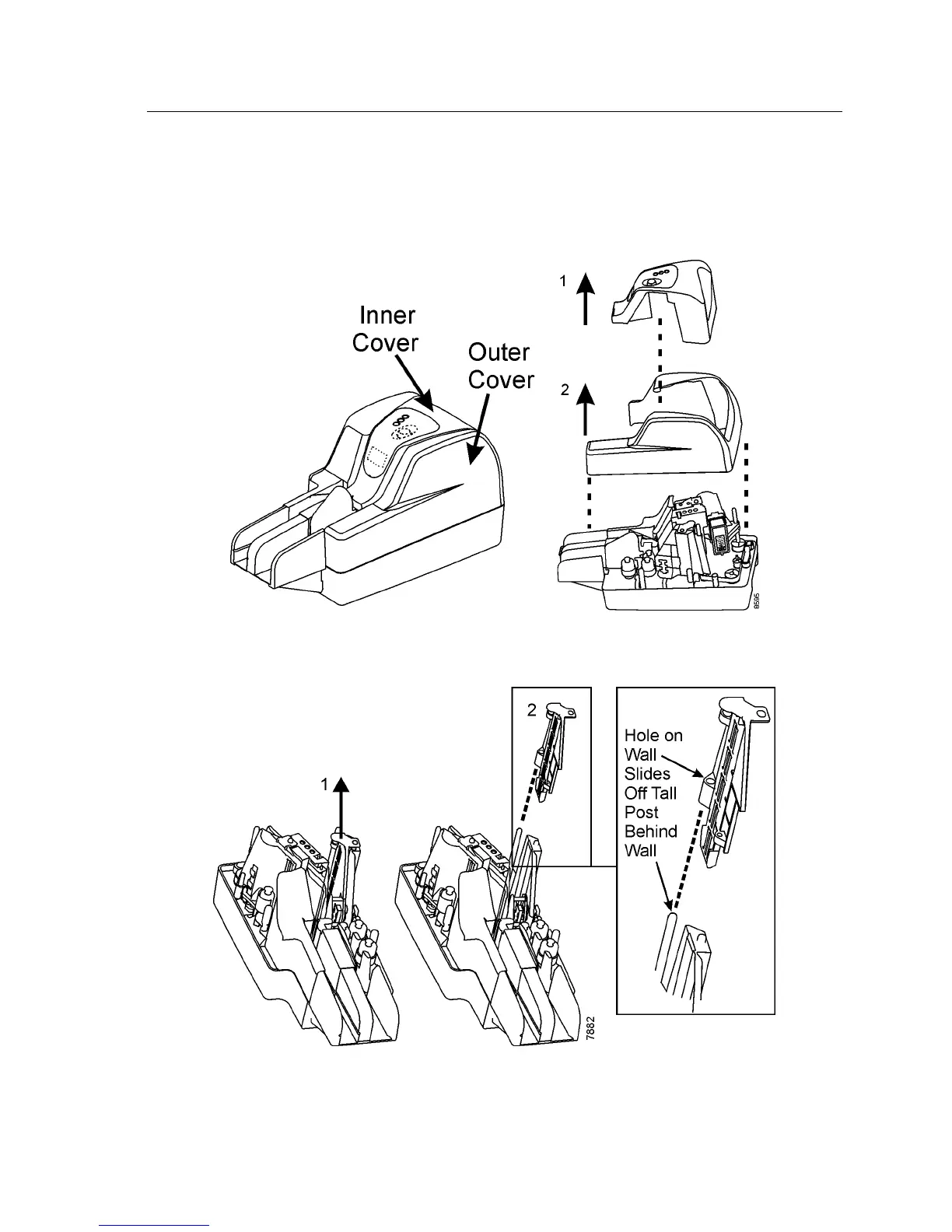

Remove Inner and Outer Covers
1. Remove the top inner and outer covers. Grasp each cover and lift it straight up and
off the unit.
Remove Front Image Camera “Removable Wall”
