8 Installing the Filter
Install the filter in the cold water pipes upstream of
the plumbing fixtures to be protected.
Install isolating valves when required. Install the
connection module in correct flow direction as
indicated by the arrow on the connection module.
Install support bracketing as required. To reduce
plumbing noise, rubber lined, insulated clips are
recommended.

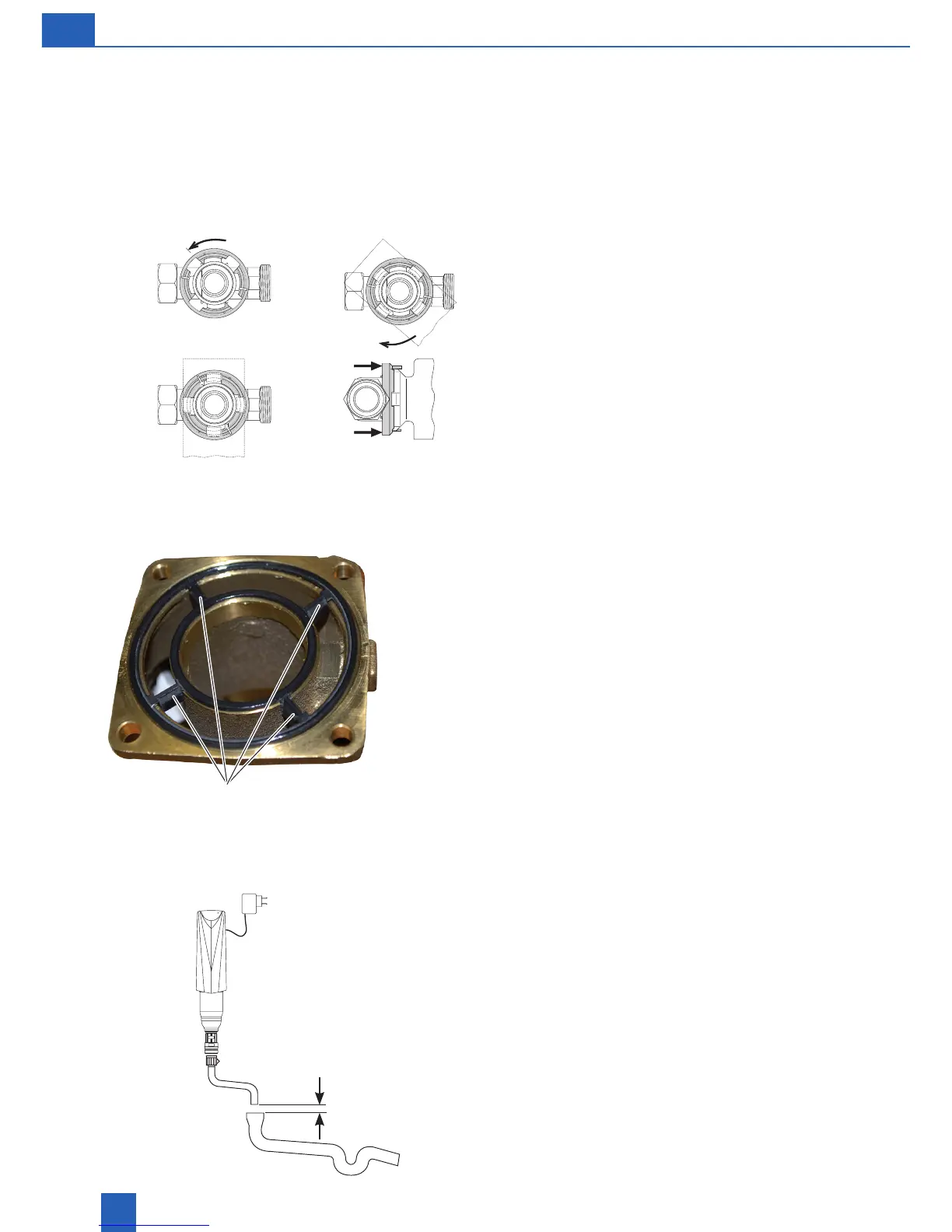

8.1 Connecting to the Connection
Module
DN 25:
1. Turn the black retaining ring to the left limit stop
2. Press the prongs of the device into the spaces
provided
3. Rotate the device clockwise 45° to the limit and
stop
4. Pull the black retaining ring with both hands
towards the device until it clicks into place. The
device cannot be rotated unintentionally.
To release the filter, press the retaining ring towards
the connection module.
DN 50:
1. Lubricate gasket and fit to filter body. Align
locating lugs and press gasket into groove.
2. Screw the filter onto the connector using four
screws and washers provided.
3. Tighten the screws evenly and crosswise.
8.2 Wastewater Connection
Run hose connection to drain using flexible hose
(not supplied).
For unplumbed test, provide a collection basin of
approximately 15 litres capacity.
Please note:
The flushing water hose must be installed at a
minimum distance of 40 mm above the highest
possible waste water level (free discharge).
4.
2.1.
3.
DN 25
DN 50
Filter body showing gasket seal location
Align locating lugs and press gasket into groove
> 40 mm
