iNetVu™ Service Manual Page 103 of 109
Procedure:

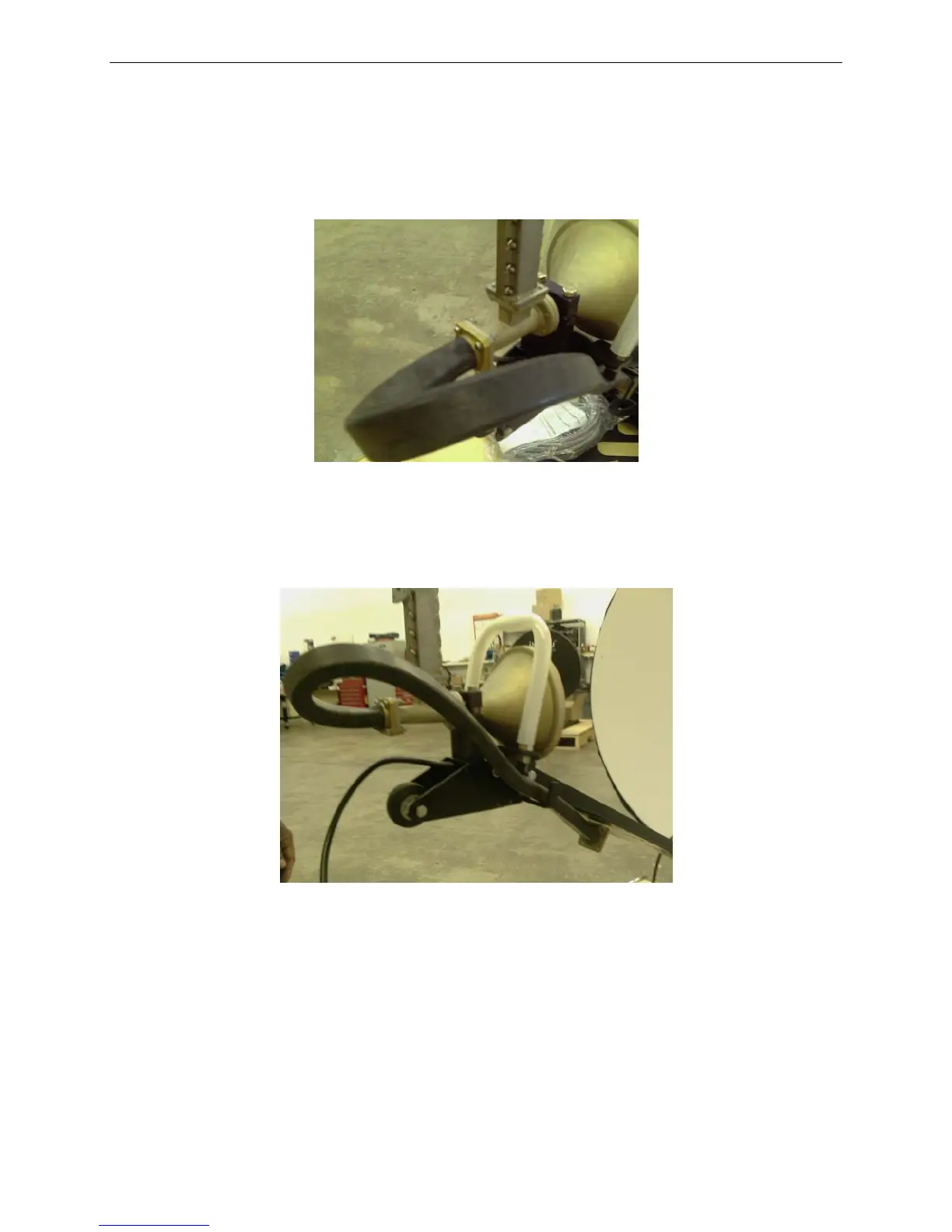

1. Connect the flexible waveguide to the OMT-TRF using the appropriate Allen Key.
Ensure the groove of the waveguide aligns with the groove of the OMT.
2. The waveguide should extend outwards from the OMT and loop UPWARDS then
back within the side waveguide support (J-clip under the Feedarm Roll Bar). The
waveguide should travel straight towards the connector flange on the BUC.
Ensure the flex bend diameter is a minimum of 6 inches.
3. Connect the waveguide to the BUC using the appropriate machine screws.
Ensure the groove of the waveguide aligns with the groove of the BUC.
