iNetVu™ Service Manual Page 11 of 109
2.2.3. Cleaning iNetVu™ Mobile Platform Connectors
Required Materials:
None
Procedure:
1. Locate the iNetVu™ Mobile Platform’s Connector Plate on side the
unit’s base plate.

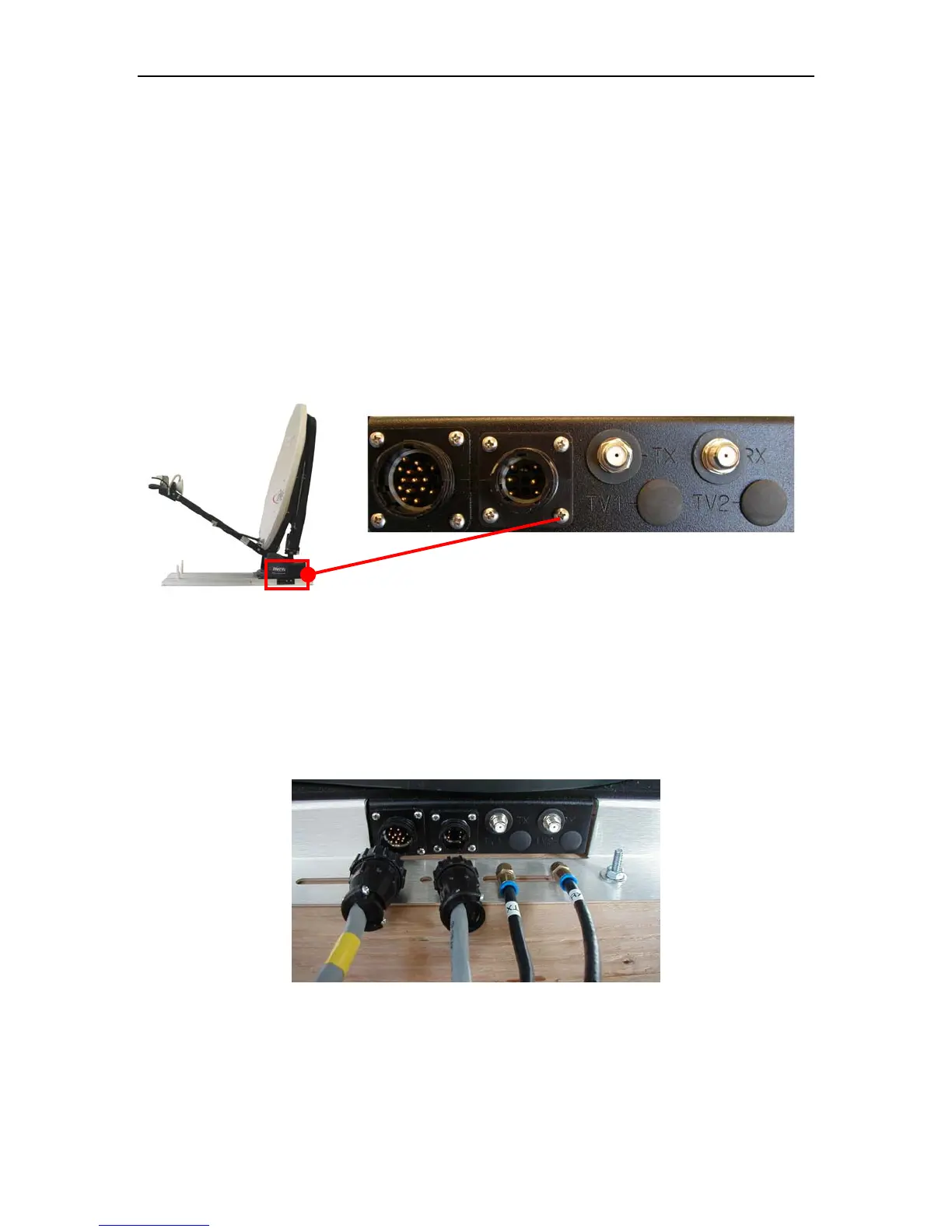

Fig. 1: iNetVu™ Mobile Platform Connector Plate Location
2. Remove any obstructions such as snow, ice, or dirt from the exterior
and interior (if any) or the Motor Control, Sensor, and Coaxial Ports.
Use a can of compressed air if necessary.
Fig. 2: Connectors and Connector Plate
