iNetVu™ Service Manual Page 71 of 109
4.8. Installing Reflector to iNetVu™ 1200 Mobile Platform
If this is the first time working with the iNetVu™ Mobile
Platform it is highly recommended that you read the entire
manual to familiarize with the proper procedure for
connecting the cables to the controller and iNetVu™
software operation.
Required Materials:
1.2m Reflector
1200 Mobile Platform Rev. 2.3+
2 Ball Joint Gas-shock Springs
Reflector Assembly Hardware Bag
Phillips Screwdriver
10mm (3/8”) Wrench
13mm (1/2”) Wrench
Handheld Controller (Optional)
Procedure:
Use the following steps to attach a 1.2m Reflector to an iNetVu™ 1200 Mobile Platform
Rev. 2.3:
1) Remove reflector from crate and any packing materials on the Mobile Platform.
2) Raise the Mobile Platform to approximately 30 using the iNetVu™ Mobile
Software or the Handheld Controller. For more information regarding the use of
the iNetVu™ Mobile Software and its installation, please refer to the iNetVu™
System Manual.
3) Peel back the Reflector Back Cover at the base of the Reflector to expose the
Gas Spring Bracket mounting holes.

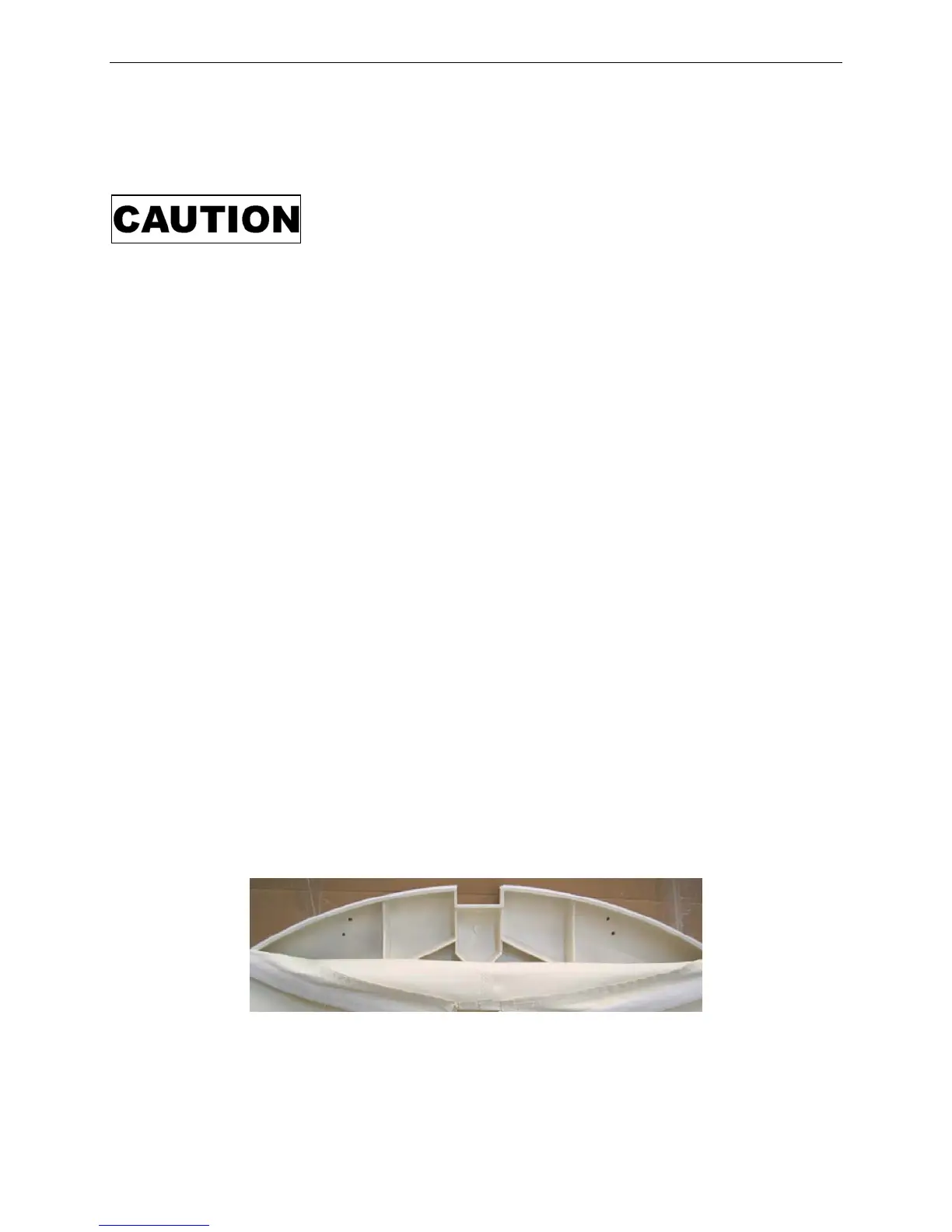

Fig. 29: Exposed Gas Spring Bracket Mounting Holes
4)
Attach Gas Spring Brackets to each side of the Reflector using a Phillips
Screwdriver and 10mm (3/8”) Wrench.
