iNetVu™ Service Manual Page 70 of 109
Compass Orientation
 COMPASS MUST BE INSTALLED LEVEL in order to receive a proper compass
heading
 MF-Generation Compass MUST be installed so that the wire protruding from the
Compass FACES TOWARD the Reflector.
 ME-Generation and A-Generation Compass MUST be installed so that the wire
protruding from the Compass FACES AWAY FROM the Reflector.

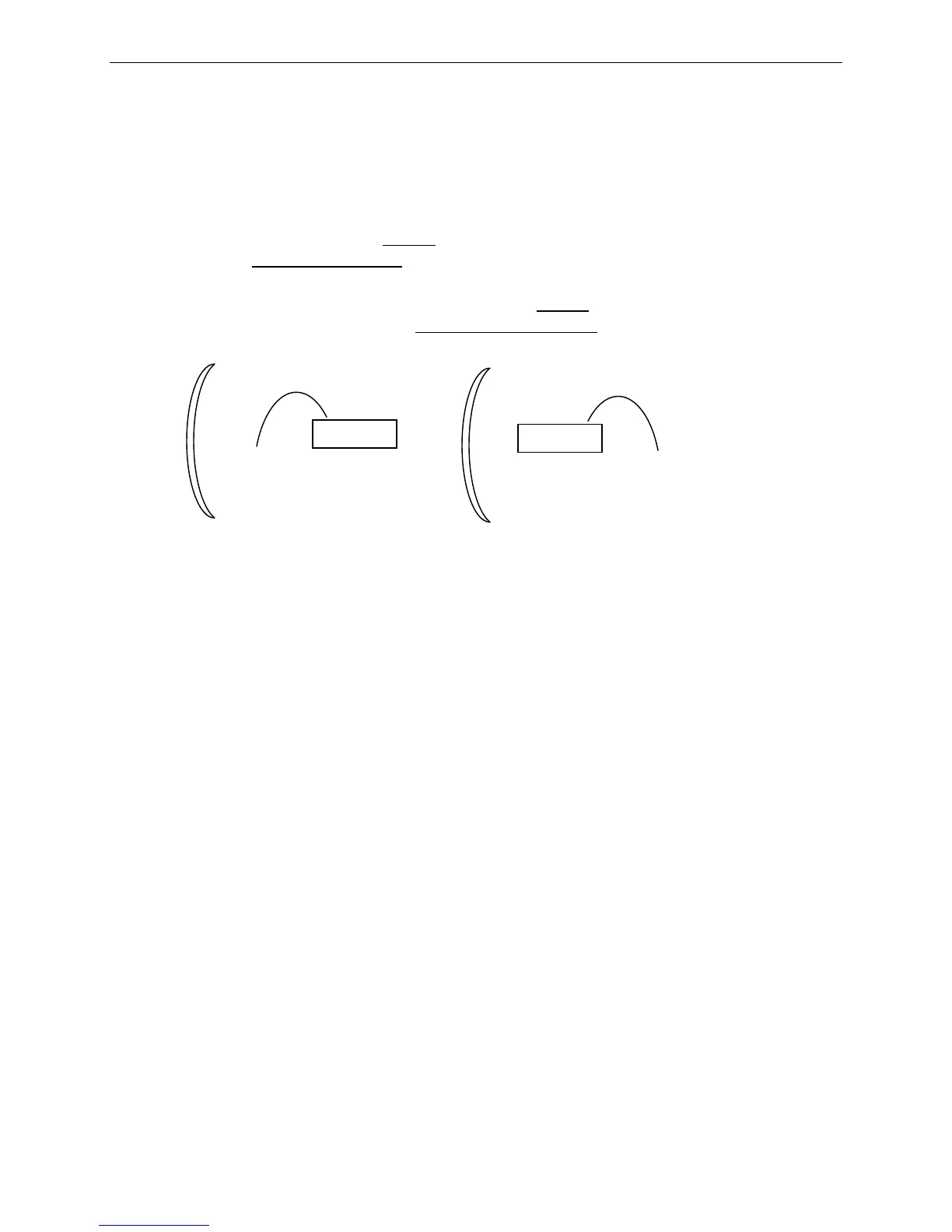

Fig. 28: Compass Orientation for MF-Generation (Left) and ME / A-Generation (Right)
Compass
Compass
