iNetVu™ Service Manual Page 102 of 109
4.15. Installing Flexible Waveguide onto A980 Mobile Platform
This procedure describes the steps involved for installing the flexible waveguide from
the feed horn to the BUC on an A980 Mobile Platform.
Caution:
Incorrect installation causes abrasion of the rubber waveguide while stowed, and forces
the waveguide to too tight a bend.

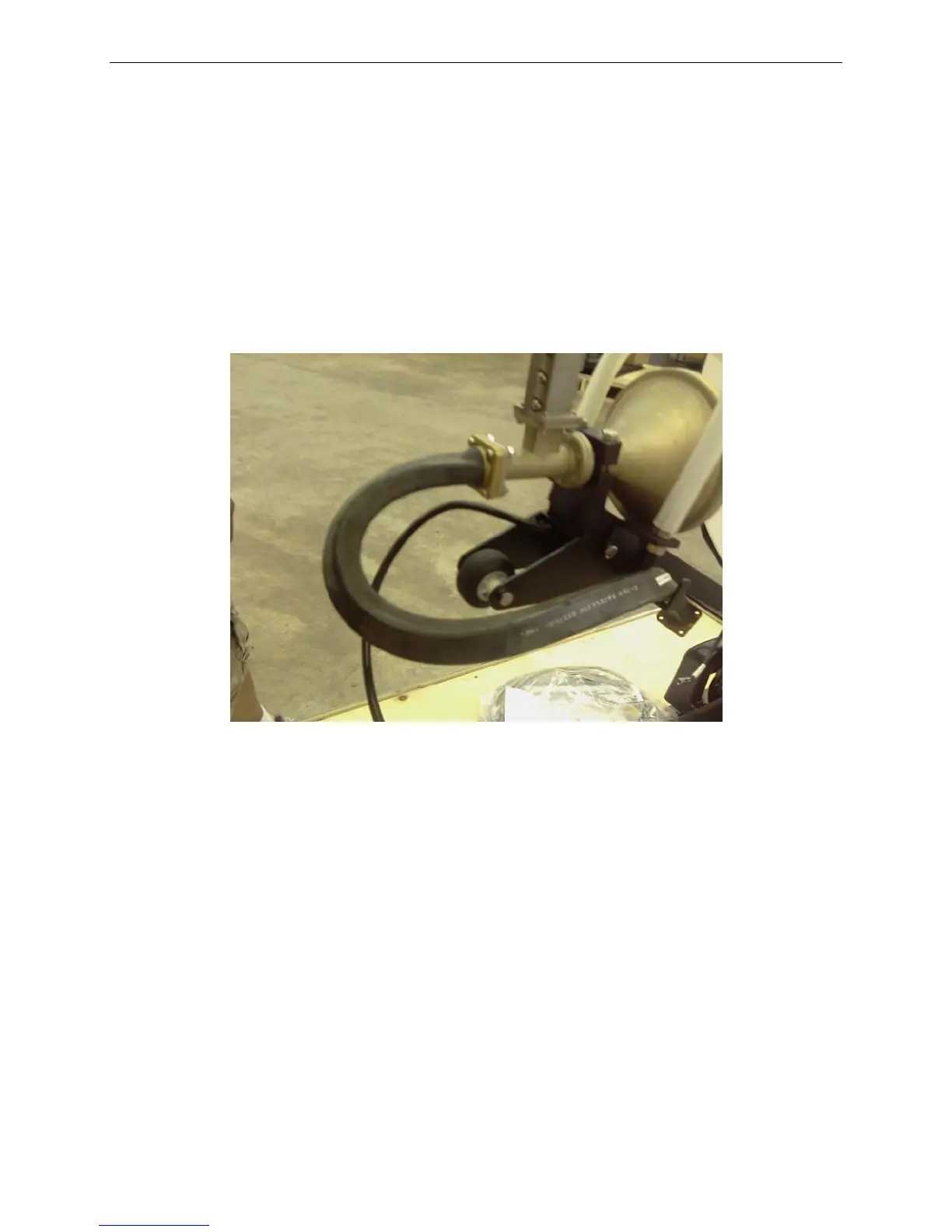

Incorrect Installation
