4. Cover the paired hex bolts with the remaining two (2) brackets on the bottom side of the
BUC as depicted in the figure below. Secure tightly using ¼ flat washers, and the ¼.20 NYL
nuts. (If NYL nuts are not available, secure using the ¼.20 split and flat washers and cover
using ¼.20 nuts)

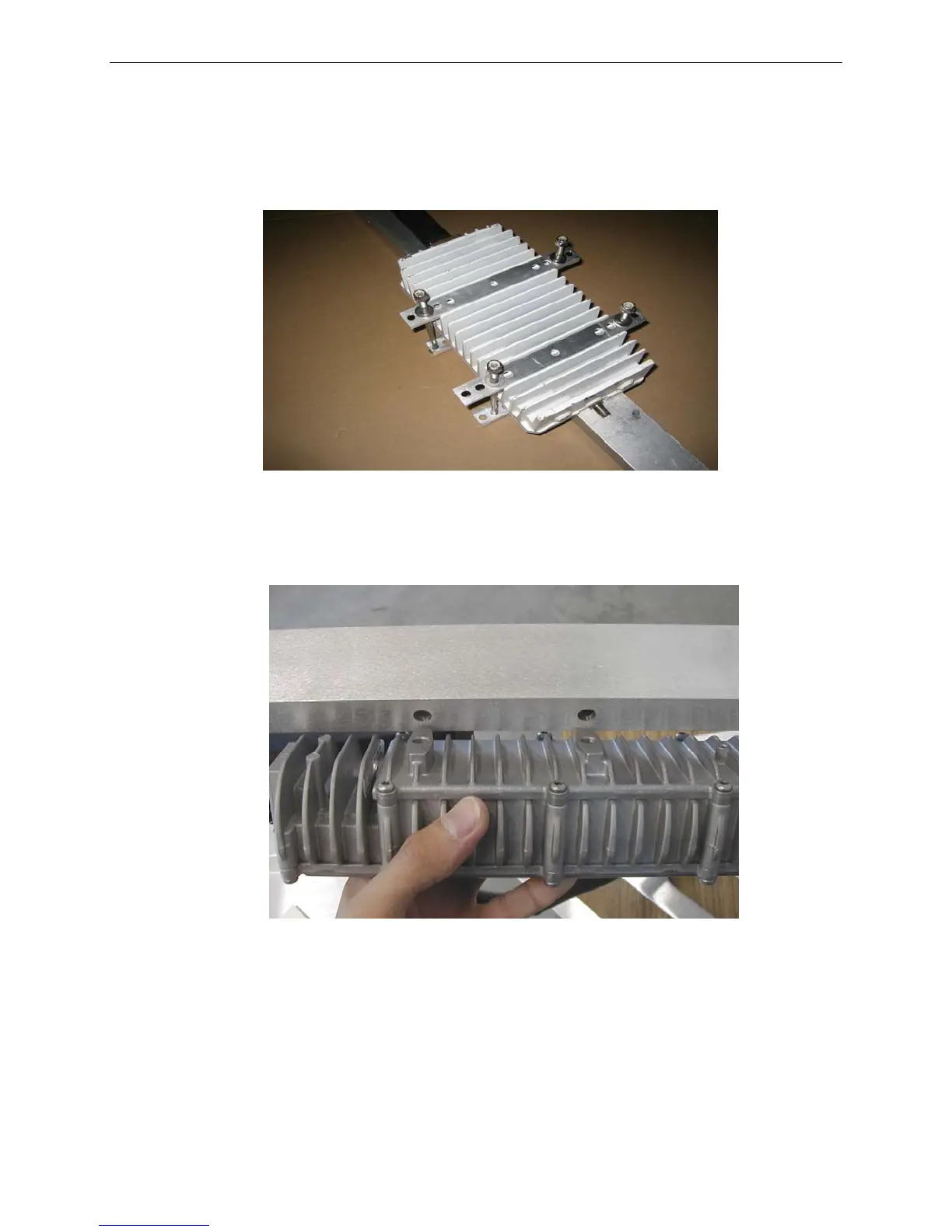

Fig. 41: Bottom side brackets caption
If you have an ISIS BUC, secure the BUC to the side Feed Arm using hex bolts (See
Required Materials section).
Fig. 42: Attaching ISIS BUC
5.
Attach the Flexible Waveguide to the BUC (ensure the polarization on the Flexible
Waveguide is exactly as that of the BUC before tightening).
6. Attach the RG6 Cable labeled ‘Tx’ to the BUC.
7. Tighten all screws and nuts.
