3. Manually rotate transmitter bracket to the desired orientation by hand.
Bracket Pointing UP: Vertical Transmit / Horizontal Receive
Bracket Pointing LEFT/RIGHT : Horizontal Transmission / Vertical Receive
Note: Orienting the bracket to the LEFT or RIGHT are equivalent and does not
affect operation.

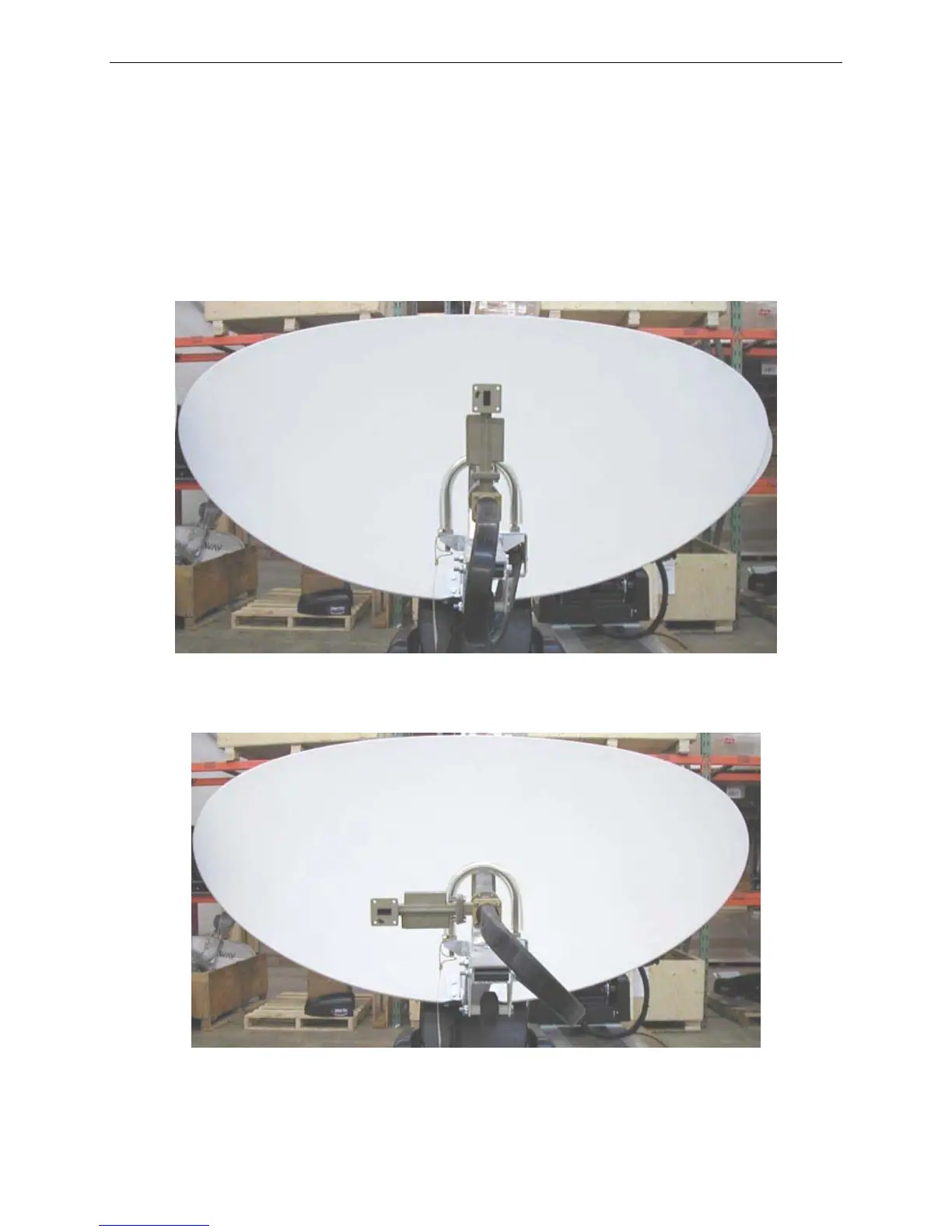

Fig. 48: Transmitter bracket orientation for Vertical Transmit
Fig. 49: Transmitter bracket orientation for Horizontal Transmit
