iNetVu™ Service Manual Page 94 of 109
4. Remove Reflector and Feed Arm from Reflector Case.

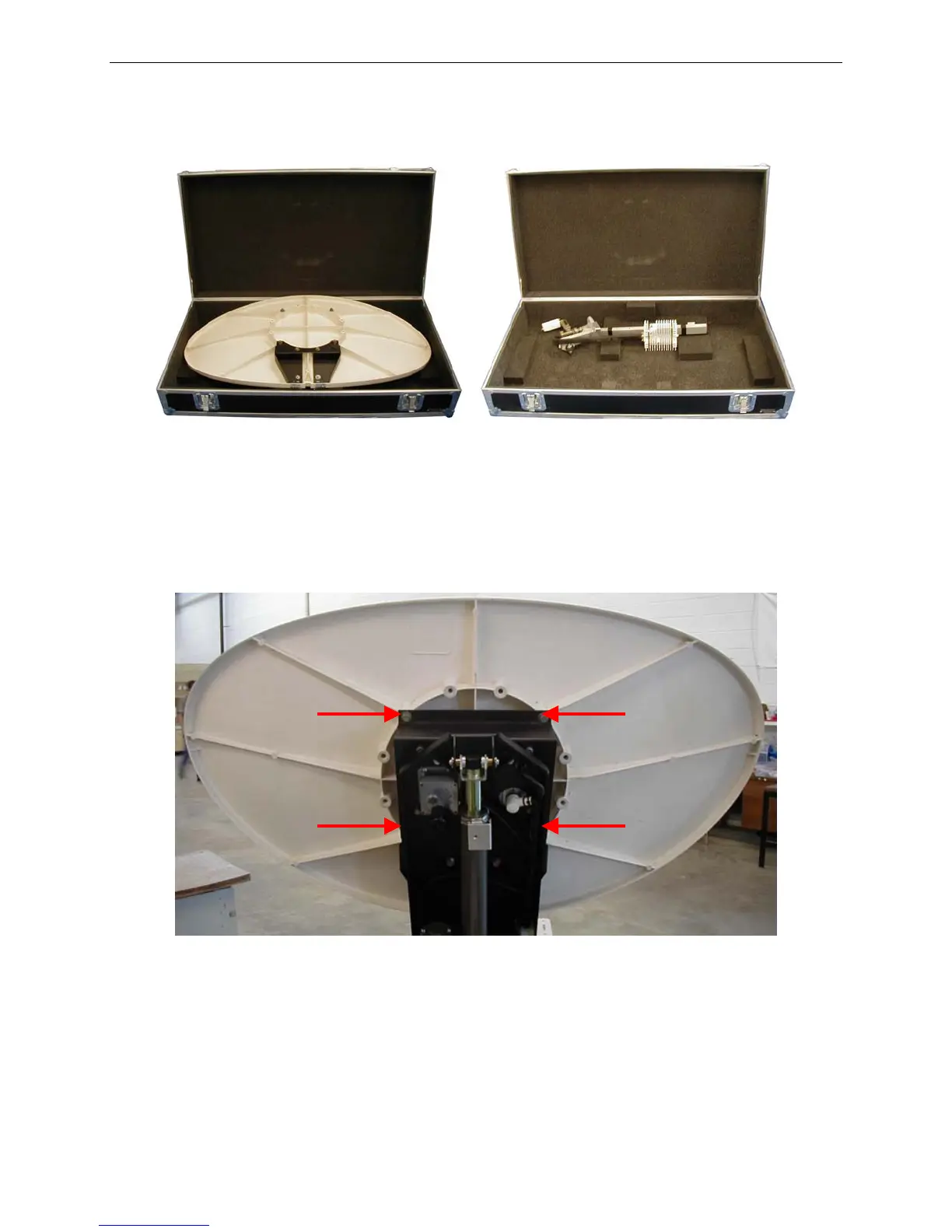

Fig. 54: Reflector (left) and Feed Arm (right) inside the Reflector Transportable Case
5. Remove the four (4) bolts from the back of the Reflector, locate the associated holes
on the back of the Polarization Plate on the Mobile Platform and attach the Reflector
using a ½” (13mm) Wrench.
Fig. 55: Reflector Mounting Locations
