iNetVu™ Service Manual Page 96 of 109
7. Thread the screw through the Feed Arm Bracket and Feed Arm as shown in the
figure below.

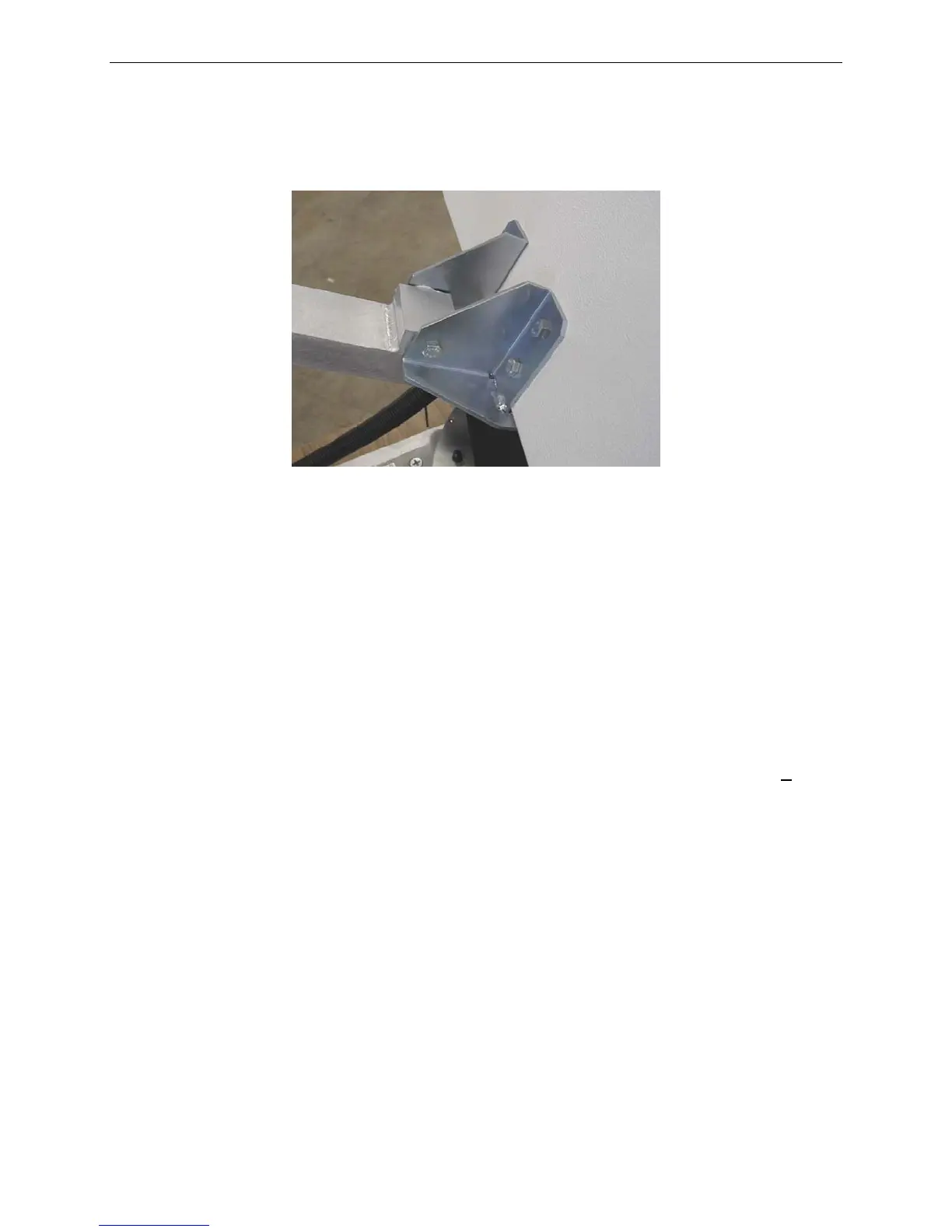

Fig. 58: Attaching Feed Arm to the Reflector
8.
Secure the Feed Arm by tightening the nut using a 7/16” (12mm) Wrench.
9. Connect “Tx” labeled RG6 Coaxial Cable from the Cable Bundle to the BUC.
10. Connect the “Compass” labeled cable from the Cable Bundle to the Compass
attached to the Feed Horn Assembly.
11. Connect the “Rx” labeled RG6 Coaxial Cable from the Cable Bundle to the LNB.
12. Secure Cable Bundle to the Feed Arm using Ty-wraps. Ensure there is enough slack
in the cable bundle to allow the Mobile Platform to rotate its Polarization a full +70.
