Operator manual
Page 9 - 62
Initial version : 11/08
Lastest revision : 02/10
AGR area : Adjustment according to the paper format and AGR

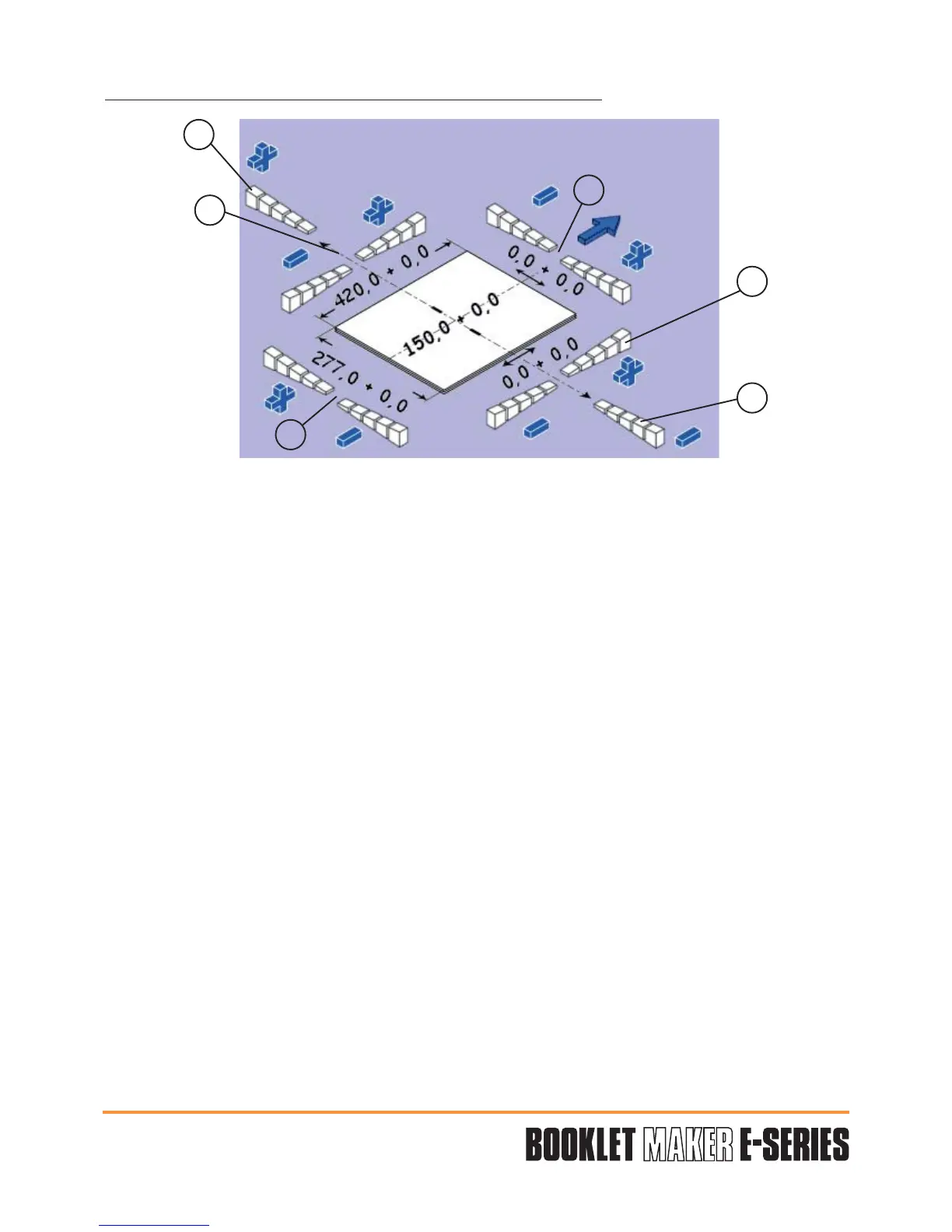

Adjustment of the stitcher while running (AGR).
Adjustment on paper length, maximum modification ± 3mm.1.
Adjustment on paper width, maximum modification ± 3 mm.2.
Adjustment on stitch spacing, maximum modification ± 3mm.3.
Adjustment on stitch position on paper length.4.
+ Stitches offset to the paper front, maximum modification ± 3mm.
- Stitches offset to the paper rear, maximum modification ± 3mm.
5. Adjustment on stitch position on paper width.
+ Stitches offset to the paper right, maximum modification ± 3mm.
- Stitches offset to the paper left, maximum modification ± 3mm.
1
2
3
3
4
5
