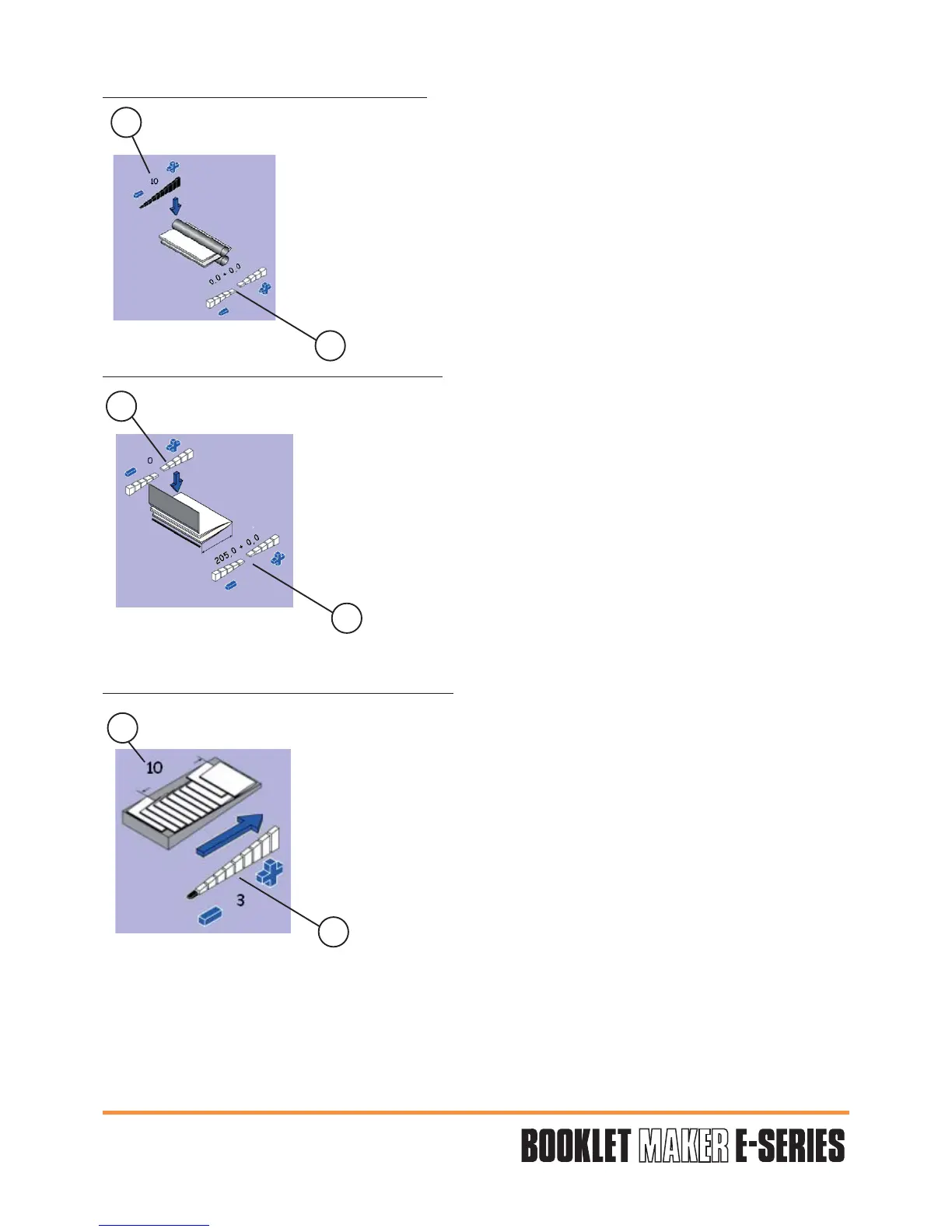

PA area: Folder adjustment while running
6 - Folding pressure adjustment (maximum by default).
7 - Fold position adjustment in relation to stitches.
+ Final booklet upper face will be longer.
- Final booklet lower face will be longer.
Maximum modification ± 1,5mm
TR area: Trimmer adjustment while running
8 - Trimmer conveyor height adjustment.
+ Minimum height.
- Maximum height.
9 - Booklet final length adjustment.
Maximum modification ± 3mm.
CV area: Conveyor adjustment while running
10 - Offset value correction.
11 - Conveyor advance correction.
7
6
9
8
11
10
