Functional checks (Continued)
Complete all the functional tests for the T/Pump
®
Temperature Therapy Pump. If the pump passes all the requirements
of this functional check and safety inspection, the pump should be considered operational and suitable to return to
service.
Functional check setup - Clik-Tite
®
connectors
Note: If the ow meter is connected in reverse, the ow meter will indicate no ow. Reverse the pump connections so
that the male tting (with black O-ring) is on the supply side.
A
B
C
D
E

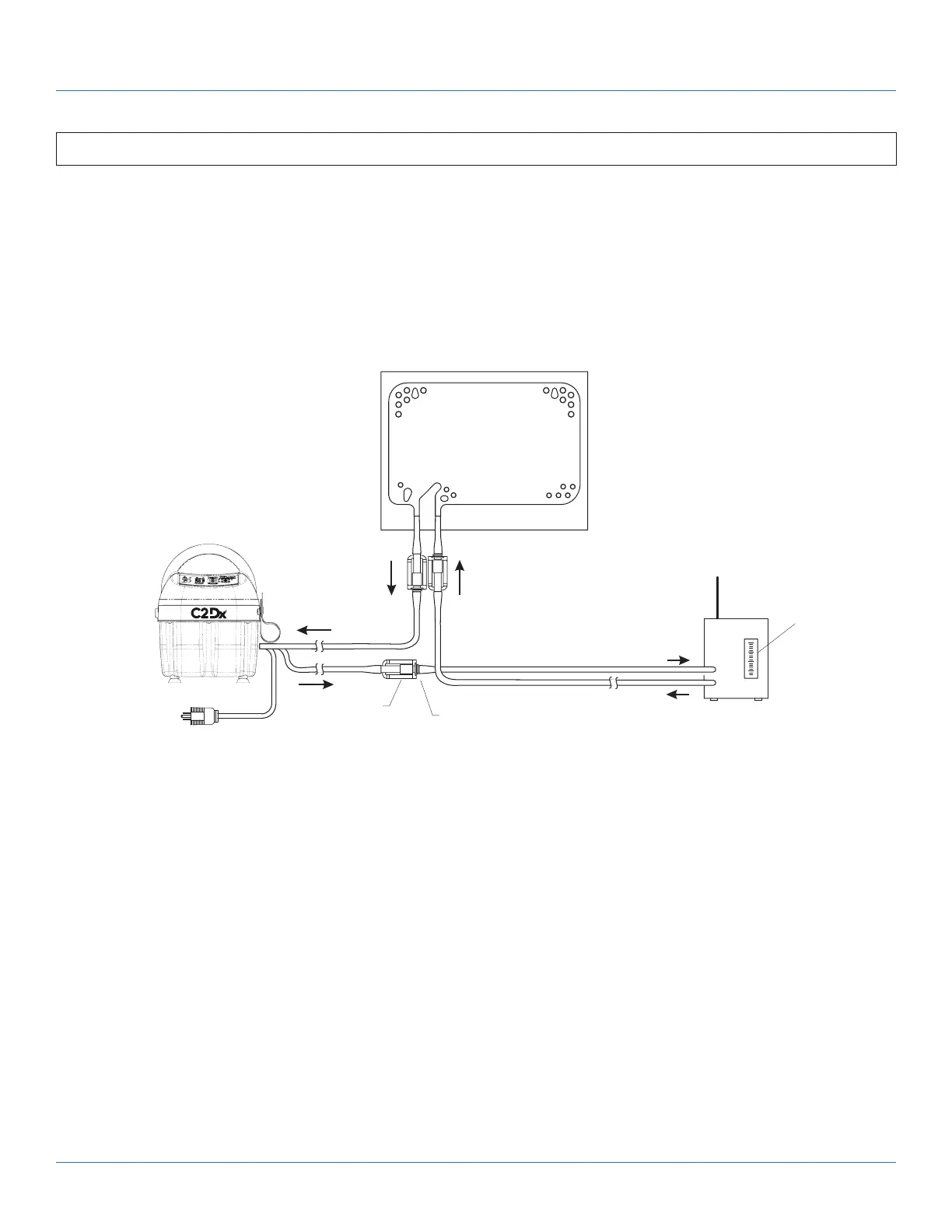

Figure 1: Functional check setup for Clik-Tite
®
connectors
1. Plug into a properly grounded outlet (A) (Figure 1 on page 16).
2. Fitting and tube closest to the front of the T/Pump
®
Temperature Therapy Pump (B).
3. Male Clik-Tite
®
connectors (black O-ring) (C).
4. Mul-T-Pad
®
Temperature Therapy Pad, size 18” or 22”: lay the pad at and at the same level as the pump (D).
5. TPT9, 7 gph (26.5 lph) minimum. Read at top of the oat (E).
Functional check setup - Colder connection
Note: If the ow meter is connected in reverse, the ow meter will indicate no ow. Reverse the pump hose connections
to change the direction of the ow.
