Problem Possible Cause Solution
defective. Replace thermostat if it
does not pass Backup Limit
Thermostat Test from Functional
check.
If there is NO Power to the heater,
replace the PC Board.
T/Pump
®
Temperature Therapy Pump
will NOT Cool
Reservoir is EMPTY
Flow is BLOCKED
Ice is DEPLETED
Rell with room temperature water to
proper level
Reference “Flow indicator light is ON”
section
Drain excess water to Cooling water
line and ll remainder of reservoir with
ice.
Water LEAKS from hose connectors
Replace Clik-Tite
®
connector
Male: P/N: 03887001
Female P/N: 03884001
Snap Clik-Tite
®
connector SHUT
Secure pad connection to pump
(See quick disconnects). Replace
connectors or pad if defective.

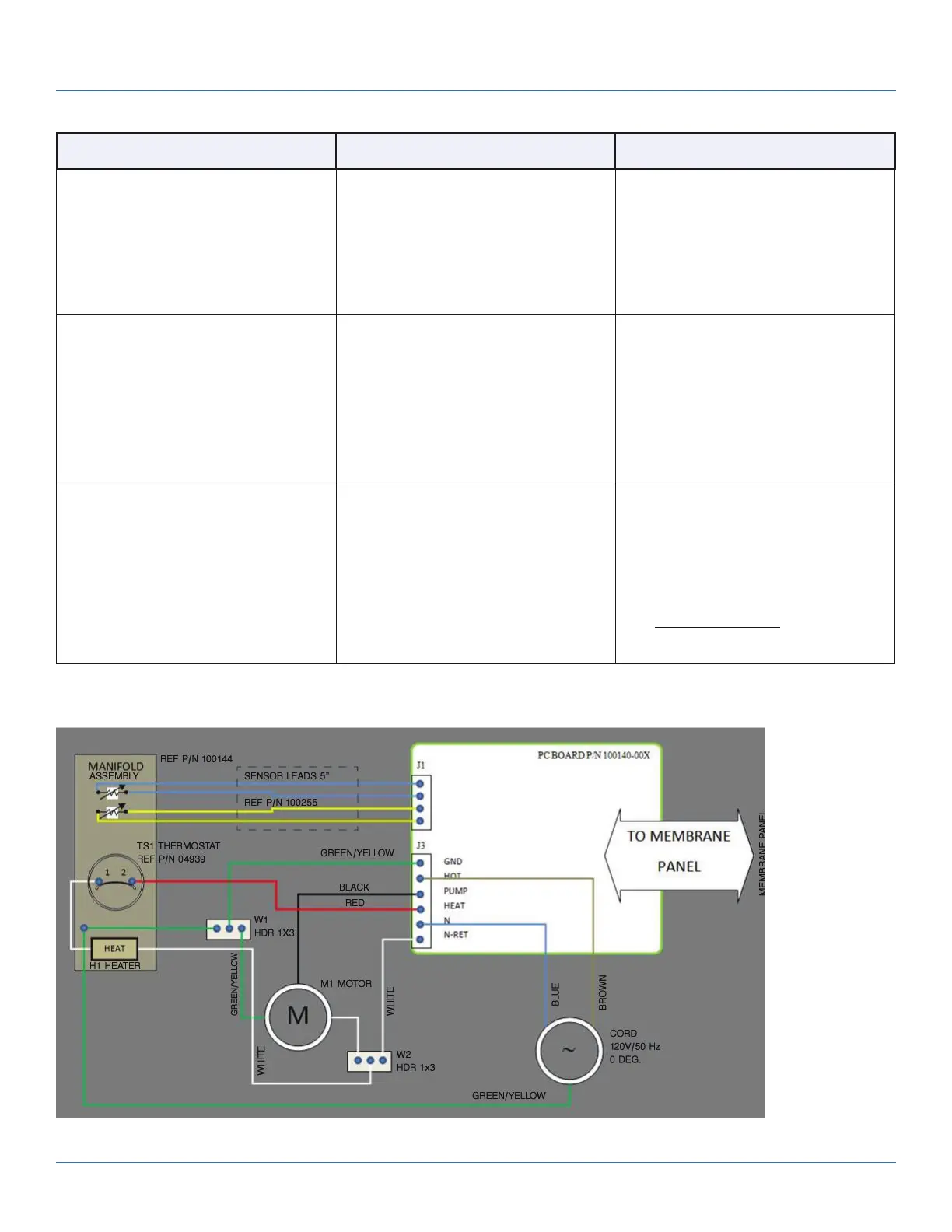

Wiring diagram
101176 Rev 1
Troubleshooting
23 c2dx.com
