CAB 5314 Series User Manual

16 17
7 Adjustments
7.3 Adjustments in the Printer Setup
3
2
1
4

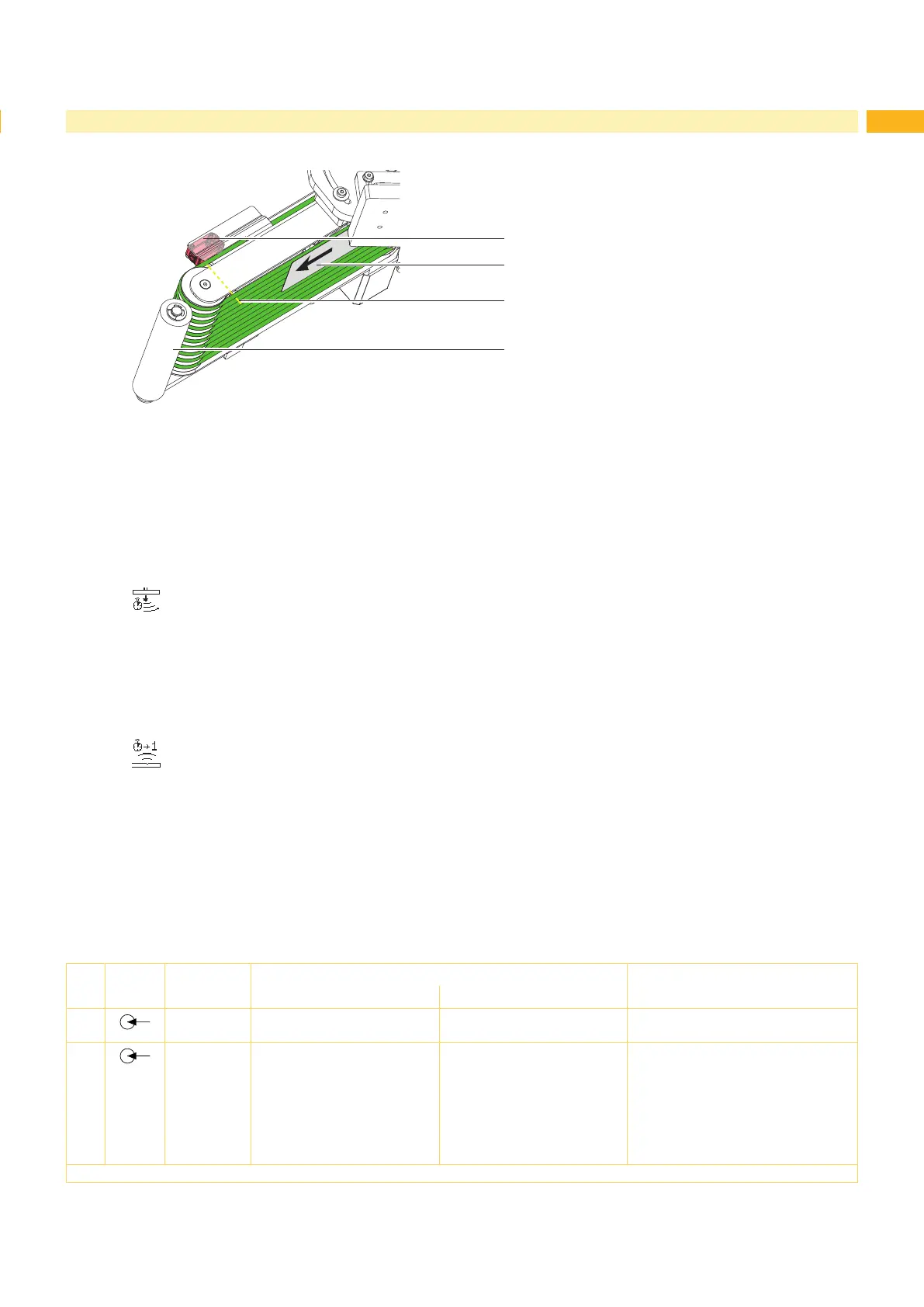

Fig.8 Labeltransport/Reexsensor
Waiting position of the label
The operation mode "Blow" must be selected in the setup. Only with this setting it is possible to change the
parameter "Blow time" .
Afterdetectingthelabel(2)bythereexsensor(1)itwillbetransportedfurtherforadenedtimetoreachthe
pressure roll (4).
To change this overrun time use the parameter
> Blow time
A higher value causes a longer transport distance.
200 ms equates to 10 mm  Setup parameters of the applicator
Overrun of the label
Ifthelabel(2)hasleftthesensorarea(3)itwillbetransportedfurtherforadenedtimetoapplythelabelcompletely
stressless. To change this overrun time use the parameter
> Support delay on
7.4 Signals
• With the signal DREE will be started the print and transport to the waiting position of the label.
• With the signal START will be started the application of the label on the product.
In the application mode "Apply - Print" the print of the next label starts directly after application of the previous
label.
In the application mode "Print - Apply" the signal DREE must be sent for each label.
Pin Signal Name Description Activation / Active Status
without applicator with applicator
1
DREE - printrstlabelinmode
"Apply-Print"
Switch on +24V between
Pin 1 and Pin 25
13
START Print start signal
Precondition: The superior
controlhasconrmedwith
the ETE signal that the
previous label has been
taken from the peel-off
position.
Start of printing and labeling +24V between Pin 13 and Pin 25
 Interface description Hermes+
Table 4 Part of the interface description of the label printer Hermes+
