CAB 5314 Series User Manual

22 22
10 Spare Parts
10.2 Control Unit / Contact Pressure

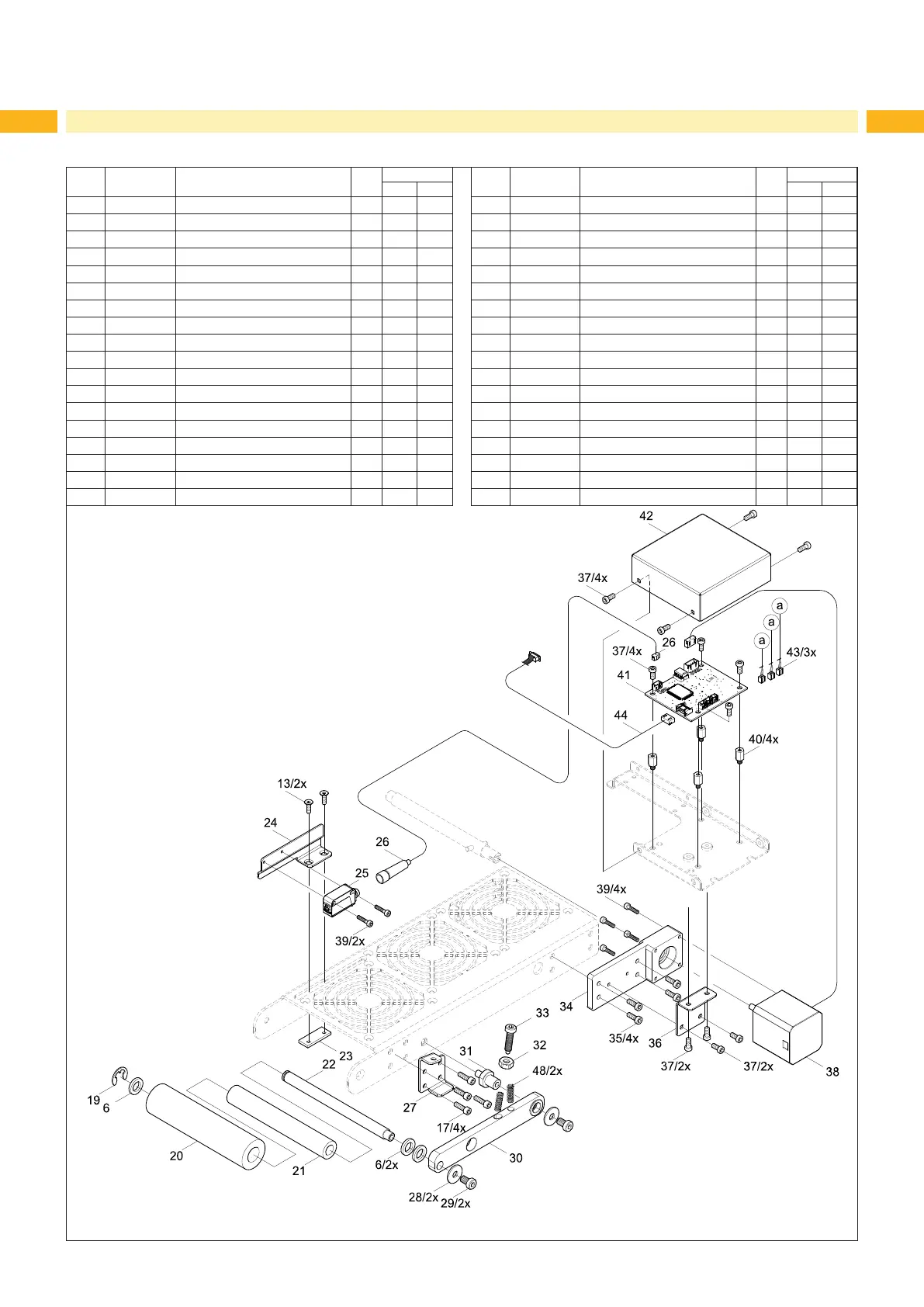

Fig.11 Control Unit / Contact Pressure - Spare Parts
No. Part-No. Description PU Serial No.
from to
6 5903054.001 Washer DIN988-10x16x1 10
13 5902016.001 Screw DIN7991-M4x10 10
17 5902241.001 Screw DIN7984-M4x10 10
19 5903510.001 E-Ring DIN6799-9 10
20.1 5971497.001 Foam Roll 5314 1
20.2 5972146.001 Foam Roll 5316
21.1 5971498.001 Core 5314 1
21.2 5972144.001 Core 5316
22.1 5971674.001 Axle 5314 1
22.2 5972143.001 Axle 5316
23 5971495.001 Plate 1
24.1 5971683.001 Holder L 1
24.2 5971494.001 Holder R 1
25 5918211.001
ReexSensor 1
26 5971518.001 Cable Sensor 1
27.1 5971673.001 Adjusting Plate L 1
27.2 5971509.001 Adjusting Plate R 1
28 5903040.001 Washer DIN125-A6.4 10
No. Part-No. Description PU Serial No.
from to
29 5902375.001 Screw DIN7984-M6x10 10
30 5971677.001 Lever 1
31 5971684.001 Bolt 1
32 5902536.001 Nut DIN439 M6 10
33 5971512.001 Set Screw M6 1
34 5971687.001 Flange 1
35 5902459.001 Screw DIN7984-M4x12 10
36 5971693.001 Bracket 1
37 5902358.001 Screw DIN7984-M4x6 10
38 5971514.001 Motor 1
39 5902003.001 Screw DIN912 M3x15 10
40 5966468.001 Distance bolt 1
41 5551173.001 PCB Control 1
42.1 5971702.001 Cover L 1
42.2 5971701.001 Cover R 1
43 5971790.001 Fan 1
44 5971519.001 Cable Printer Interface 1
48 5905034.001 Spring 1
