CAB 5314 Series User Manual

20 21
10 Spare Parts
10.1 Support Assembly / Transport

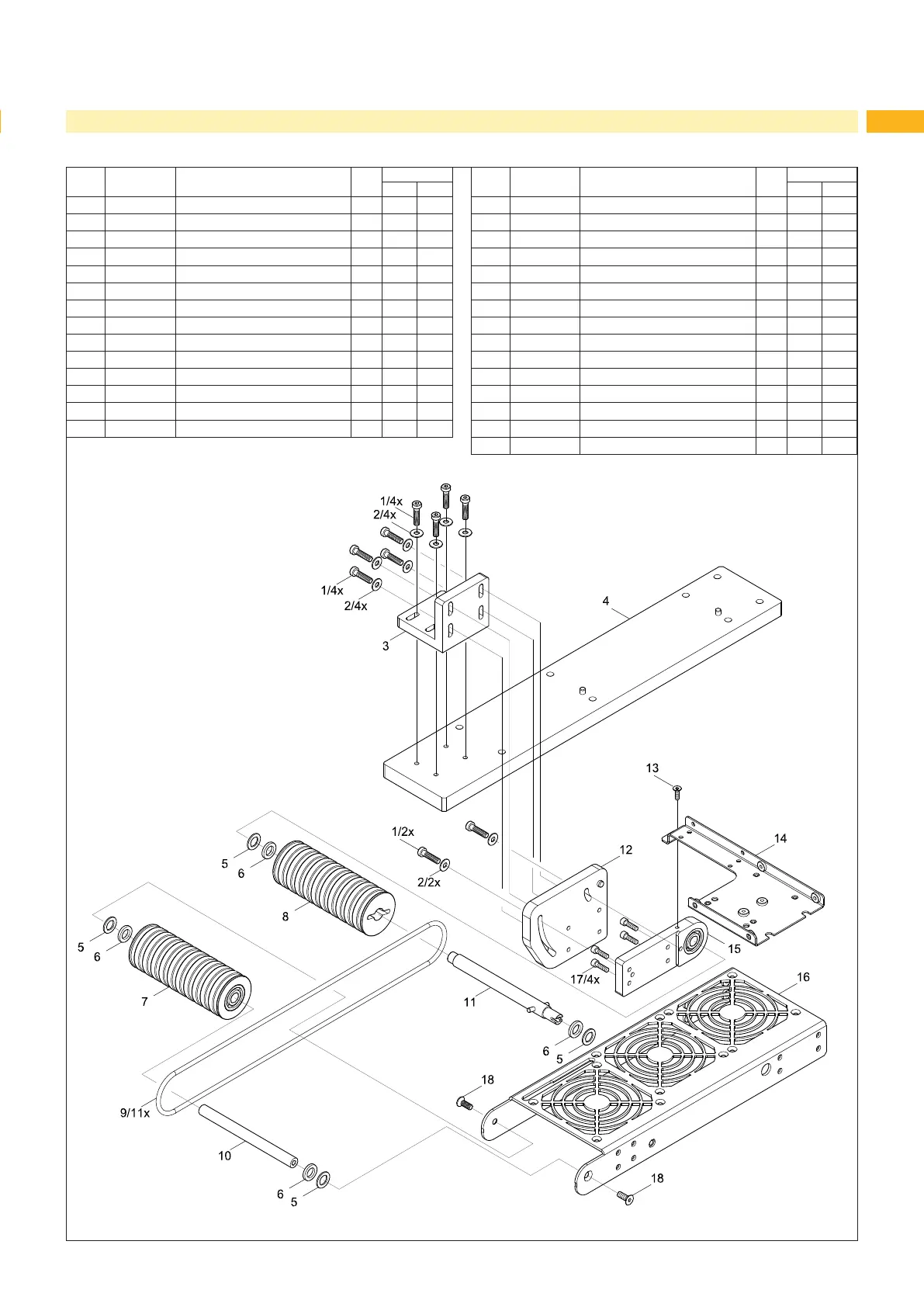

Fig.10 Support Assembly / Transport - Spare Parts
No. Part-No. Description PU Serial No.
from to
1 5902282.001 Screw DIN7984 M5x20 10
2 5903041.001 Washer DIN125-A5.3 10
3 5971488.001 Side Plate 1
4.1 5971679.001 Support L 1
4.2 5971507.001 Support R 1
5 5903059.001 Washer DIN988-10x16x0.5 10
6 5903054.001 Washer DIN988-10x16x1 10
7.1 5971492.001
ProleShaft5314 1
7.2 5972134.001
ProleShaft5316
8.1 5971501.001 ProleShaftMotorSide5314 1
8.2 5972253.001
ProleShaftMotorSide5316
9 5906309.001 Circular Belt AA=330 4.0x737 1
10.1 5971483.001 Axle 5314 1
10.2 5972149.001 Axle 5316
No. Part-No. Description PU Serial No.
from to
11.1 5971491.001 Motor Shaft 1
11.2 5972137.001
12 5971493.001 Adapter Plate 1
13 5902016.001 Screw DIN7991-M4x10 10
14.1 5971696.001 Ground Plate 5314 L 1
14.2 5971698.001 Ground Plate 5314 R
14.3 5972147.001 Ground Plate 5316 L 1
14.4 5972179.001 Ground Plate 5316 R
15 5971689.001 Flange 1
16.1 5971682.001 Base Plate 5314 L 1
16.2 5971692.001 Base Plate 5314 R
16.3 5972129.001 Base Plate 5316 L 1
16.4 5972174.001 Base Plate 5316 R
17 5902241.001 Screw DIN7984-M4x10 10
18 5902240.001 Screw DIN7991-M5x14 10
