CAB a2+ Configuration Instructions

12 Configuration Instructions Edition 5/06
Product description
A2+/A4+/A6+/A8+
1.6.2 Label formats
Before ordering label media, note the following permissible dimensions:

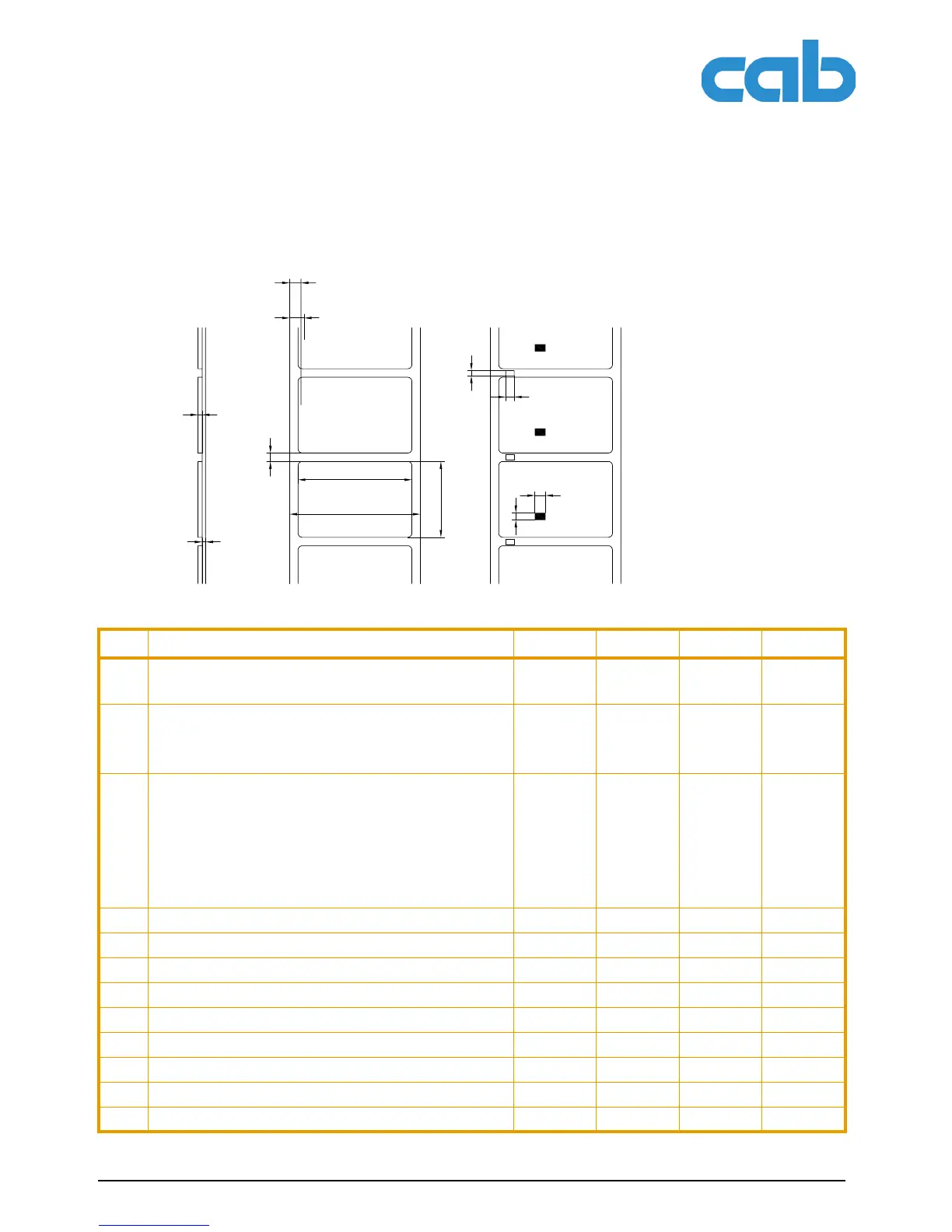

Fig. 3: Label dimensions
Tab. 4:Permissible label dimensions
A
B
C
D
E
F
G
H
I
K
L
M
Dim. Designation, all dimensions in [mm]
A2
+
A4
+
A6
+
A8
+
A Label width
Label width in peel-off mode
4–60
25–60
4–116
25–116
50–176
50–176
50–220
—
B Width of liner or endless medium
With a medium thickness of E = 0.07 – 0.25
With a medium thickness of E = 0.25 – 0.35
25–65
10–25
20–120
10–120
50–180
—
50–235
—
C Label height
Minimum label height
Minimum label height in peel-off mode
Maximum label height with printhead 203 dpi
Maximum label height with printhead 300 dpi
Maximum label height with printhead 600 dpi
5
12
—
2000
—
5
12
2000
2000
1000
6
25
—
2000
—
10
—
—
1000
—
D Label gap 2–1000 2–1000 2–1000 2–1000
E Label thickness 0.07–0.35 0.07–0.35 0.07–0.35 0.07–0.35
F Liner thickness 0.07–0.35 0.07–0.35 0.07–0.35 0.07–0.35
G Distance from 1st heating point to edge of liner 2 2 2 2.5
H Distance from label sensor to edge of liner 5–53 5–53 5–53 5–53
I Width of perforation mark >5 >5 >5 >5
K Height of perforation mark 2–10 2–10 2–10 2–10
L Width of reflex mark >5 >5 >5 >5
M Height of reflex mark 2–10 2–10 2–10 2–10
