22 Configuration Instructions Edition 5/06
Configuration
A2+/A4+/A6+/A8+
4.1.2 Device settings
1. Press the menu button.
2. Select Setup > Machine param.

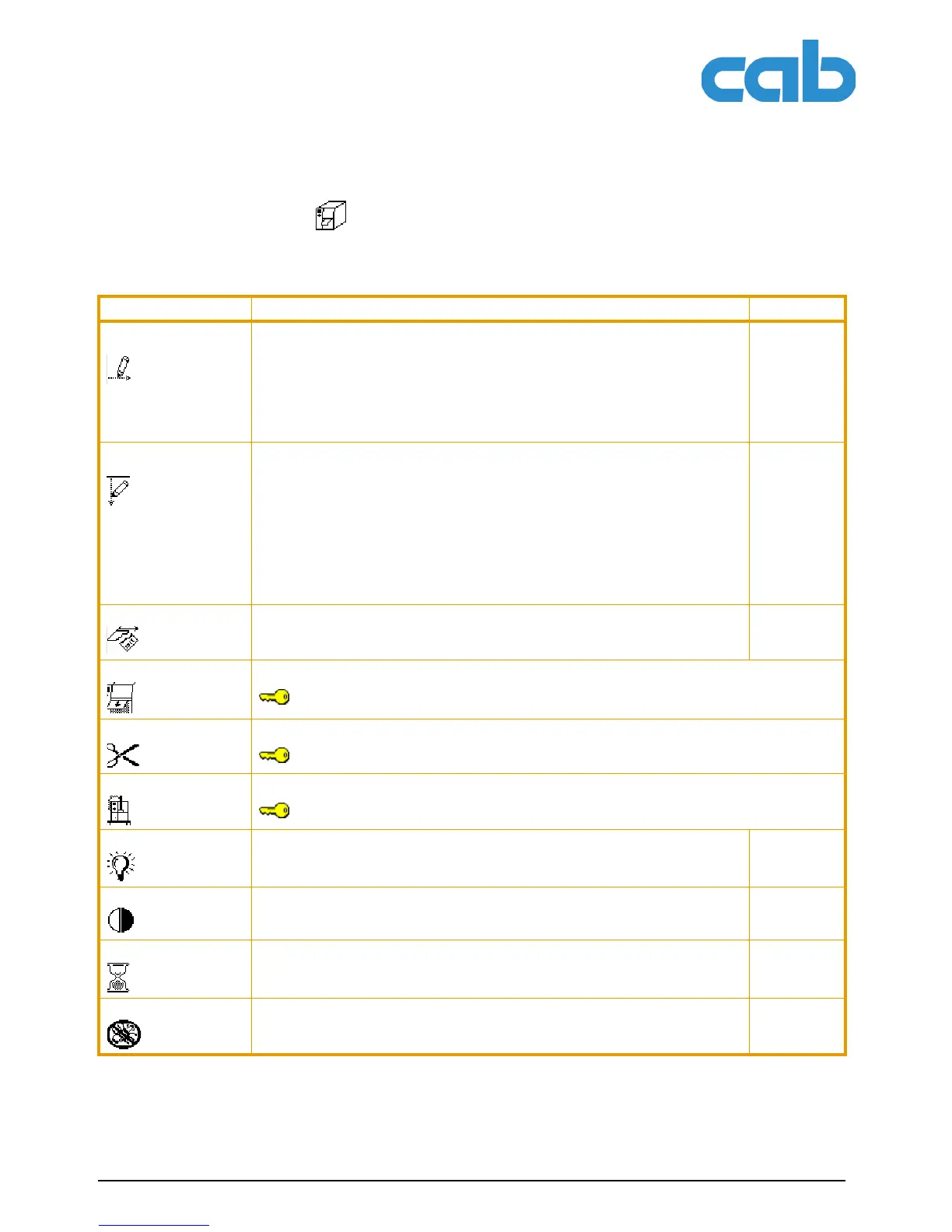

Tab. 9:Parameters of the menu Setup > Machine param.
Parameter Meaning Default
Printhead pos. X Shifting of the entire print image perpendicular to the direction of paper flow.
The absolute shifting of the print image perpendicular to the direction of
paper flow is limited to the difference between the label width and the print-
head width set in the software.
You can also set the Printhead pos. X via software. The offset values
from the Machine param. menu and the software are added together.
0.0 mm
Printhead pos. Y Shifting of the entire print image in the direction of paper flow. With positive
values, printing begins later in the direction of paper flow.
Shifting of the print image in the direction of paper flow also influences the
peel and cutting positions.
⇒ Correct the Peel position and Cut position parameters by the
same value in the opposite direction.
You can also set the Printhead pos. Y via software. The offset values
from the Machine param. menu and the software are added together.
0.0 mm
Tear-off pos. Shifting of the tear-off position in the direction of paper flow. With positive
values, the label strip is transported farther out of the printer.
0.0 mm
Demand sensor Configuration of the optional peel-off module. See documentation of the peel-off module.
If peel-off module is not connected, access only granted with service key inserted!
Cutter Configuration of the optional cutter. See documentation of the cutter.
If cutter is not connected, access only granted with service key inserted!
Applicator Configuration of the optional applicator. See documentation of the applicator.
If applicator is not connected, access only granted with service key inserted!
Brightn. LCD Brightness of the LCD display from 1 to 10 10
Contrast LCD Contrast of the LCD display from 4 to 8. 6
Time Powersave. Time between the last operation and the activation of Powersave mode. 5 min.
Debug mode Operating mode which supports the firmware programmer when localizing
errors.
Off
