Product description
Edition 5/06 Configuration Instructions 9
1.4 Parts of the printer
The following illustrations show the important parts for the example using the A4
+
Label Printer with
internal rewinder (peel-off version). The details of other printer versions may vary. Major differences are
indicated in the following.

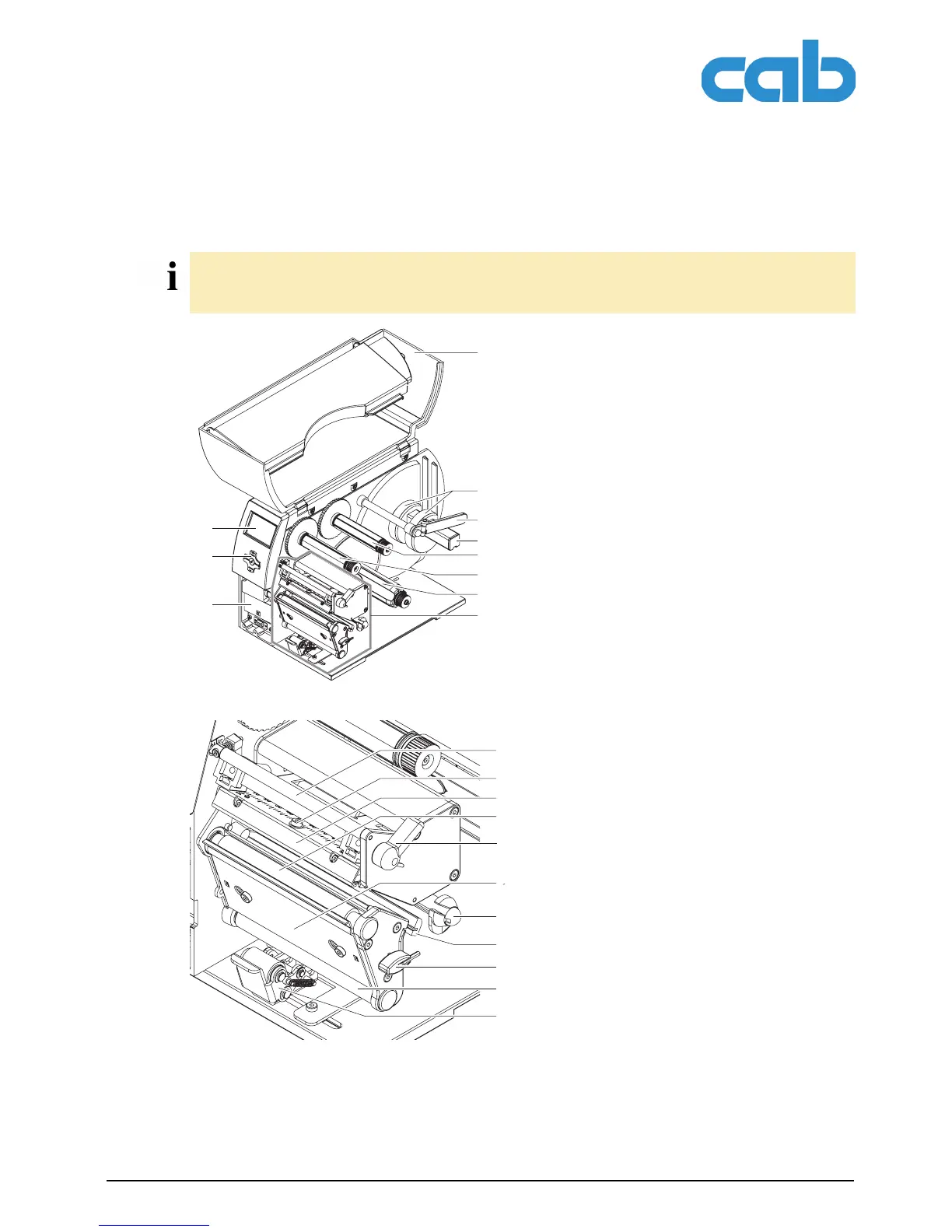

Fig. 1: General overview
Parts of the label printer
1 Cover
2 Core adapter
3 Media Retainer
4
Media Hub
5 Transfer ribbon supply hub
(transfer printers only)
6 Transfer ribbon take up hub
(transfer printers only)
7 Internal rewinder
(peel-off version only)
8 Print unit
9 Mounting surface for accessories, incl.
peripheral connection
10 Navigator pad
11 LCD display
Fig. 2: Print unit for Tear-off mode
Print unit
1 Transfer ribbon deflector
2 Printhead securing screw
3 Printhead mounting bracket with
printhead
4 Print roller
5 Lever for locking printhead
6 Dispense plate
7 Axis with guide ring
8 Label sensor
9
Allen Key (Hexagonal wrench)
10 Rewind assist roller
(peel-off version only)
11 Locking system
(peel-off version only)
1
2
3
5
6
7
8
9
10
11
4
2
3
4
6
7
8
9
1
10
11
5
