20 Operating Instructions Edition 5/06
Loading media
A2+/A4+/A6+/A8+
6.1.6 Winding up the liner in Peel-Off mode

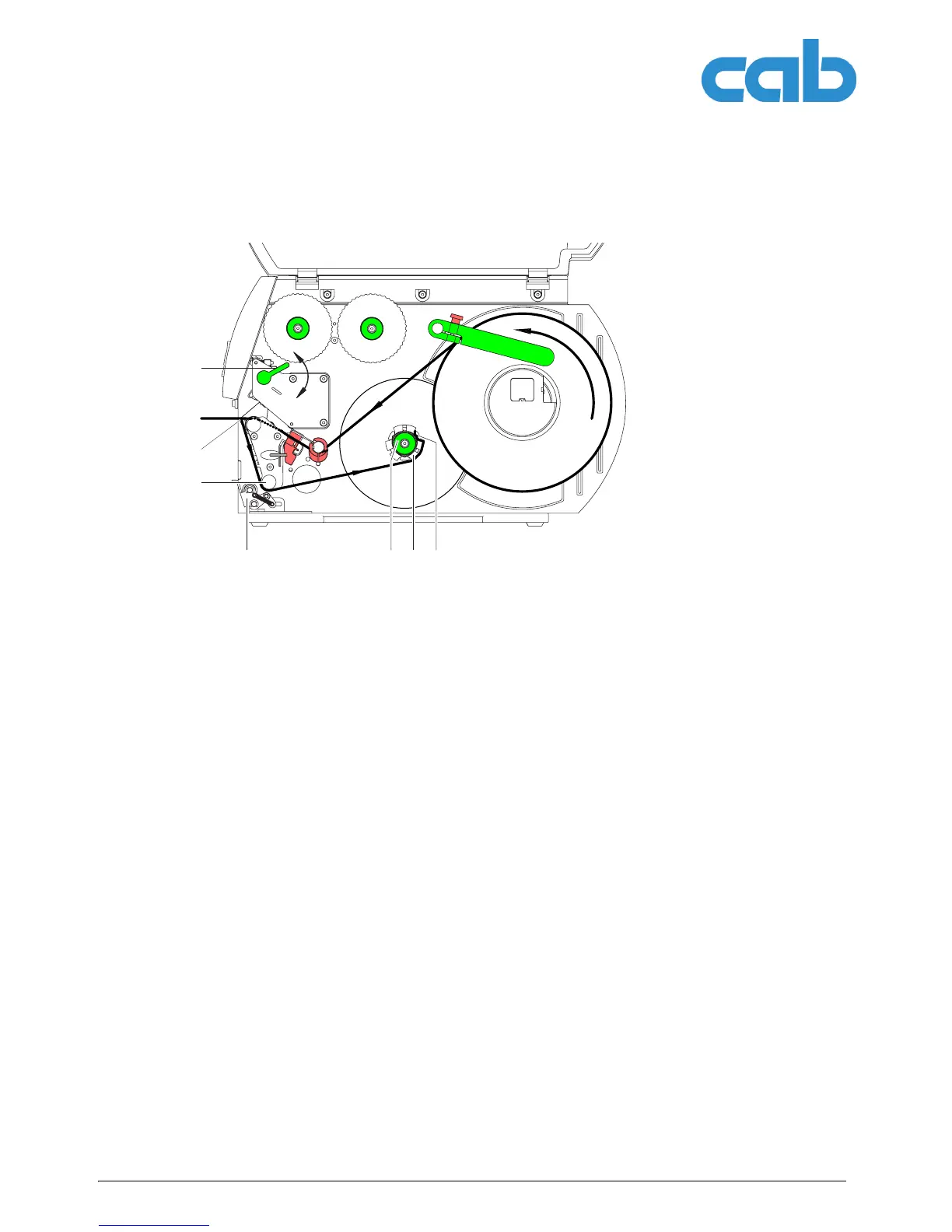

Fig. 8: Guidance of the liner in Peel-Off mode
In Peel-Off mode, the labels are removed after printing, and only the liner is wound up internally.
1. Lift the pinch roller (4) off the rewind assist roller (5).
2. Remove labels from the first 100 mm of the liner.
3. Guide liner to the rewinder (2) around the dispense plate (6) and the rewind assist roller (5).
4. Hold rewinder (2) firmly and turn knob (3) clockwise until it stops.
5. Push liner under a bracket (1) of the rewinder (2) and turn knob (3) counterclockwise until it stops.
The rewinder is fully spread, thus gripping the liner firmly.
6. Turn rewinder (2) counterclockwise to tighten the liner.
7. Slightly loosen top fixing screw at the locking system with hexagonal wrench and position the pinch
roller (4) centrally to the liner (see ”6.7” on page 25).
8. Close the locking system and tighten top fixing screw at the locking system.
9. Turn lever (7) clockwise to lock the printhead.
The label roll is loaded for use in Peel-Off mode.
6
2 13
5
4
7
