6.2 Removing the wound roll

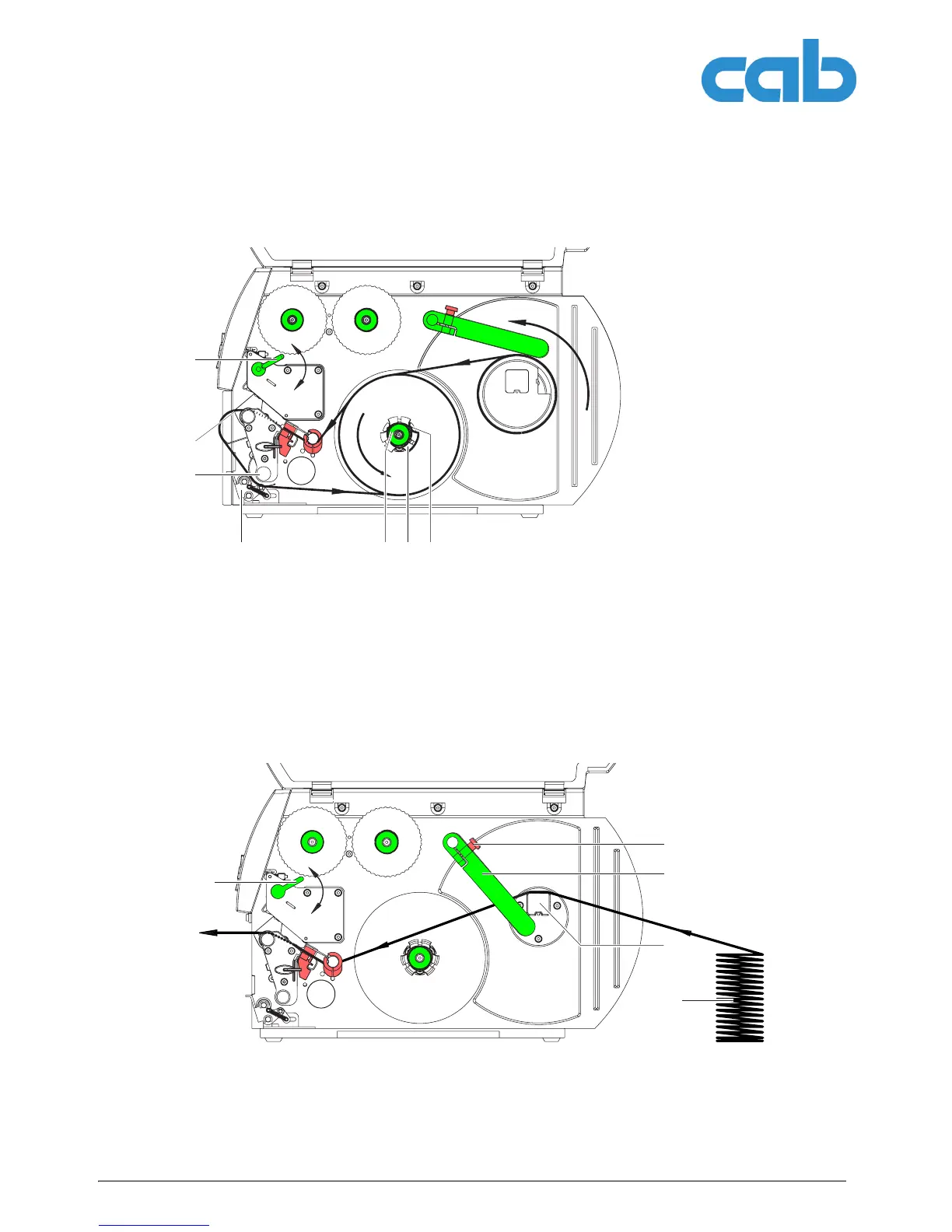

Fig. 10: Removing the wound roll
1. Turn lever (7) counterclockwise to lift the printhead.
2. Cut label strip and wind it fully around the rewinder (2).
3. Hold rewinder (2) firmly and turn knob (3) clockwise.
The rewinder spindle relaxes and the wound roll is released.
4. Remove wound roll from rewinder (2).
6.3 Loading fanfold labels
Fig. 11: Feed path of paper with fanfold labels
1. Loosen knurled screw (1) and slide guide (2) outward completely and swivel it downward past the roll
retainer (3).
2. If core adapters are mounted on the roll retainer (3), remove core adapters (see ”6.1.1” on page 16).
3. Position label stack (4) behind the printer. Ensure that the labels on the strip are visible from above.
2 13
5
4
6
7
5
1
2
4
3
