A2+/A4+/A6+/A8+
Loading media
Edition 5/06 Operating Instructions 21
6.1.7 Setting the head locking system
The printhead is pushed on via two plungers. The location of the outer plunger must be set to the width
of the label medium used so as to
• achieve even print quality across the entire label width
• prevent wrinkles in the feed path of the transfer ribbon
• prevent premature wearing of the print roller and printhead.

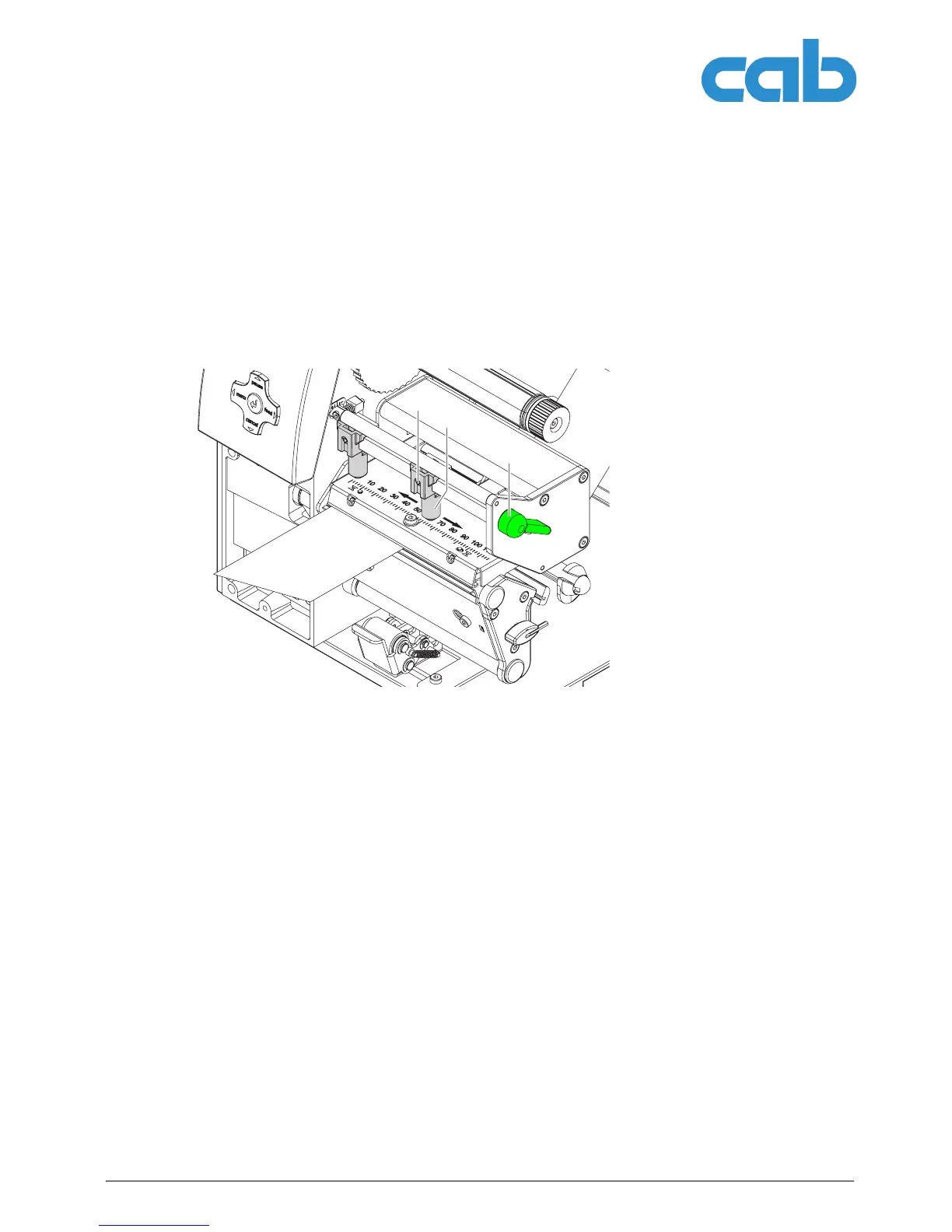

Fig. 9: Setting the head locking system
1. Turn lever (3) clockwise to lock the printhead.
2. Loosen threaded pin (1) at outer plunger (2) with hexagonal wrench.
3. Position outer plunger (2) above the outer label edge and tighten threaded pin (1).
1
2
3
