4.1.4 Guiding the Liner to the Internal Rewinder
5 7 6
2 3 41

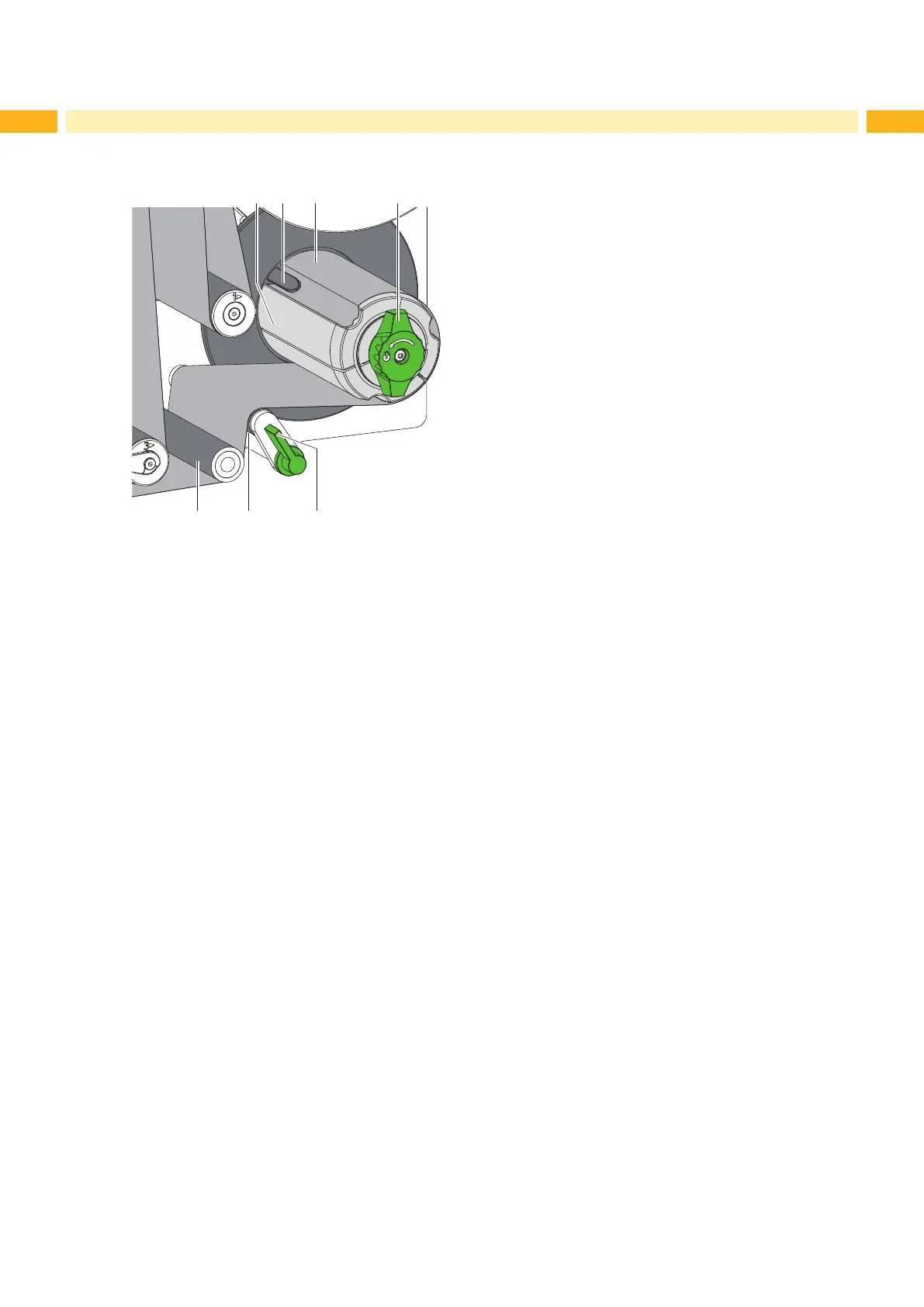

Fig. 13 Guiding the liner to the internal rewinder
1. Turn lever (7) clockwise to lift the locking system (6) from the transport roller (5).
2. Hold rewinder (1) rmly and turn knob (4) clockwise until it stops.
3. Guide liner coming from the peel-off edge around the transport roller (5) and the locking system (6) to the internal
rewinder (1).
4. Push liner under a bracket (2) of the rewinder (1) and turn knob (4) counterclockwise until it stops.
The rewinder is fully spread, thus gripping the liner rmly.
5. Turn rewinder (1) counterclockwise to tighten the liner.
6. Turn lever (7) counterclockwise to lock the transport system (5,6).
