CAB Hermes+ User Manual

24
25
8 Labels
8.1 Label Dimensions

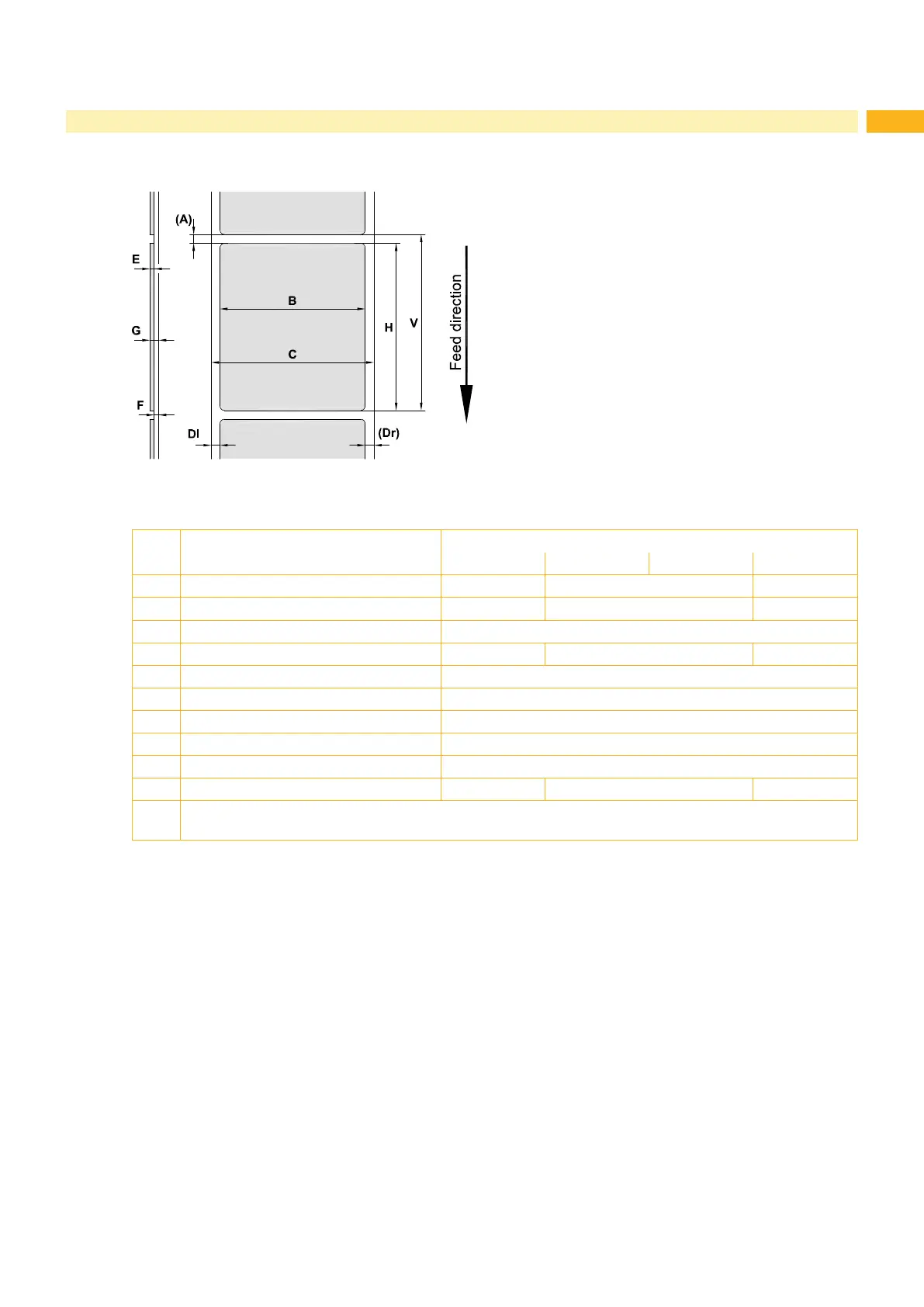

Fig. 18 Label dimensions
Dim. Designation Dim. in mm
Hermes+ 2 Hermes+ 4 Hermes+ 4.3 Hermes+ 6
B Label width 4 - 58 10 - 114 50 - 174
H Label height 4 - 200 8 -250 25 -250
A Label distance > 2
C Width of liner 25 - 62 25 - 118 54 - 178
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Label thickness 0,025 - 0,25
F Liner thickness 0,03 - 0,1
G Thickness label with liner 0,055 - 0,35
V Label feed > 6 > 10 > 27
• Small label sizes, thin materials or strong glue can lead to limitations.
Critical applications need to be tested and cleared.
Table 8 Label dimensions

CAB Hermes+ Specifications

General

Power Supply	100 - 240 V AC, 50/60 Hz
Print Technology	Thermal Transfer
Resolution	203 dpi
Interfaces	USB, Ethernet
Display	LCD
Memory	8 MB RAM
Supported Barcodes	1D and 2D barcodes
