CAB Hermes+ User Manual

26
27
8.3 Reex Mark Dimensions

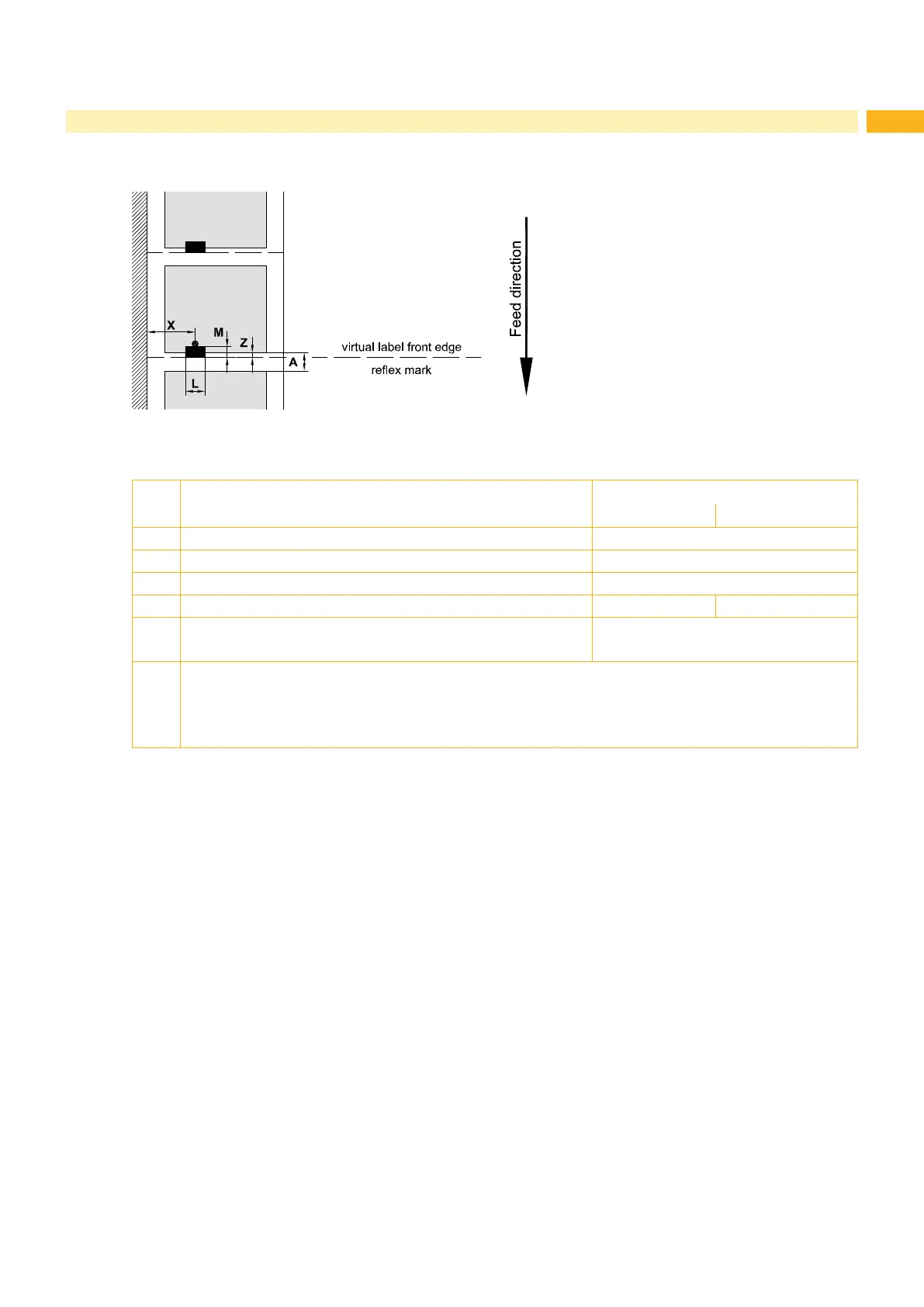

Fig. 20 Reex mark dimensions
Dim. Designation Dim. in mm
Hermes+ 2 Hermes+ 4 / 4.3 / 6
A Label distance > 2
L Width of reex mark > 5
M Height of reex mark 3 - 10
X Distance mark - material edge 2 - 26 2 - 47
Z Distance virtual label front edge - actual label front edge
 Adjust software settings
0 up to A / recomm. : 0
• Reex marks must be on the back side of the material (liner).
• Label sensor for reex marks on the top side on request.
• Specication is valid for black marks.
• Recognition of colored marks may fail.  Preliminary tests are needed.
Table 10 Reex mark dimensions
8 Labels

CAB Hermes+ Specifications

General

Power Supply	100 - 240 V AC, 50/60 Hz
Print Technology	Thermal Transfer
Resolution	203 dpi
Interfaces	USB, Ethernet
Display	LCD
Memory	8 MB RAM
Supported Barcodes	1D and 2D barcodes
