CAB Hermes+ User Manual

6 6
2.1 Device Overview
3
1
2
2
4
5
6
7
8
9
10
11
12

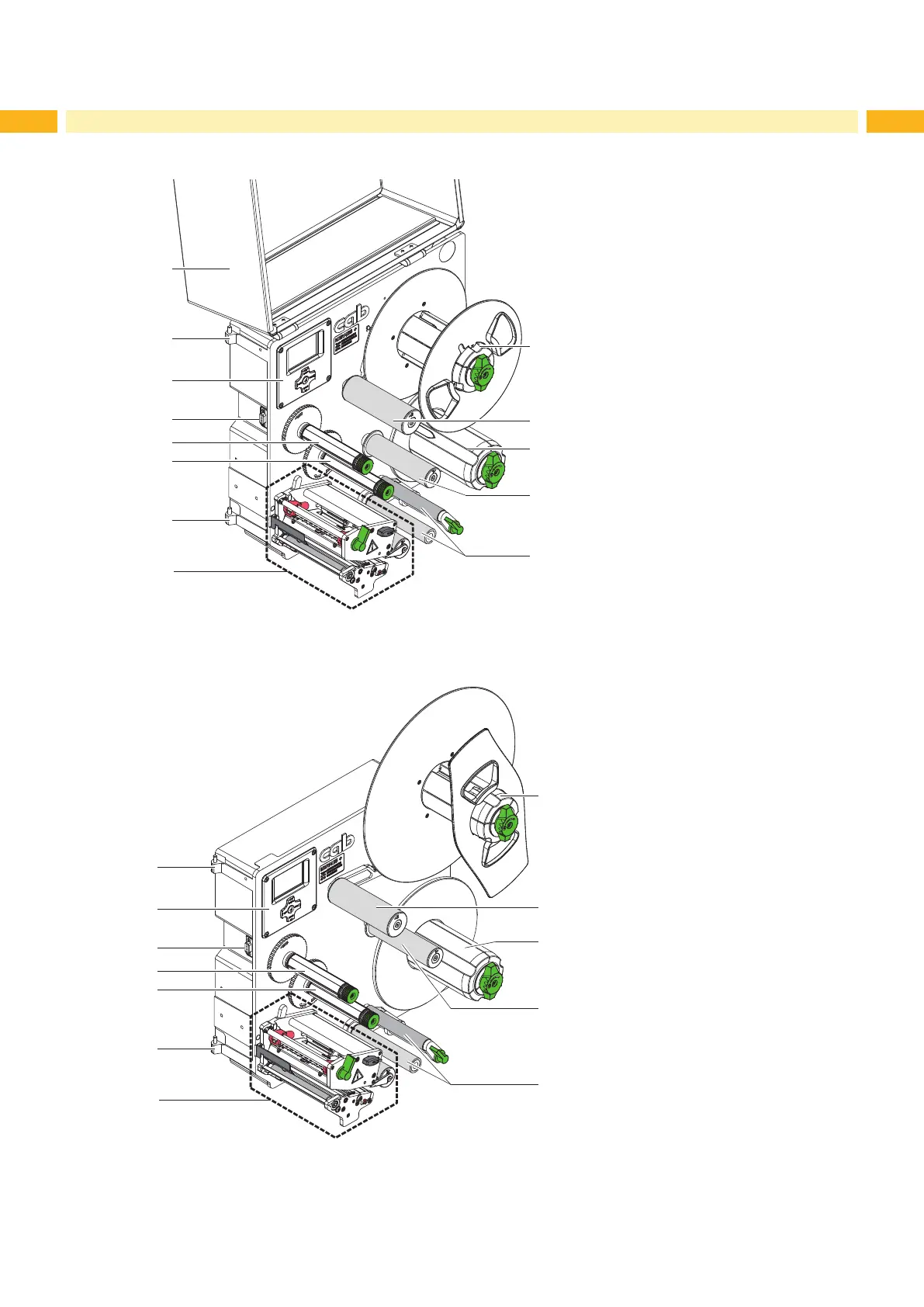

1 Cover (Option)
2 Hinges for cab-applicators
3 Control panel
4 Interface for cab-applicators
5 Ribbon take-up hub
6 Ribbon supply hub
7 Print mechanism
8 Roll retainer
9 Pivot arm with guide roller
10 Internal rewinder
11 Guide roller
12 Transport system
Fig. 2 Overview Hermes+ -2
3
2
2
4
5
6
7
8
9
10
11
12
2 Hinges for cab-applicators
3 Control panel
4 Interface for cab-applicators
5 Ribbon take-up hub
6 Ribbon supply hub
7 Print mechanism
8 Roll retainer
9 Pivot arm with guide roller
10 Internal rewinder
11 Guide roller
12 Transport system
Fig. 3 Overview Hermes+ -3
2 Installation

CAB Hermes+ Specifications

General

Power Supply	100 - 240 V AC, 50/60 Hz
Print Technology	Thermal Transfer
Resolution	203 dpi
Interfaces	USB, Ethernet
Display	LCD
Memory	8 MB RAM
Supported Barcodes	1D and 2D barcodes
