The different logical level transfers present on the board are not represented in the
synopsis.

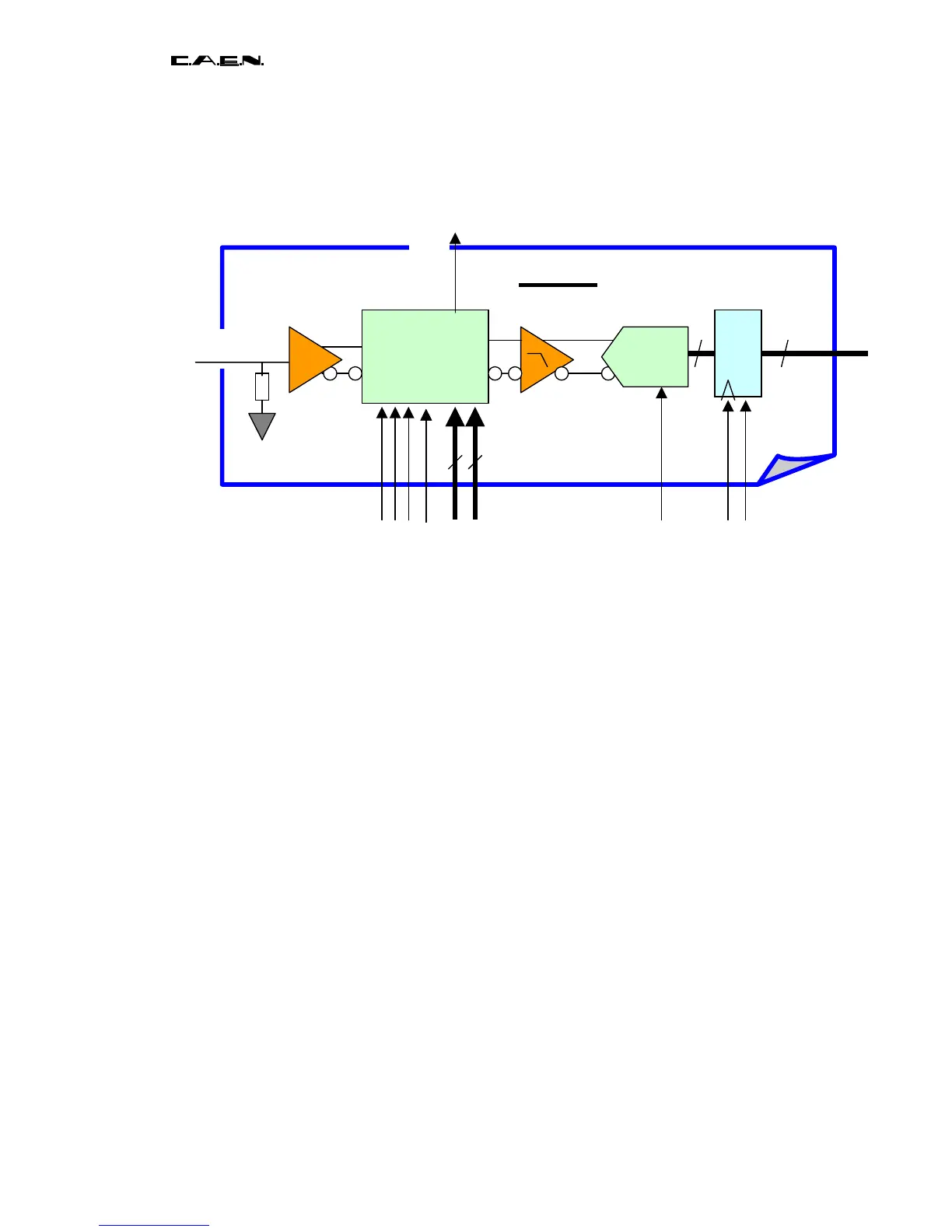

Fig. 4.4: Synopsis of an acquisition channel on the MATACQ board
The elementary block of the analog acquisition is represented in Fig 4.4. It includes:
The 50-Ohm adaptation of the input.
A large bandwidth amplifier making it possible to feed the MATACQ chip in differential.
The MATACQ chip.
A bandwidth limiter filter.
The 12bit-5MHz ADC, differential.
A register allowing the multiplexing of the data coming from the different channels
towards the RAM.
Fast Control
ADCout
BUS
Sample_Reg
MATRIX
