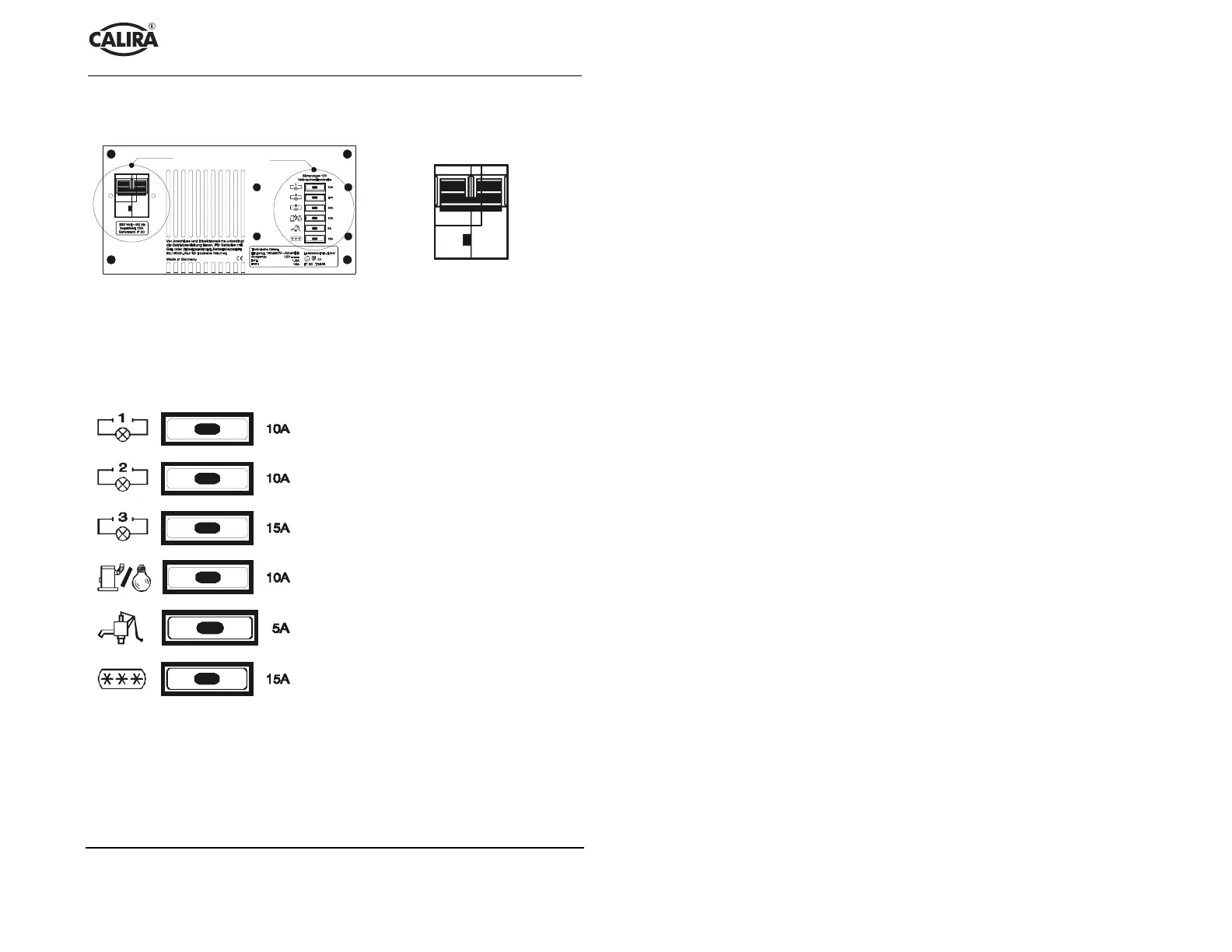

Device top and fuses
Circuit breaker 230 volt
Detail A
Detail B
Fig. 1: Device top Fig. 2: Detail A
Fuses 12V user circuit Flat plug-in fuse 12 Volt user circuit
User circuit 1 10 A
User circuit 2 10 A
User circuit 3 15 A
Continuous current circuit
(Heating / immediate light)
10 A
Water pump circuit 5 A
Refrigerator circuit 15 A
Fig. 3: Detail B
