41
Connecting the plug connectors
If the cable length exceeds 3 m, it may be advisable to increase its cross-
section by one step. The plug connectors can only be inserted and locked into
the correct socket and in the correct position. Make sure that the locking en-
gages securely. To withdraw the connector plug, the locking must be released
by pressing the two wings together.
Connecting a 6-pole plug connector

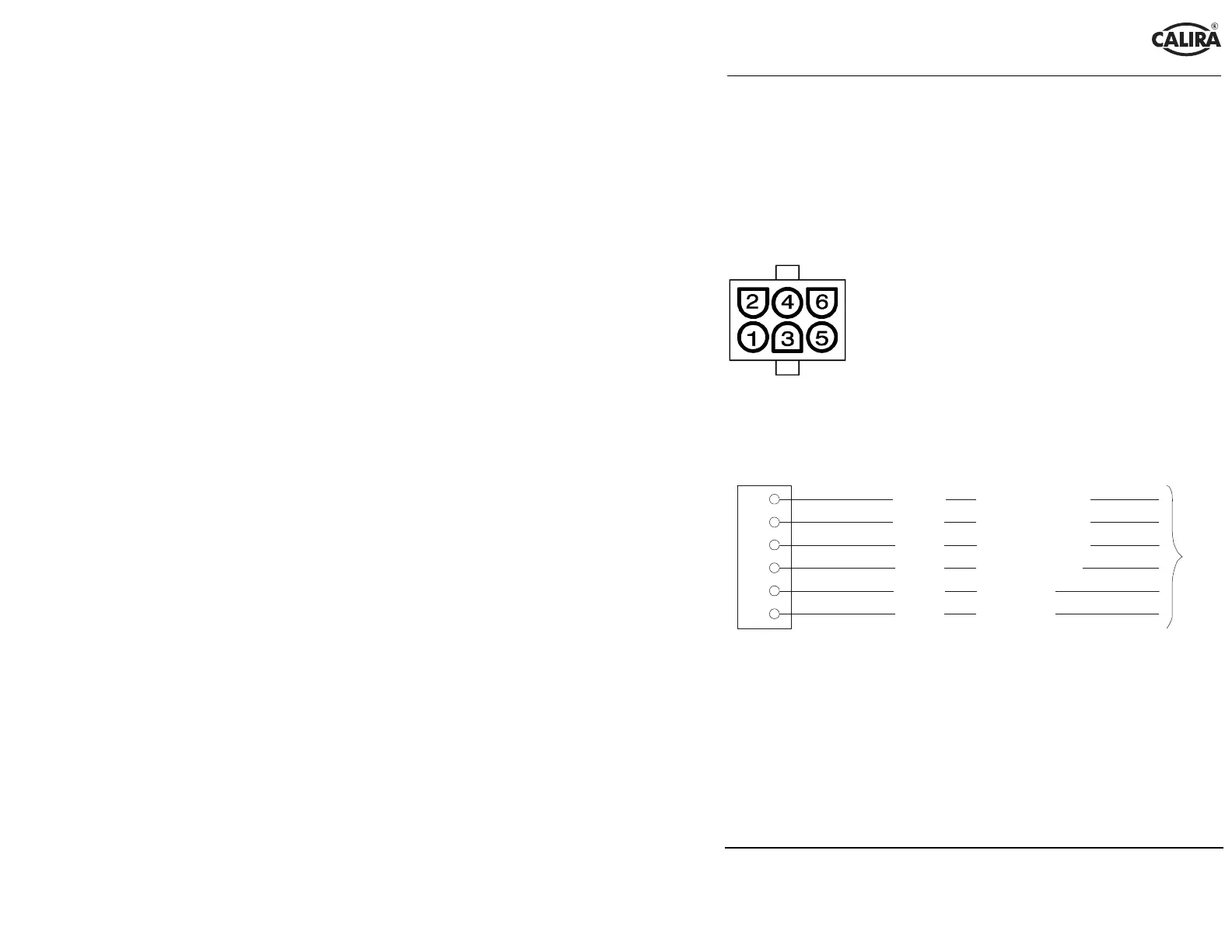

Fig. 9 shows the contacts available in the 6-
connector (view of device side). Connect the 6-
connector according to the connection diagram.
Make sure that the contact pins engage securely with the
plug connector! Loose contact pins can lead to malfunc-
tions or short-circuiting.
Fig. 9: 6-pole connector
First connect the cables to your users, refrigerator, heating etc. Only then make
the connection to the device. Insert the 6-pole plug connector into the socket
provided on the device (Fig. 4, pos. 8).
1
2
3
4
5
6
Water pump
Permanent current
+
refrigerator
1,5 mm
2
2,5 mm
2
1,5 mm
2
1,5 mm
2
1,5 mm
2
1,5 mm
2
+
12 V consumer 3
+
12 V consumer 2
+
12 V consumer 1
Fig. 10: Connection diagram 6-pole plug connector
