Device front / connections
1
2
3
4
5
6
8
7
9
10

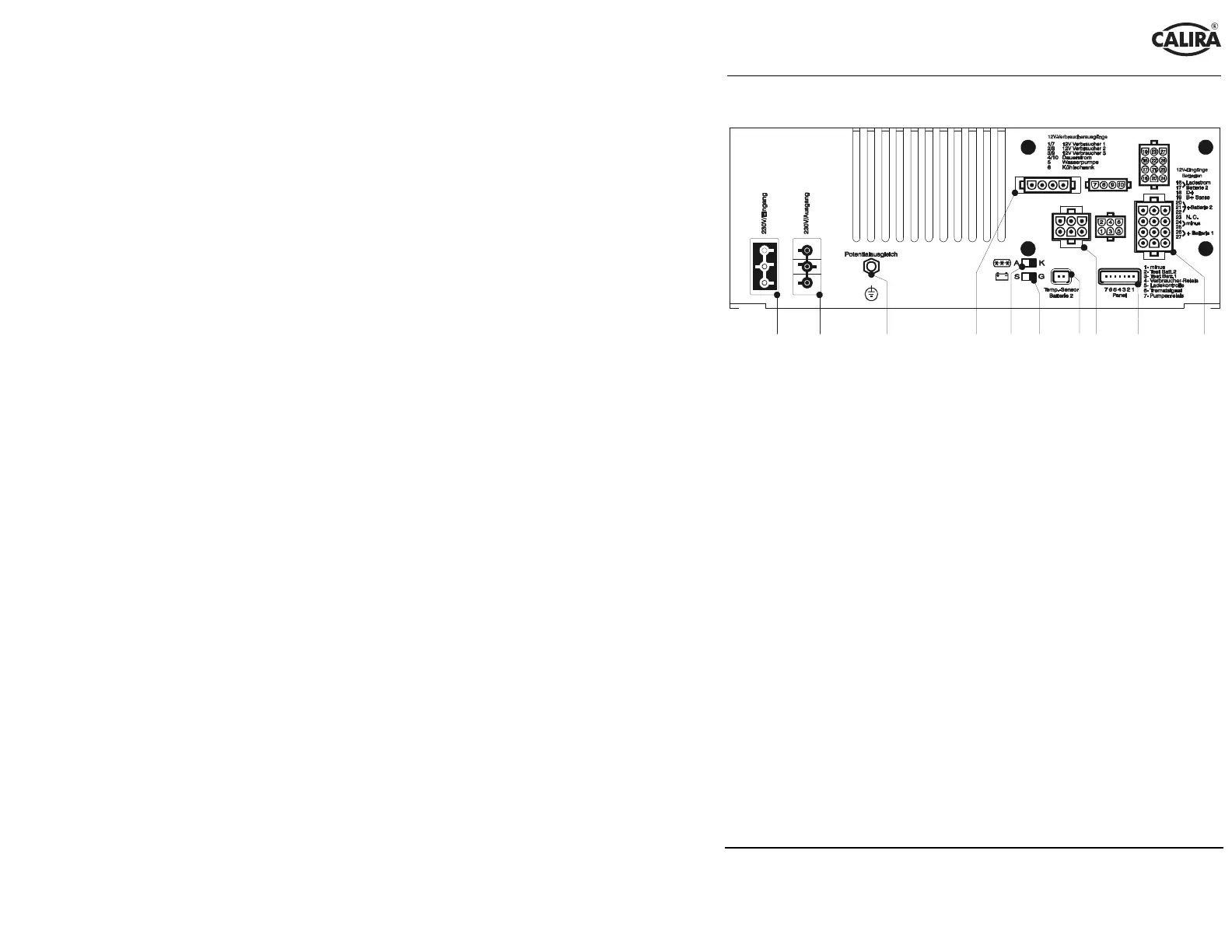

Fig. 4: Device front / connections
1 230 Volt input 6 AGM / gel battery changeover
switch - liquid electrolyte battery
2 230 volt output 7 Connection for temperature sensor
3 Potential equalisation 8 12 V output consumer
4 12 V output consumer 9 Board Control connection
5 Refrigerator absorber changeover
switch - compressor
10 12 Volt battery input
See connection section for more details!
12 volt outputs
Consumer
The output to the consumers (fig.4, Pos. 4 and 8, contact 1 to 3 and 7 to 9) only
carry +12 volt, if the user relay has switched on. The consumer relay only
switches on if +12 V control voltage is applied to contact no. 4 of the 7 pole
plug. User circuits 1 / 7 and 2 / 8 are each protected with a 10 A fuse, and user
circuits 3 / 9 are protected with a 15 A fuse.
