Connecting a 12-pole plug connector
Fig. 13 shows the contacts available in the 12-pole plug
connector (view of device side). Connect the 12-
pole plug
connector to the starter battery and supply battery in
accordance with the connecting diagram. Make sure that
the contact pins engage securely with the plug connector!
Loose contact pins can lead to malfunctions or short-
circuiting. The fuses protect the circuits. They should be
installed near the plus terminals of the batteries.

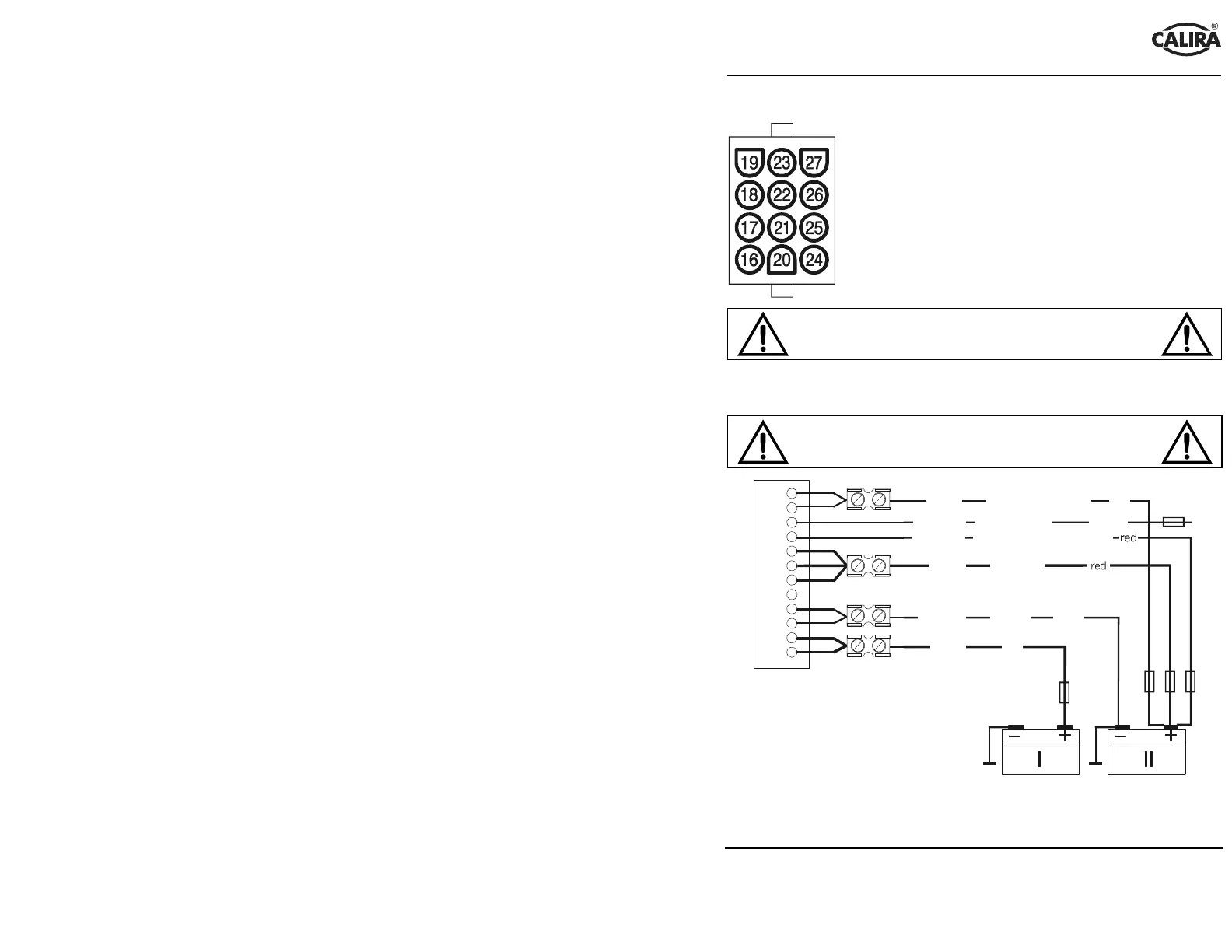

Fig. 13: 12-pole connector

1.*0
 #

Insert the 12-pole plug connector into the socket provided on the device (Fig.
10, pos. 4).

&**
*

16
17
18
19
20
21
22
23
24
25
26
27
2A
2A 40A 25A
40A
6mm
2
+
supply
6mm
2
red
0,75mm
2
0,75mm
2
B+ measuring cable/ test
4mm
2
+ charging current red
4mm
2
minus
blue
D+ generator
brown
12 V battery
(supply)
12 V battery
(start)
Fig. 14: Connection diagram 12-pole plug connector
