4. Install the heat deflector above or below the mounting frame (typically above) as follows:
a. Orient the deflector with the baffle directly above the mounting frame's top bracket.
b. Position the deflector against the rack at the identified location, aligning the
deflector's mounting holes with counterpart holes on the rack.
c. Attach the deflector to the rack using (4) supplied mounting screws (2 per side).
After the vertical mounting frame is installed, you can install Calix E7-2 units onto the frame
as required. Mount the E7-2 chassis with its right side (fan tray) on the bottom, to direct
airflow upward.
To install an E7-2 with the ETSI rack mounting kit

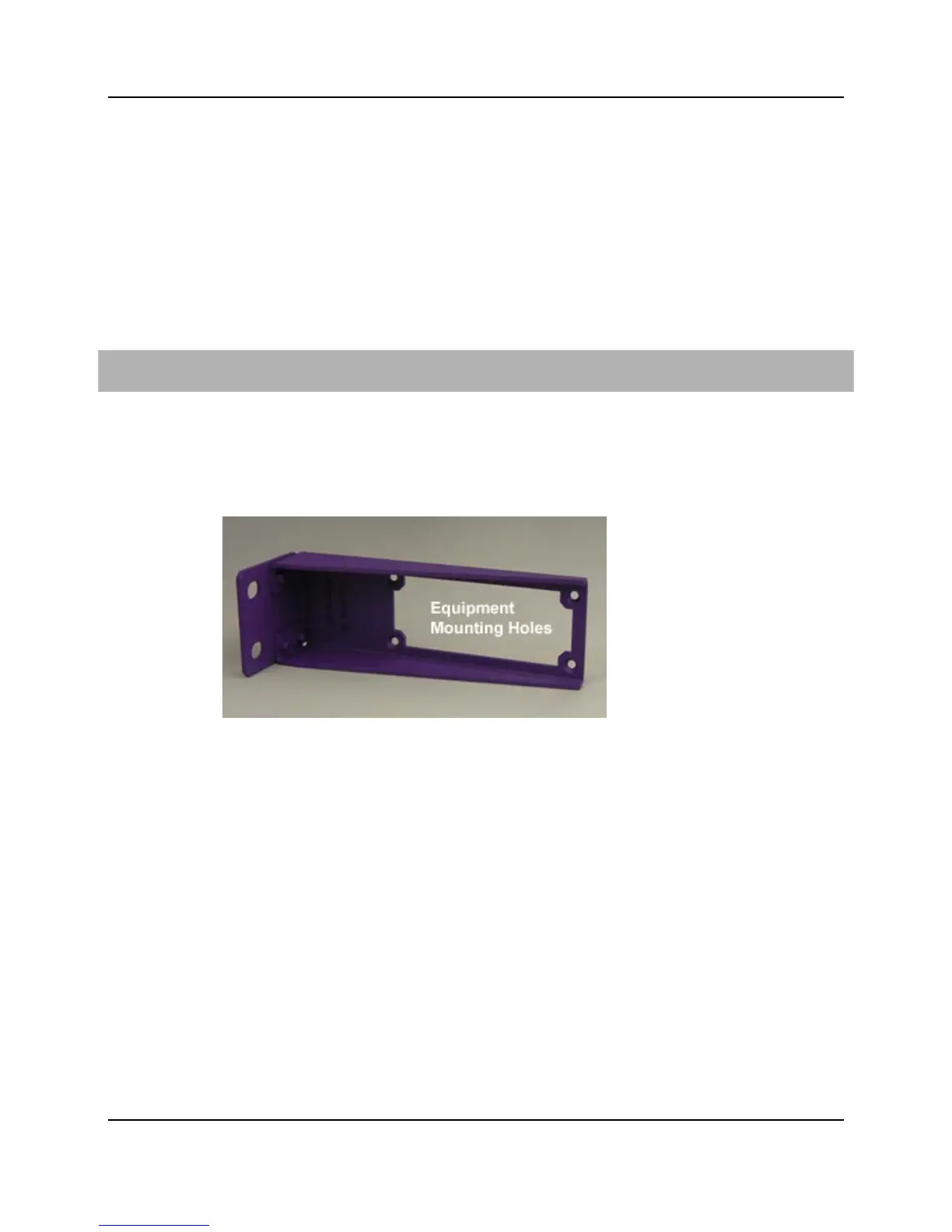

1. Get the pair of ETSI rack mounting ears from the installation kit.
2. Attach each mounting ear to the E7-2 chassis as follows:
a. Position the bracket against the side of the chassis, aligning the bracket's (4)
equipment mounting holes with the counterpart holes on the chassis.
b. Attach the mounting ear to the E7-2 chassis using (4) supplied flat head screws.
3. Mount the E7-2 chassis onto the equipment rack:
a. Identify the E7-2 mounting location on the rack.
b. Position the E7-2 chassis against the rack at the identified location, aligning its ear
holes with the counterpart holes on the rack.
c. Install (4) mounting screws to secure the unit in place.
