Wiring the BITS Timing Interface
The E7-2 supports synchronization with an external clock source via timing inputs located
on the E7-2 rear panel. The E7-2 accepts a standard DSX-level timing source (DS1/T1
format only, not 64 kbps composite clock format) and should be set to ESF/B8ZS. Wire the
E7-2 timing inputs to a Building Integrated Timing System (BITS) clock source using
shielded cable.
Calix recommends providing traceable clock synchronization for E7-2 GPON applications.

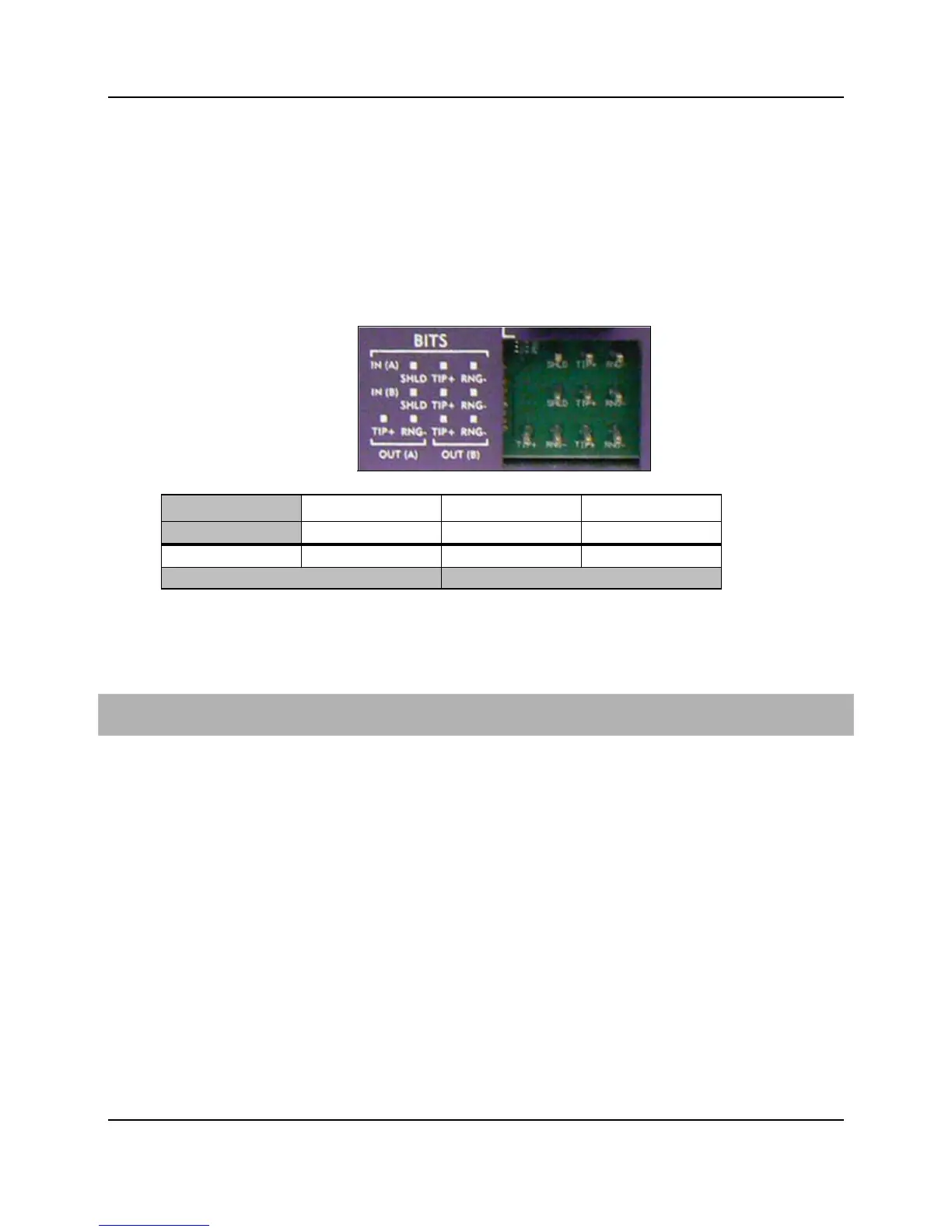

IN (A)
SHLD TIP+ RNG-
You can link up to ten collocated E7-2 shelves to share a BITS timing input. Calix offers a
connectorized daisy-chain BITS cable, or you can wire-wrap the individual daisy-chain links
between shelves.
To wire the BITS timing input interface
1. Get up to two 24 AWG shielded 2-wire cables of sufficient length to reach the local
BITS clock interface from the E7-2. Use one cable to provide a single timing input (A
only), or two cables for a redundant input (A + B).
2. Strip approximately one inch (2.54 cm) of insulation from the wire ends.
3. Wire the E7-2 external timing input(s) as follows:
a. Connect the timing wires to the E7-2 BITS IN (A) input position:
Wrap the positive (tip) wire to the TIP+ pin.
Wrap the negative (ring) wire to the RNG- pin.
Wrap the cable shielding to the SHLD pin.
b. To provide a redundant connection to the BITS clock source, repeat Step 3a to wire
the E7-2 BITS IN (B) input position, as required.
4. Route and dress the timing input cable to the local BITS clock interface and connect per
local practice.
