Calorex Pro-Pac PPT45EHC - Page 11

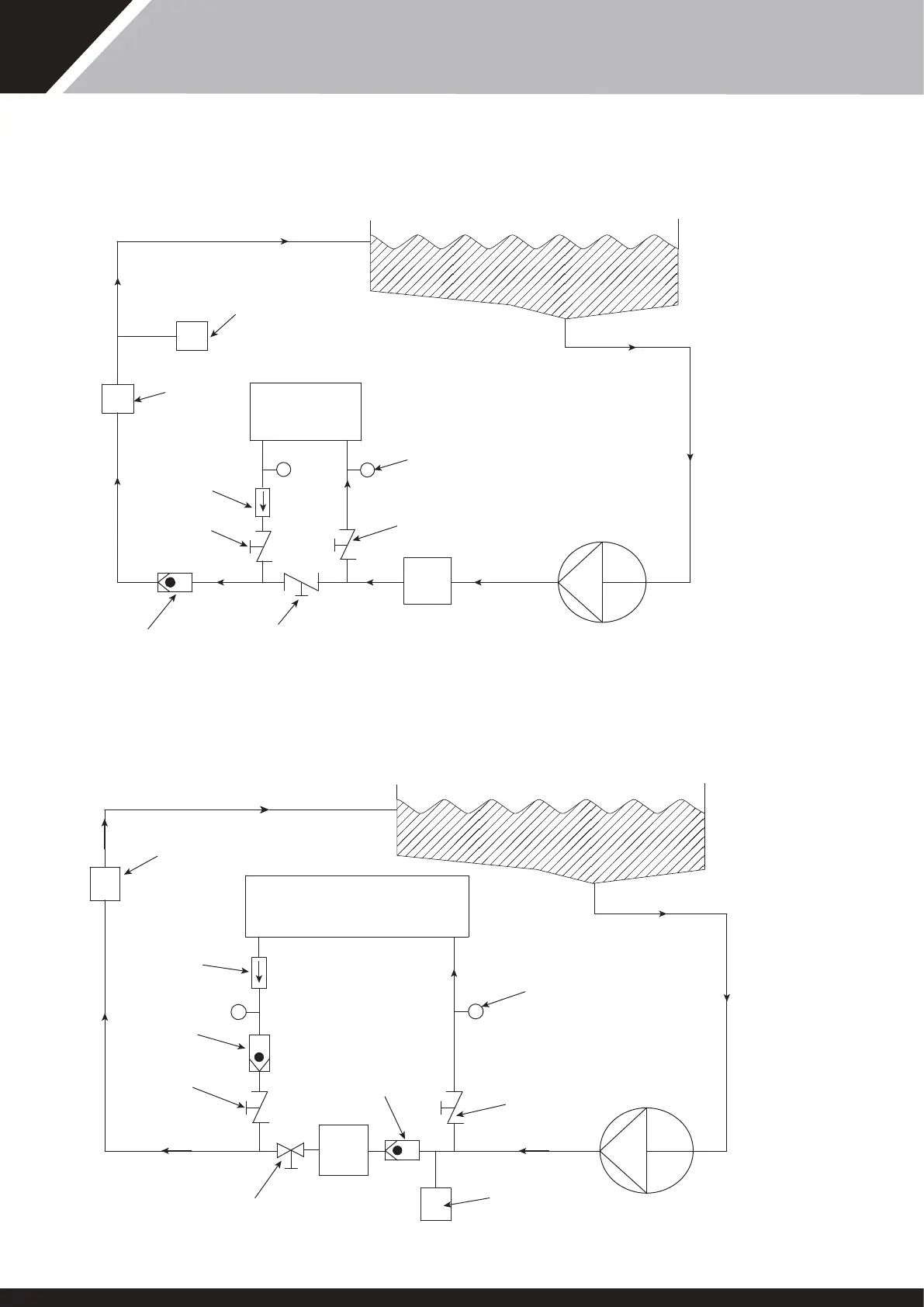

POOL WATER SCHEMATIC (STANDARD)
FILTER
FLOW
SETTING
PRESSURE
GAUGES
METHOD
PUMP
NON
RETURN
VALVE
OR LOOP
SANITISER OR
CHEMICAL DOSING
POSITION AFTER
CALOREX
CALOREX
ENSURE POOL FILTRATION PUMP SELECTION ALLOWS FOR ALL SYSTEM RESISTANCE
ISOLATING
VALVE
‘A’
VALVE ‘C’
BYPASS VALVE
(LOCKING GATE
VALVE TYPE)
AUX
HEATER
IF FITTED
POOL WATER SCHEMATIC (FILTER DOSING)
CALOREX
PUMP
FILTER
ENSURE POOL FILTRATION PUMP SELECTION ALLOWS FOR ALL SYSTEM RESISTANCE
Fig. 3
SANITISER OR
CHEMICAL DOSING
POSITION AFTER
CALOREX
ISOLATING
VALVE
‘B’
FLOW
SETTING
FLOW METER
METHOD
AUX
HEATER
IF FITTED
FLOW
SETTING
FLOW METER
METHOD
NON
RETURN
VALVE
OR LOOP
ISOLATING
VALVE
‘A’
VALVE ‘C’
BYPASS VALVE
(LOCKING GATE
VALVE TYPE)
NON
RETURN
VALVE
OR LOOP
FLOW
SETTING
PRESSURE
GAUGES
METHOD
ISOLATING
VALVE
‘B’
POOL
POOL
11
SD566250 ISSUE 35
