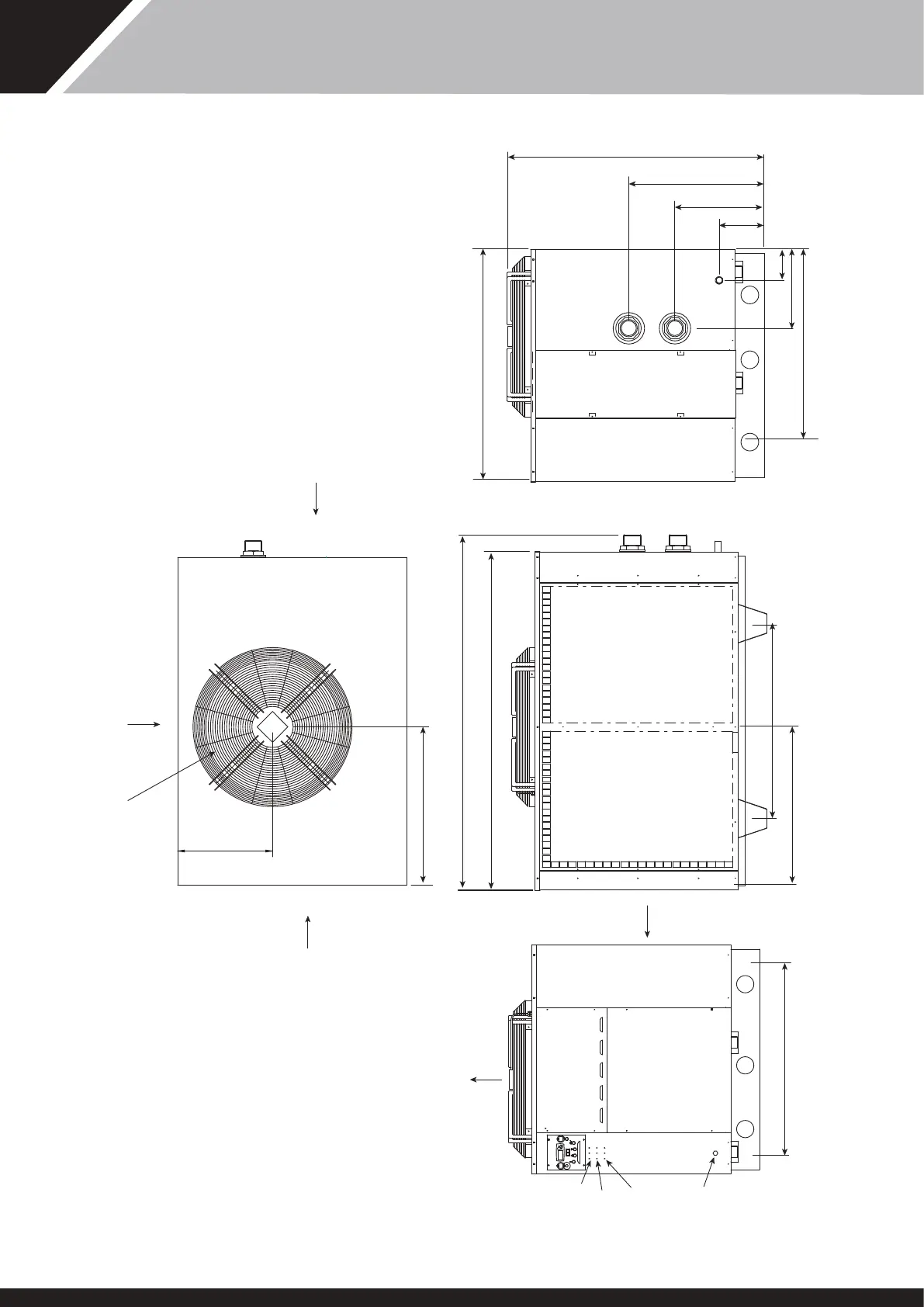

Pro-Pac PPT70BHC
DIMENSIONS IN mm
ISSUE 3
ALLOW 500mm FOR ACCESS TO SERVICE PANELS WATER CONNECTIONS 3" BSPM
CONDENSATE 1½" BSPM DRAIN DOWN 3/4" BSPM
SERVICE PANEL
SERVICE PANEL
NOMINAL FAN
DIAMETER 815
AIR OUT
SERVICE
PANEL
SERVICE PANEL
ELECTRIC BOX
ACCESS
CONSOLE
HP
SWITCH
LP
SWITCH
CHILL
LIMIT
SWITCH
MAINS
IN
SERVICE PANEL
U
P
10
RED
AMBER
RED
AMBER
RED
GREEN
GREEN
CLEAR
*1110
*FIXING CENTRES TO SECURE MACHINE
1840
WATER
OUT
WATER
IN
AIR IN
866
CONDENSATE OUT
POSITION IN BASE
1736
*1000
936
CONDENSATE OUT
POSITION IN BASE
400
1190
SERVICE
PANEL
1310
457
692
232
156
DRAIN
DOWN
