10
All the data and information contained herein is considered subject to change at any time and at our discretion
ENGLISH




43
43
0
0
-/4
-/4
5 6 7
%
%8
%8




43
43
0
0
-/4
-/4

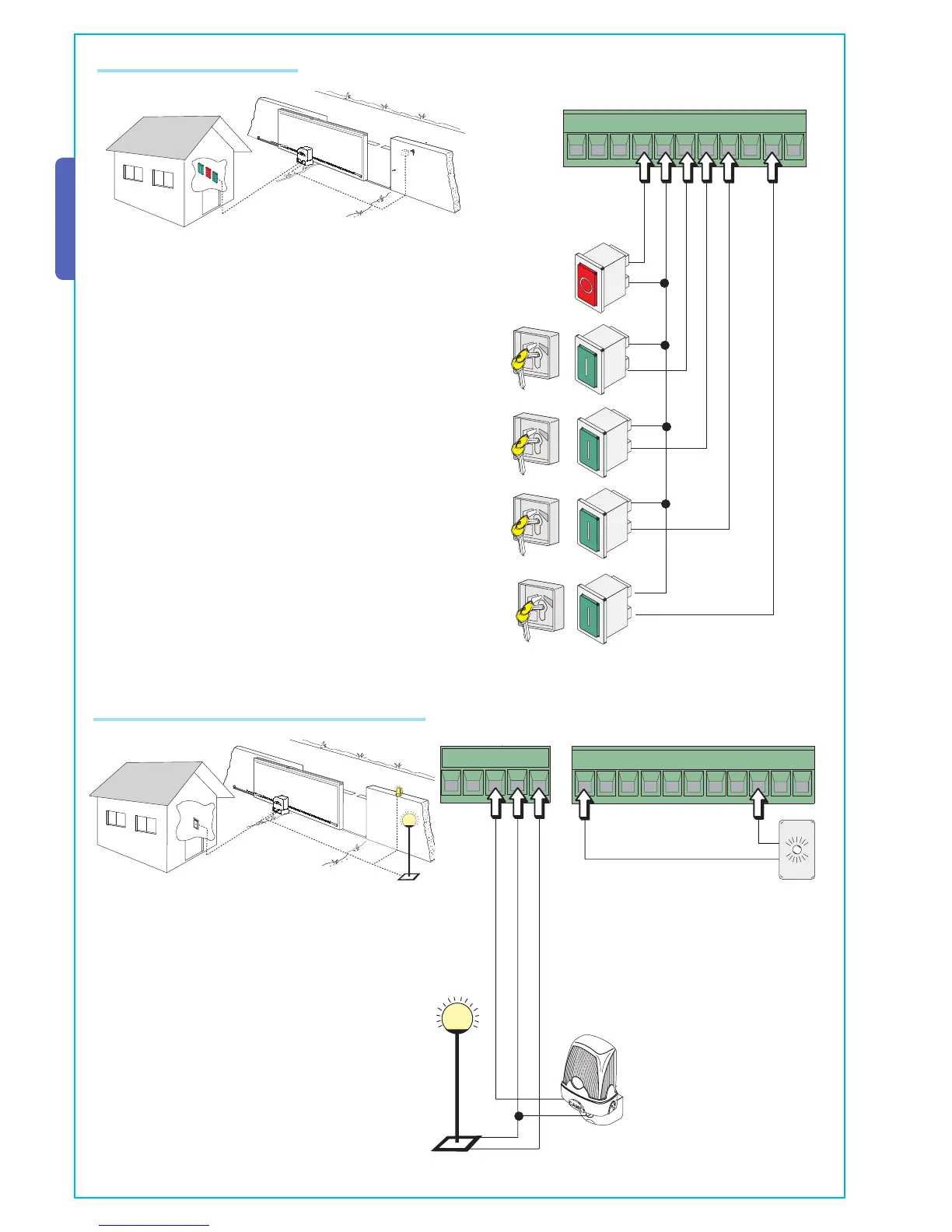

Stop button (N.C. contact) – Gate leaf stop- button with exclusion of automatic
closing phase, resume motion by pressing the push button or remote control.
Key selector and/or opening button (N.0. contact) – Opens the
gate leaf.
Key selector and/or commands button (N.0. contact) – opens and
closes the gate leaf, by pressing the button or turning the key on
the selector, the gate leaf inverts its direction of motion or stops
depending on the chosen selection made on the dip-switches (see
selecting functions, dips 2 and 3).
Connections to the systems
Indicator light when gate is open
(contact output: 24V – 3W max.).
Indicates that gate leaf is open, and
turns off when the gate is closed.
Courtesy lamp (Contact output: 230V – 60 V max.)
– Auxiliary connection for suitably positioned external
lamp to increase lighting of the steering area. It remain
lit for a fixed time of 5 minutes and 30 seconds.
DIP 16 ON – DIP 17 OFF
(not included in the BK800 version)
Phase lamp (Contact output: 230V – 60W max.)
– Auxiliary connection for a suitably positioned external
lamp, to increase lighting of the steering area. It stays
on from the moment the gate leaf starts to open until
it is fully closed (including the automatic closing time).
If the automatic closing function is inserted, the light
stays on only while gate is moving.
DIP 17 ON – DIP 16 OFF
(not included in the BK800 version)
Movement flashing light (Contact
output: 230V – 25W max.)
Flashes during the gate’s opening
and closing phases.
Connections to warning and illumination devices
Key selector and/or partial opening button (N.0. contact) - Opens
the gate leaf for pedestrian access (adjustable using the trimmer
PAR.OP.)
Key selector and/or closing button (N.0. contact) – Closes the
gate leaf.
