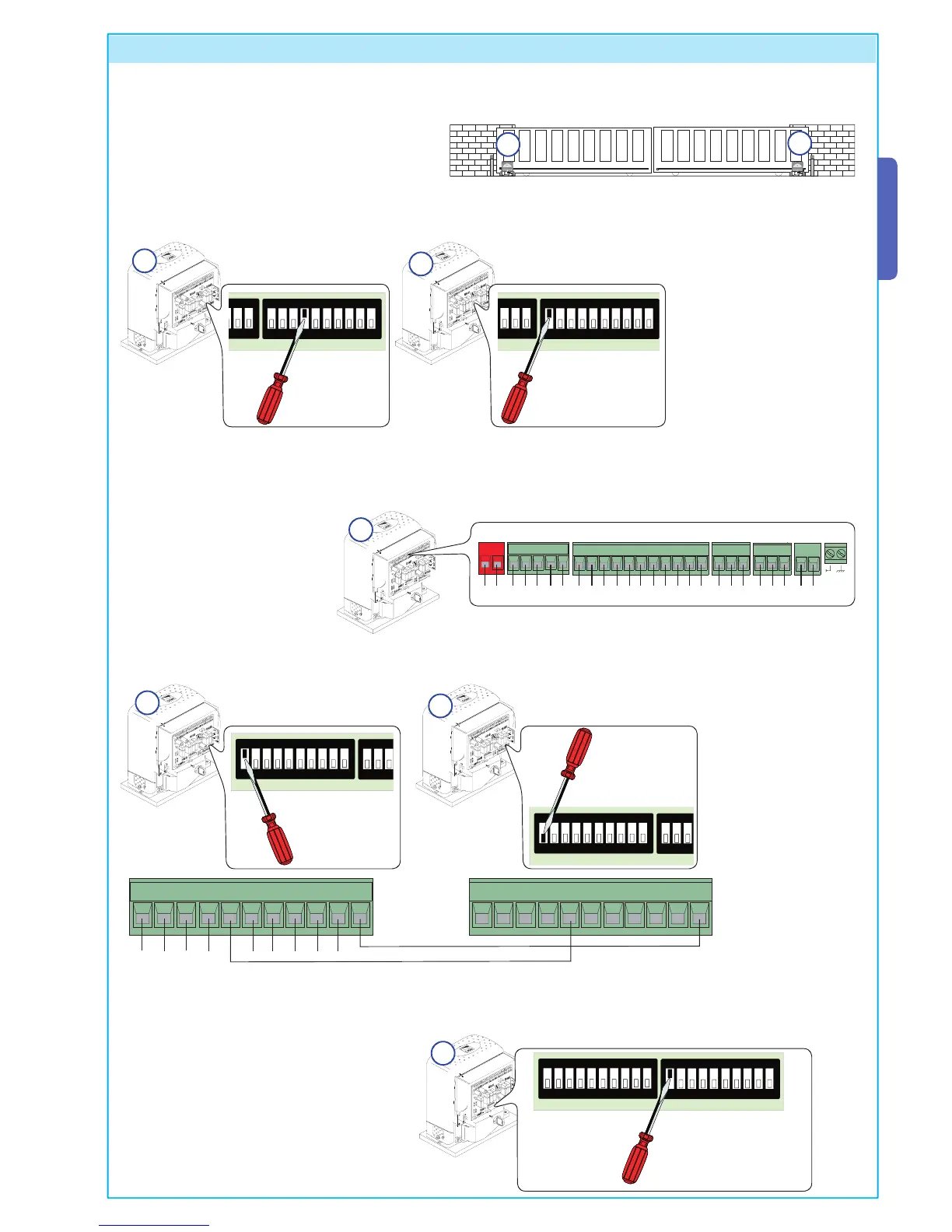

1) Coordinate the direction of gear motors “A” and
“B”, by changing the rotation of motor “B” (see con-
nection for the gear motor and limit switches, p. 9).
2) Establish which motor, “A” or
“B” will be the master (or pilot),
set dip switch 14 to the ON on
position on the control board.
“Master” means the motor that
controls both gates, while on
the control board of the 2nd
motor, position dip switch 11 to
the ON position to place it into
a “slave” state.
N.B.: Make sure that the radio-
frequency board is inserted
only into the Master board.
A
B
8 Connection of two coupled gear motors with single control
A
4) Wire the electrical
connections between
the terminal boards, as
shown in the figure.
Note: make sure that the
automatic closing is trig-
gered by the master and
deactivated in the slave.
5) Make sure that all the dip switches on
the board of motor 2 are OFF, except for dip
switch 11.
Important: adjust the limit switches of the
motors so that the MASTER motor’s gate leaf
closes after that of the SLAVE.
3) Wire the electrical connections
and the normally used selections
only on the MASTER terminal
board;
/.
/.
“SLAVE”
“MASTER”
B
A
“SLAVE”
“MASTER”
/.
/.
/.
/.
B
/.
/.
“SLAVE”
