16
All the data and information contained herein is considered subject to change at any time and at our discretion
ENGLISH
1) On AM transmitters operating at
433.92 MHz (TOP and TAM series),
position the jumper connection on
circuit card AF43S as shown on the
sheet.

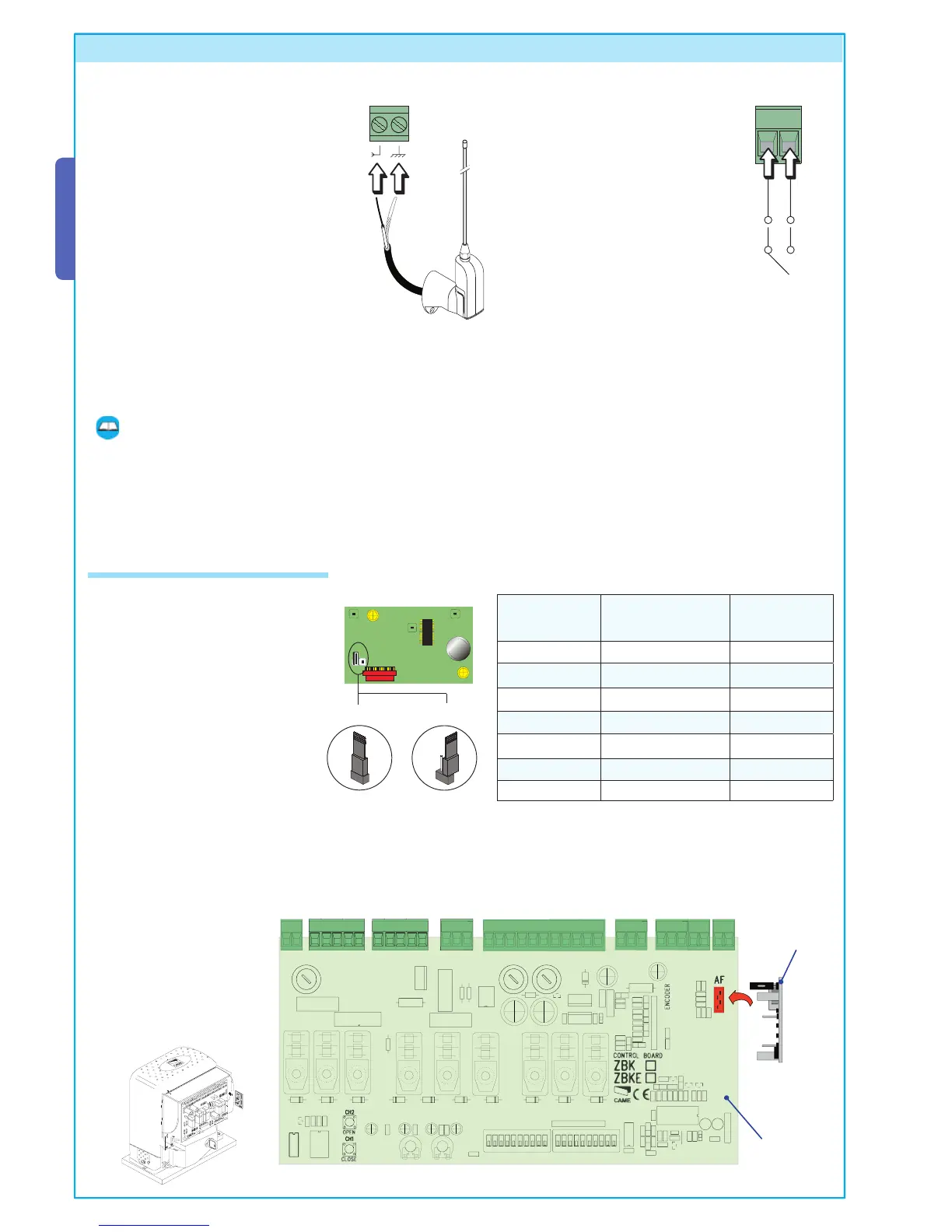

9.1 Prepare the radio board AF
9 Installation procedure of the transmitter for remote control
Read the three steps below before beginning installation procedures:
- prepare the radio board (paragraph 9.1);
- procedure for codifying the transmitter (paragraph 9.2);
- memorizing the code on the command board (paragraph 9.3).
Radio board AF
Motherboard
TOP TAM
2) The AF board must ALWAYS
be inserted into the coupling
(ref. point 5, page 8) when
the power is off because the
motherboard only recognises
it when it is powered.
Input for the remote control’s antenna
– For opening and closing of the gate
leaf using the remote control. Con-
nect the RG58 cable to the terminal of
the antenna with “AF” radio-frequen-
cy inserted in the motherboard.
Possible second channel
output from the radio receiver
(contact N.O.) Contact ou-
tput: 5A-24V (d.c.).
" "
Frequency/MHz Radiofrequecy board Transmitter
FM 26.995 AF130 TFM
FM 30.900 AF150 TFM
AM 26.995 AF26 TOP
AM 30.900 AF30 TOP
AM 433.92 AF43S / AF43SM TAM / TOP
AM 433.92 AF43SR ATOMO
AM 40.685 AF40 TOUCH
